Note
If no pole has been specified, the zero point of the current workpiece coordinate system applies.

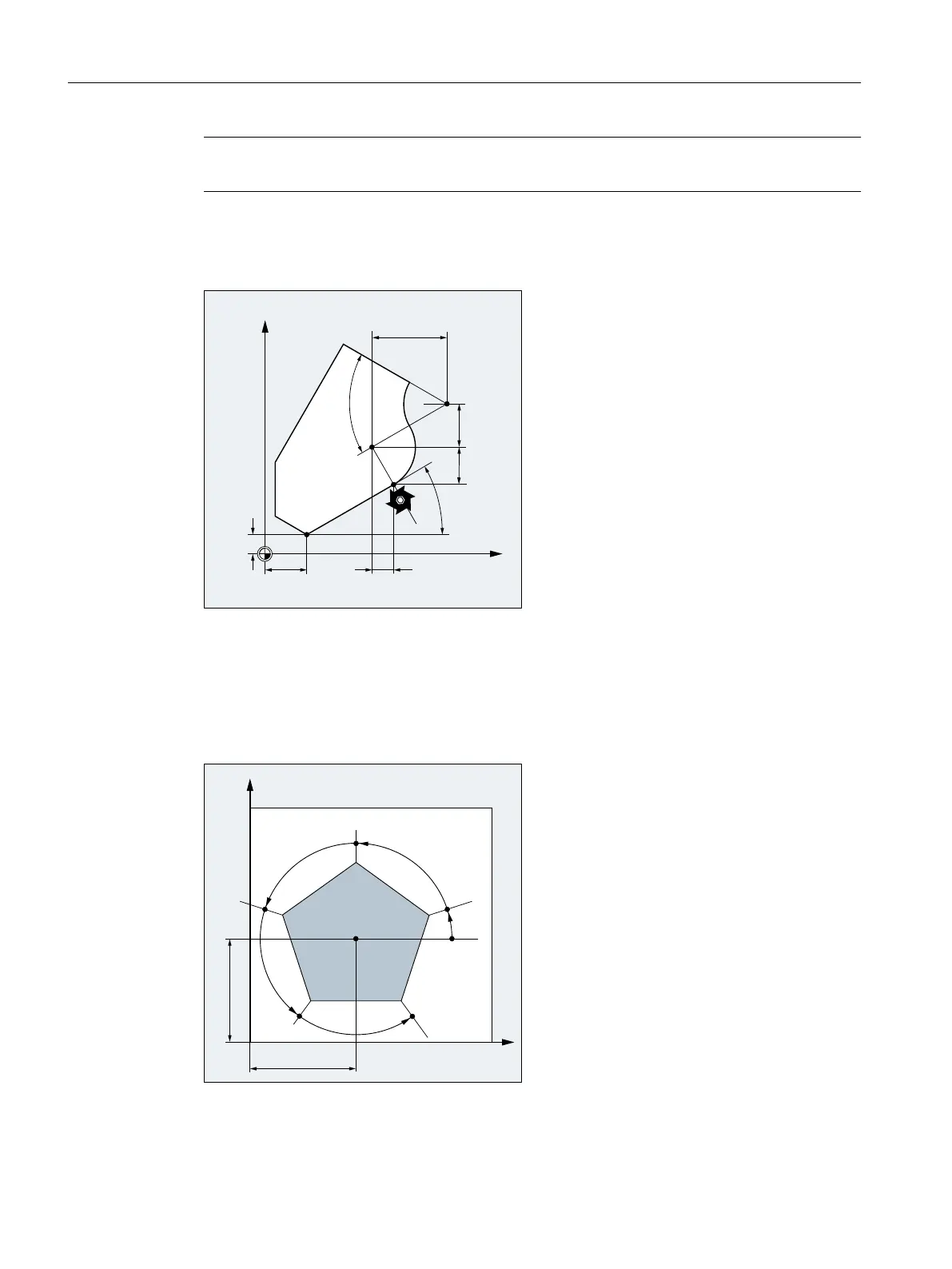

Example
3ROH
3ROH
3ROH
r
*;
*<
*;
*;
r
*<
*<
<
;
Poles 1 to 3 are defined as follows:
● Pole 1 with G111 X… Y…
● Pole 2 with G110 X… Y…
● Pole 3 with G112 X… Y…
2.9.3.2 Travel commands with polar coordinates (G0, G1, G2, G3, AP, RP)
Travel commands with polar coordinates are useful when the dimensions of a workpiece or part
of the workpiece are measured from a central point and the dimensions are specified in angles
and radii (e.g. for drilling patterns).
Q
P
r
r
r
r
r
<
;
Fundamentals
2.9 Motion commands
NC programming
174 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
