Example

Definitions

● Function number: 1

● Lower and upper limit value: -100, 100

● Gradient of the characteristic: a

= 1

● The operating point should be located at the center of the characteristic. Based on the

setpoint position of axis XA in the WCS at the instant that the function is defined in the NC

program, the characteristic must be shifted in the negative Y direction: a

= -a

* XA

= -1 *

$AA_IW

● a

= a

= 0

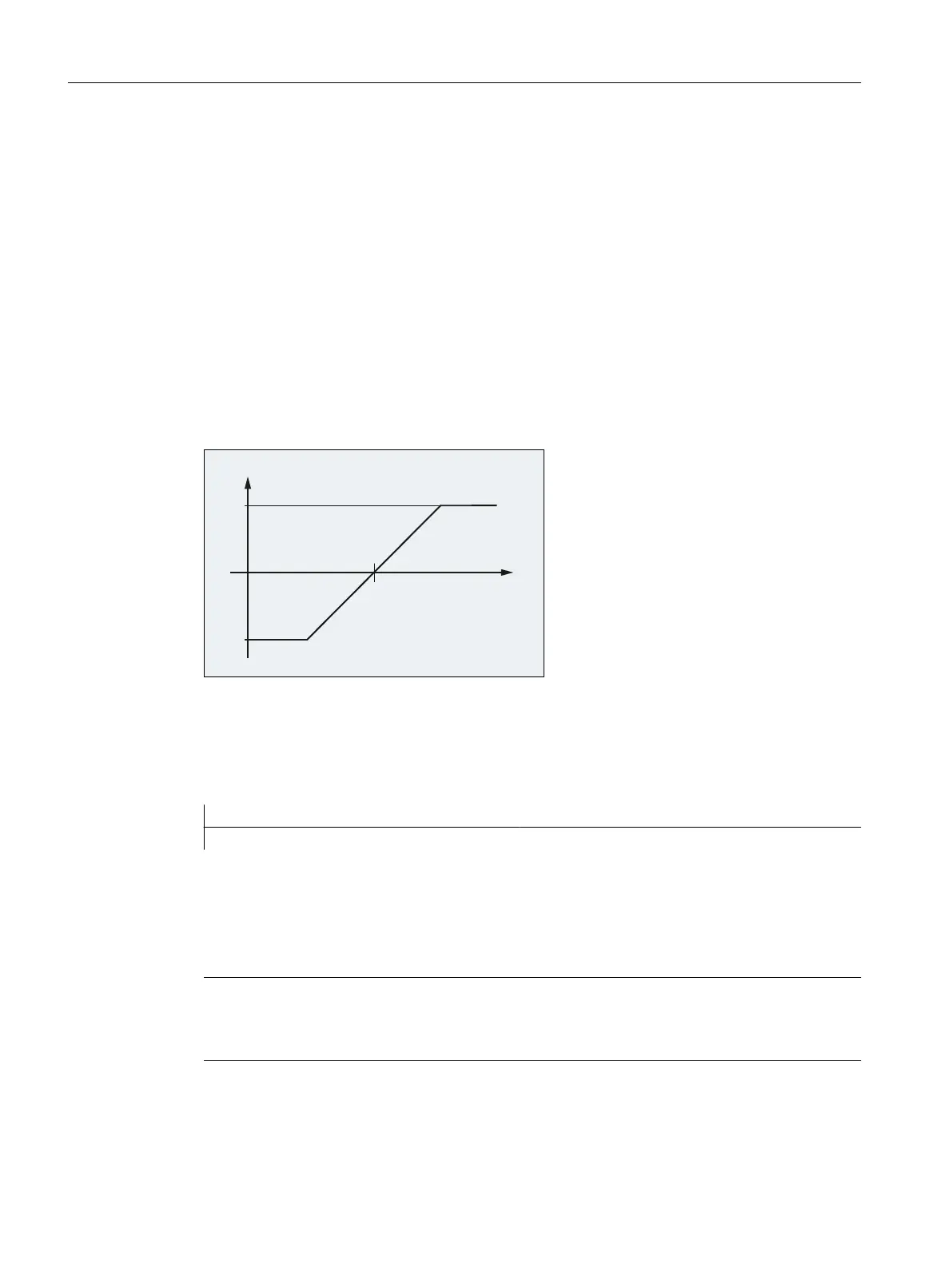

Characteristic

UL Upper limit value

LL Lower limit value

Setpoint of axis XA at the time that the function is defined in the NC program

Programming

Program code Comment

FCTDEF(1,-100,100,-$AA_IW[XA],1) ; Function definition

3.13.4.2 Write online tool offset continuously (PUTFTOCF)

Using the predefined procedure PUTFTOCF(...), an online tool offset is executed based on a

polynomial function previously defined with FCTDEF(...) (Page 751).

Note

The online tool offset can also be realized using a synchronized action.

For further information, see Function Manual Synchronized Actions.

Work preparation

3.13 Tool offsets

NC programming

752 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
