3.9.11.6 Example 3: PTPG0 and TRANSMIT

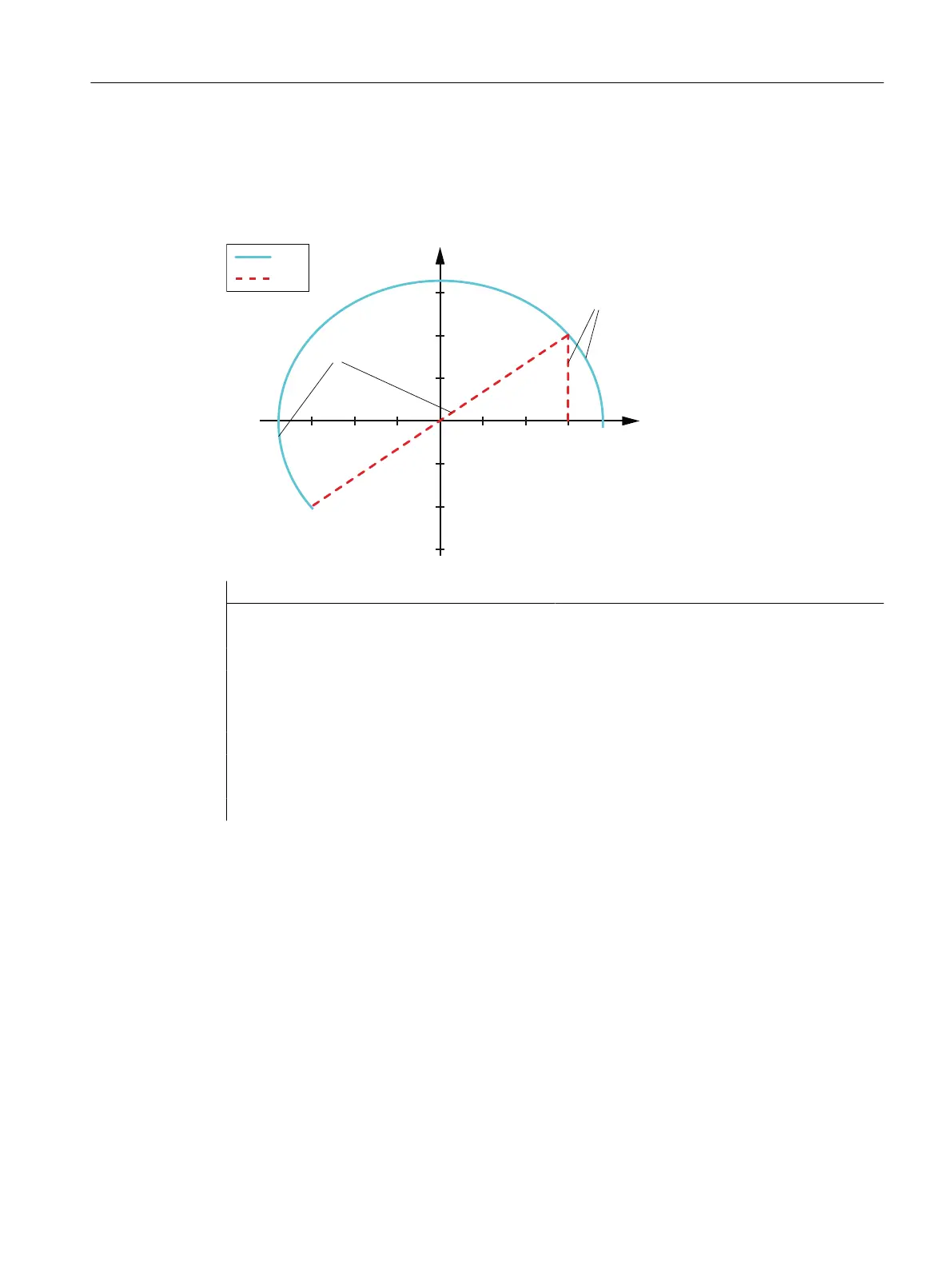

Traversing around the pole with PTPG0 and TRANSMIT
1;<
1*;<
<
;










PTP
CP
Program code Comment
N001 G0 X30 Z0 F10000 T1 D1 G90 ;Initial setting absolute dimension
N002 SPOS=0
N003 TRANSMIT ;TRANSMIT transformation
N010 PTPG0 ; for each G0 block, automatically PTP –
and then CP again.
N020 G0 X30 Y20
N030 X-30 Y-20
N120 G1 X30 Y20
N110 X30 Y0
M30
