If the tangent of the previous block does not lie in the active plane, its projection into the active

plane is used.

If the start and end points do not have the same position components perpendicular to the

active plane, a helix is produced instead of a circle.

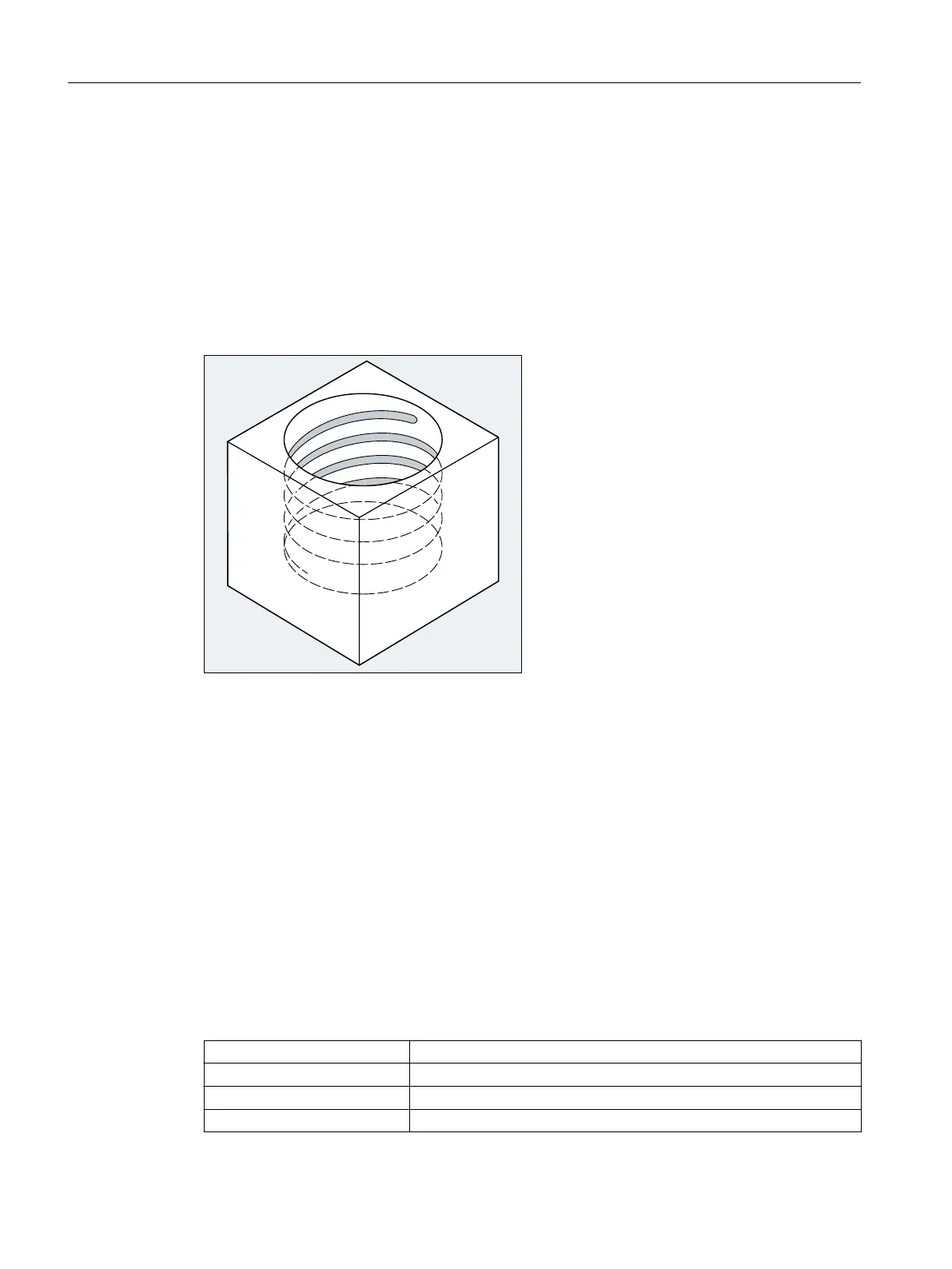

2.9.7 Helical interpolation (G2/G3, TURN)

The helical interpolation enables, for example, the production of threads or oil grooves.

With helical interpolation, two motions are superimposed and executed in parallel:

● A plane circular motion on which

● A vertical linear motion is superimposed.

Syntax

G2/G3 X… Y… Z… I… J… K… TURN=

G2/G3 AR=… I… J… K… TURN=

G2/G3 AR=… X… Y… Z… TURN=

G2/G3 AP… RP=… TURN=

Meaning

G2: Travel on a circular path in clockwise direction

G3: Travel on a circular path in counter-clockwise direction

X Y Z : End point in Cartesian coordinates

I J K : Circle center point in Cartesian coordinates

Fundamentals

2.9 Motion commands

NC programming

204 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
