Siemens SINUMERIK 840D sl Programming Manual

Absolute
pressure=...
Recipe
procedure=... :

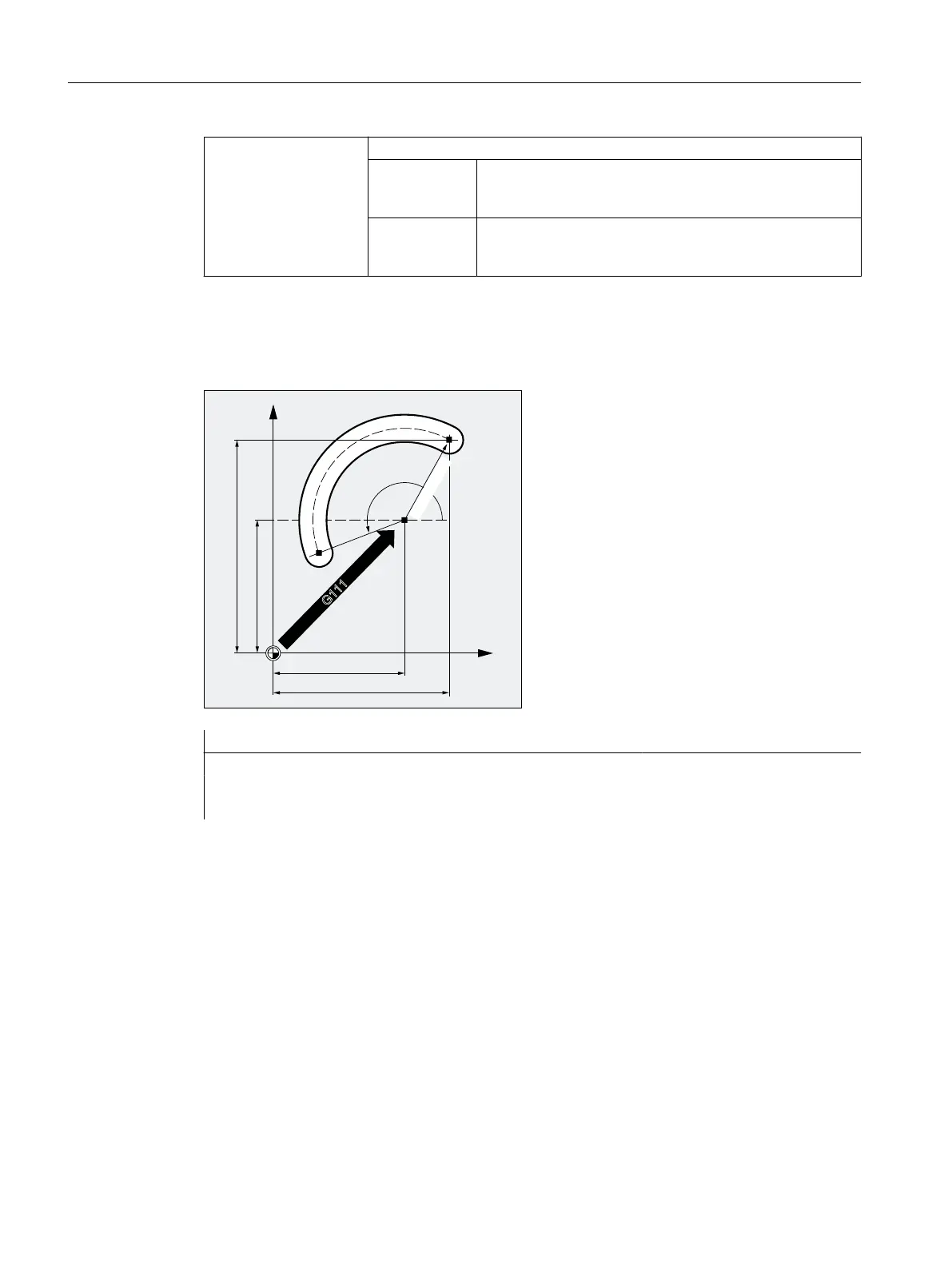

Circle end point in polar coordinates.
Absolute
pressure=..
. :
Polar angle
Recipe
procedure=.
.. :
Polar radius (≙ circle radius)
Examples
Example 1: Milling
*




53 
<
;
$
3







r
Program code
N10 G0 X67.5 Y80.211
N20 G111 X50 Y50
N30 G3 RP=34.913 AP=200.052 F500
Fundamentals
2.9 Motion commands
NC programming
196 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
