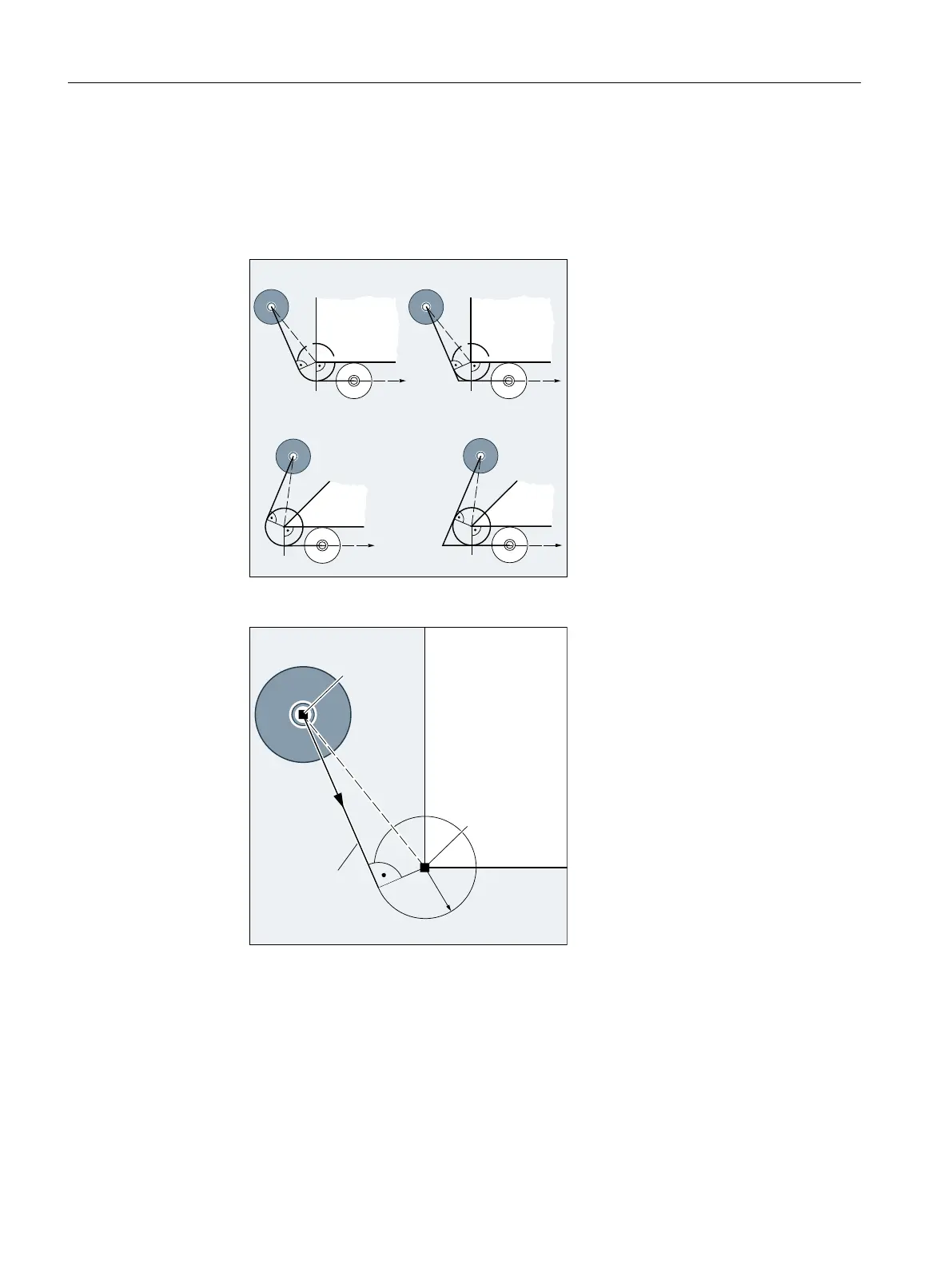

– Approach:
The tool travels around the starting point either along a circular path or over the
intersection of the equidistant paths depending on the programmed corner behavior
(G450/G451).
The commands G450/G451 apply to the transition from the current block to the next
block:
*
**
*
In both cases (G450/G451), the following approach path is generated:
$SSURDFK
SRLQW
$SSURDFKSDWK
6WDUWLQJSRLQW
7RROUDGLXV
A straight line is drawn from the uncompensated approach point. This line is a tangent
to a circle with circle radius = tool radius. The center point of the circle is on the starting
point.
– Retraction:
The same applies to retraction as to approach, but in the reverse order.
Approach/retraction with KONTC
Fundamentals
2.10 Tool radius compensation
NC programming
266 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
