Siemens SINUMERIK 840D sl Programming Manual

FELD[n,m,o] = 1
ENDFOR
ENDFOR
ENDFOR
Example: Initializing complete variable arrays

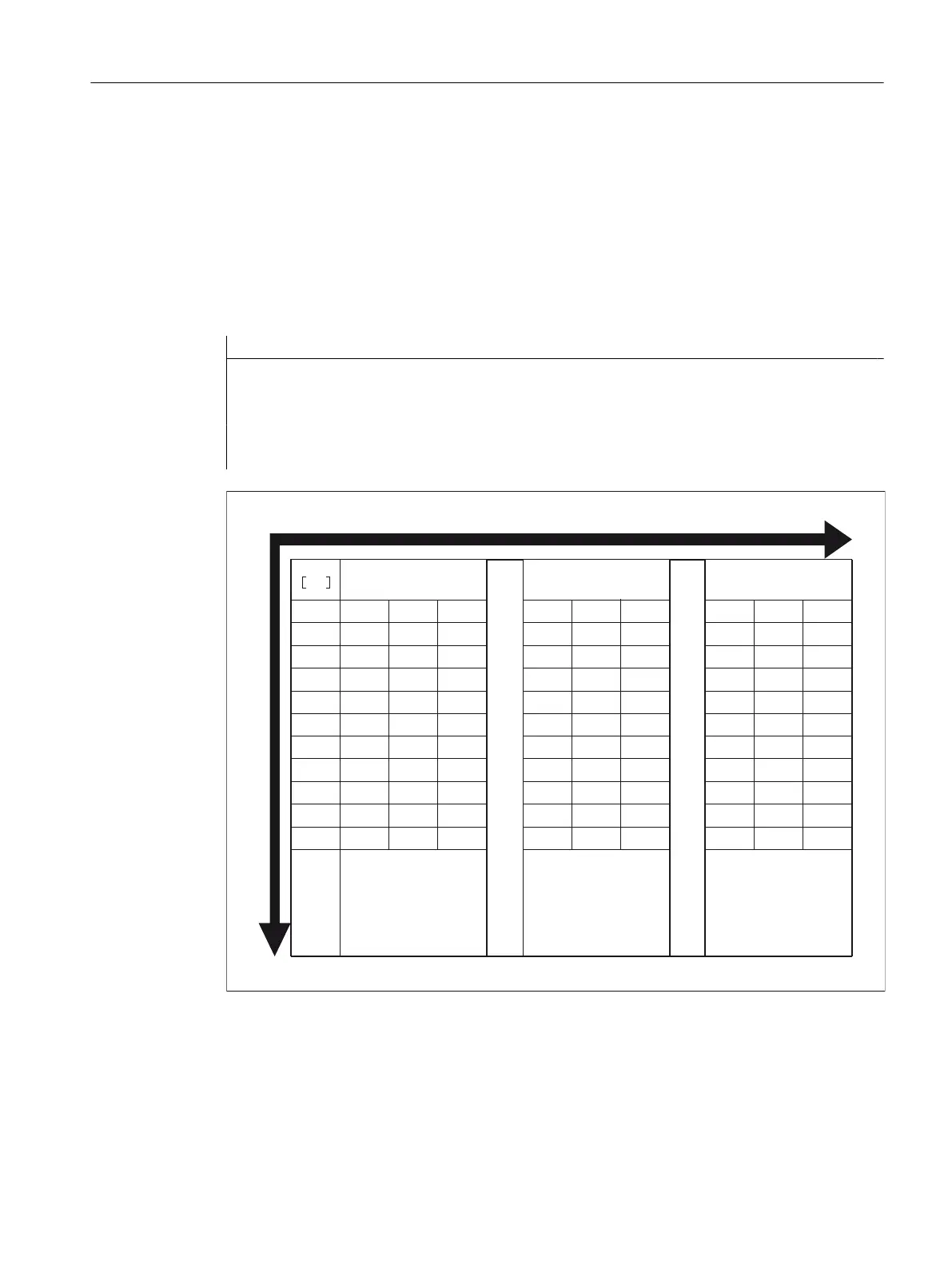

For the actual assignment, refer to the diagram.
Program code
N10 DEF REAL FELD1[10,3]=SET(0,0,0,10,11,12,20,20,20,30,30,30,40,40,40,)
N20 ARRAY1[0,0] = REP(100)
N30 ARRAY1[5,0] = REP(-100)
N40 FELD1[0,0]=SET(0,1,2,-10,-11,-12,-20,-20,-20,-30, , , ,-40,-40,-50,-60,-70)
N50 FELD1[8,1]=SET(8.1,8.2,9.0,9.1,9.2)


1













































































































11
$UUD\LQGH[
7KHDUUD\HOHPHQWV>@WR
>@KDYHEHHQLQLWLDOL]HG
ZLWKWKHGHIDXOWYDOXH
7KHDUUD\HOHPHQWV>@WR
>@KDYHQRWEHHQFKDQJHG
7KHDUUD\HOHPHQWV>@WR
>@KDYHEHHQLQLWLDOL]HG
ZLWKWKHGHIDXOWYDOXH
,QLWLDOL]DWLRQIRU
GHILQLWLRQ

,QLWLDOL]DWLRQZLWK
LGHQWLFDOYDOXH
11,QLWLDOL]DWLRQZLWK
YDULRXVYDOXHV
See also
Definition and initialization of array variables (DEF, SET, REP) (Page 417)
Variables (Page 389)
Work preparation
3.1 Flexible NC programming
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 421
