Siemens SINUMERIK 840D Function Manual

Detailed description
2.3 Starting up hardware configuration of PLC CPUs
Basic logic functions: PLC Basic program powerline (P3 pl)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
21
Note
On the SINUMERIK 810D or 840D, SIMATIC subrack 0 is integrated in the NC. The
following components are plugged into this subrack:
- Slot 2: The integrated PLC (PLC 314 or PLC 315-2DP)
- Slot 3: An IM 360
- Slot 4: The FM NCU.
With PLC 314, NC software version 3.5 and higher, the FM NCU must also be defined if
further MPI (C bus) devices are included in subrack 1 to subrack 3 (e.g., FM modules with C
bus connection). The properties of the FM NCU must not be changed, as process interrupts
(e.g. auxiliary functions) of the NCU may, in this case, no longer function.

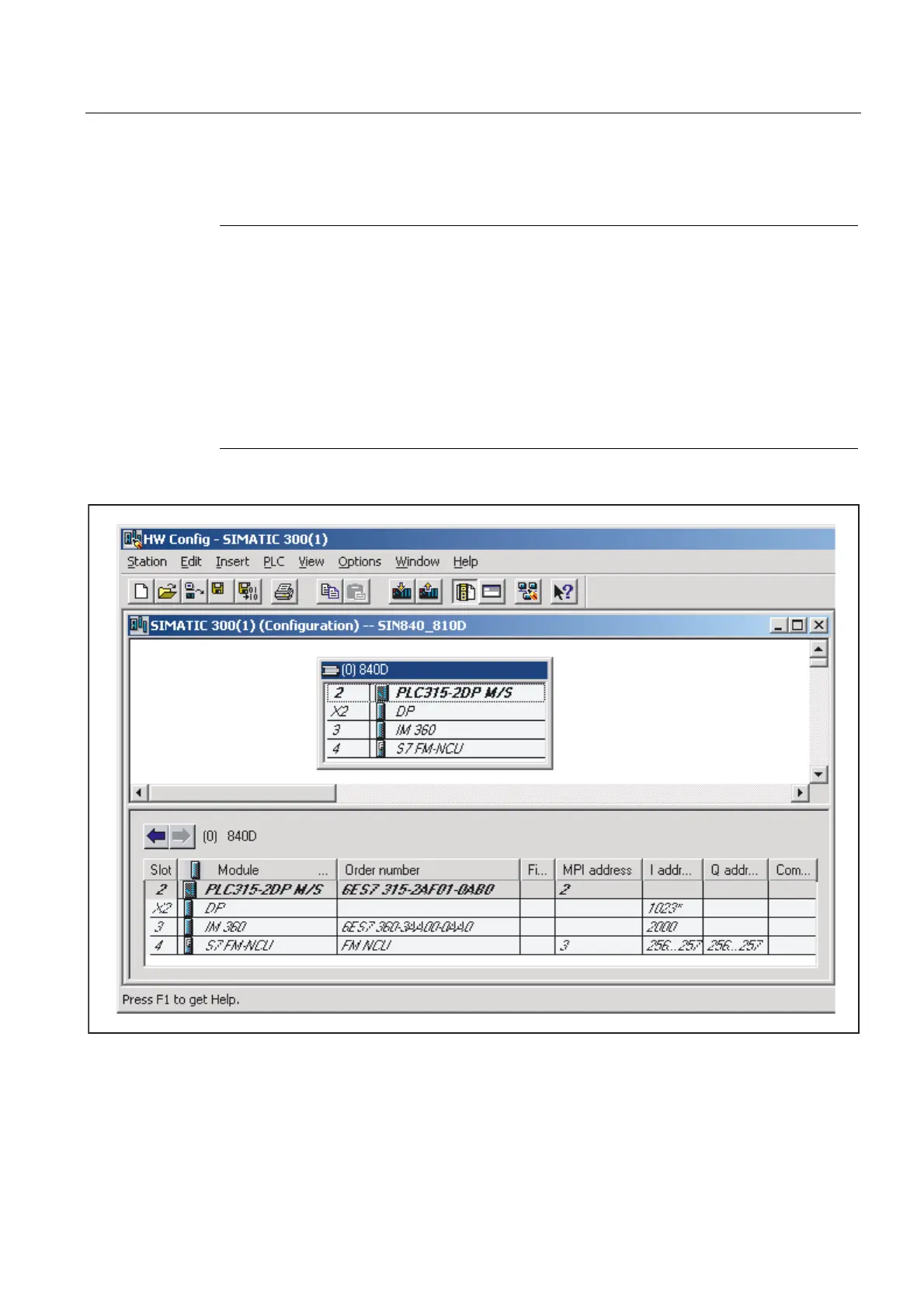

Figure 2-1 Hardware configuration of row 0 on 810D, 840D

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
