Examples

4.3 Acceleration and jerk

Basic logic functions: Acceleration (B2)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

4.3 Acceleration and jerk

Key statement

In the following example a short part program is used to illustrate the velocity and

acceleration characteristic for the X-axis. It also shows the connection between specific

velocity and acceleration-related machine data and the contour sections they influence.

Part program

N90 F5000 SOFT G64

; Continuous-path mode, acceleration with jerk limitation

N100 G0 X0 Y0 Z0

; Rapid traverse

N110 G1 X10

;Straight line

N120 G3 CR=5 X15 Y5

; Circular arc, radius 5 mm, block transition: tangential

N130 G3 CR=10 X5 Y15

; Circular arc, radius 10 mm, block transition: tangential

N140 G1 X-5 Y17.679

; straight, 15

bend

N200 M30









[



1

1

1

1

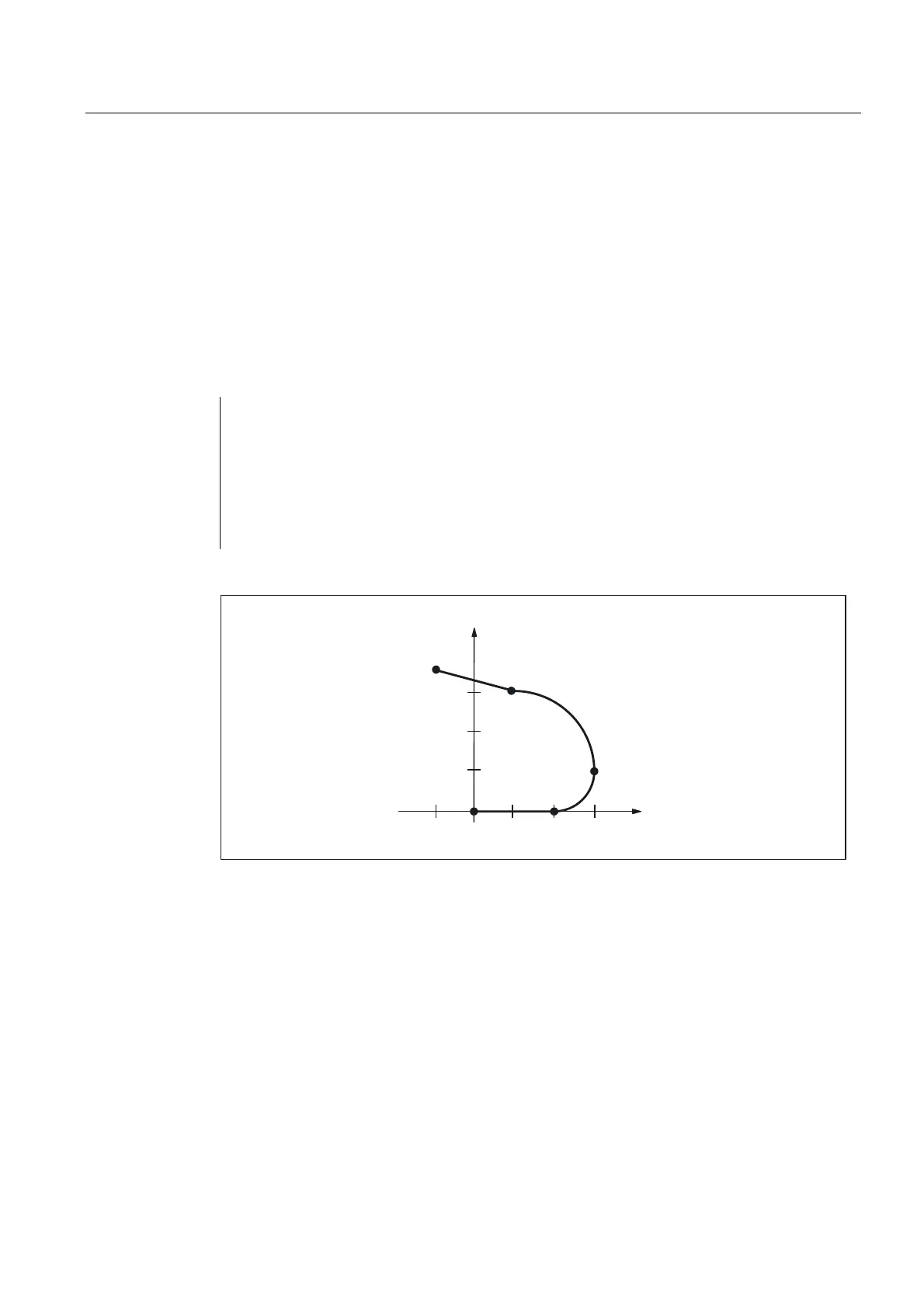

Figure 4-3 Part program contour
