Siemens SINUMERIK 840D Function Manual

Detailed description
2.3 Coordinate systems
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
49
2.3.6 Settable zero system (SZS)
Settable zero system (SZS)
The "settable zero system" (SZS) is the workpiece coordinate system WCS with a
programmable frame (viewed from the perspective of the WCS). The workpiece zero is
defined by the settable FRAMES G54 to G599.
**
;
=
<
;
<
=
6HWWDEOH]HURV\VWHP6=6
%DVLF]HURV\VWHP%=6

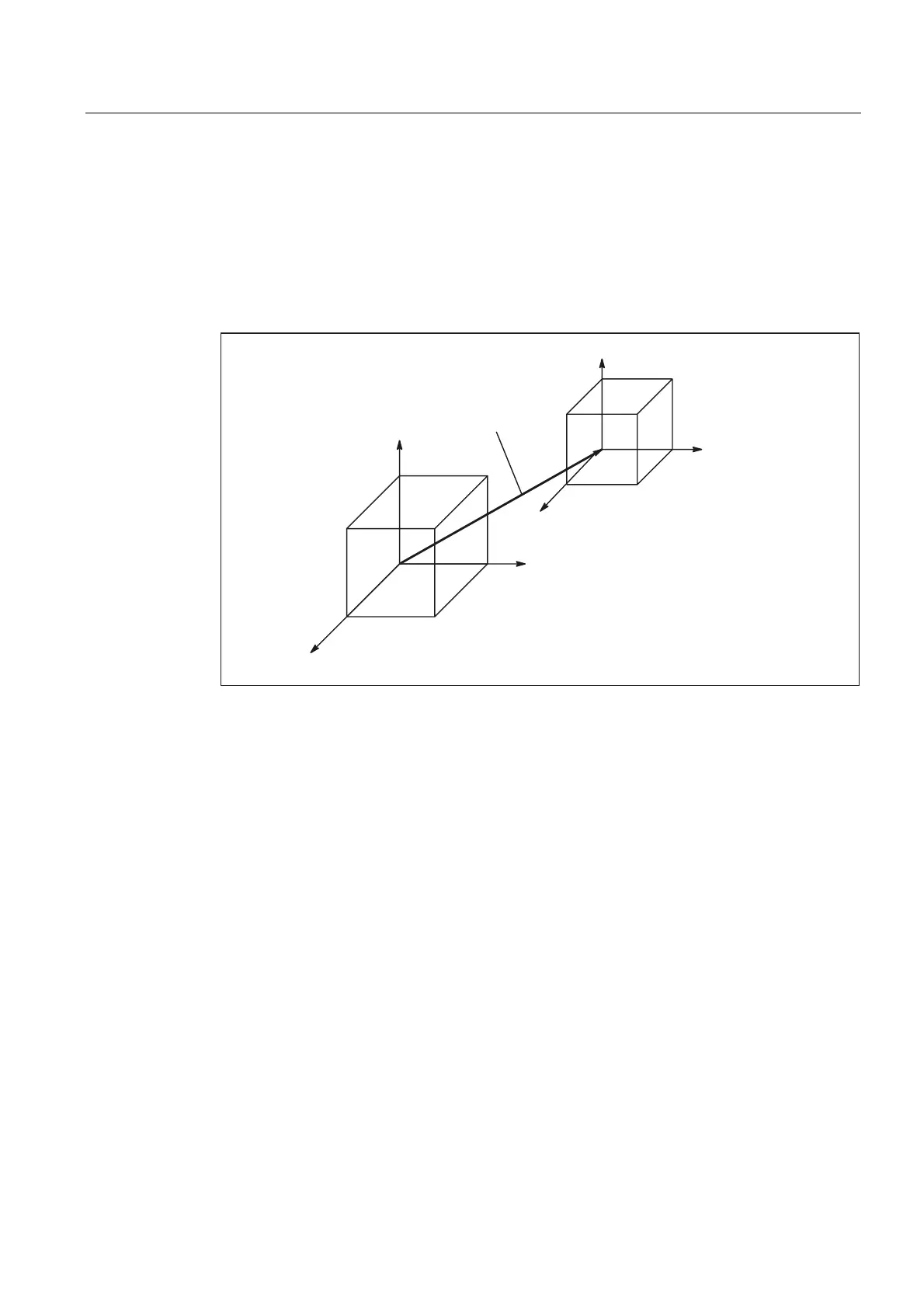

Figure 2-20 Settable FRAME G54 ... G599 between BNS and ENS
Programmable offsets act on the "settable zero system". All programmable offsets refer to
the "settable zero system".

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
