Detailed description

2.3 Setpoint /actual-value system

Basic logic functions: Velocities, Setpoint/Actual Value Systems, Closed-Loop Control (G2)

32 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

2.3 Setpoint/actual-value system

2.3.1 General

Control loop

A control loop with the following structure can be configured for every closed-loop controlled

axis/spindle:

&75/287B7<3( 6,08/$7,21

(1&B7<3( 6,08/$7,21

180B(1&6

&ORVHG

ORRS

FRQWURO

6SHHGVHWSRLQW

RXWSXW

6SHHG

VHWSRLQW

URXWLQJ

$FWXDOYDOXH

SURFHVVLQJ

$FWXDO

YDOXH

URXWLQJ

,)&SRVLWLRQ

PHDVXULQJ

V\VWHP

$FWXDOYDOXH

SURFHVVLQJ

0RWRU

(QFRGHU

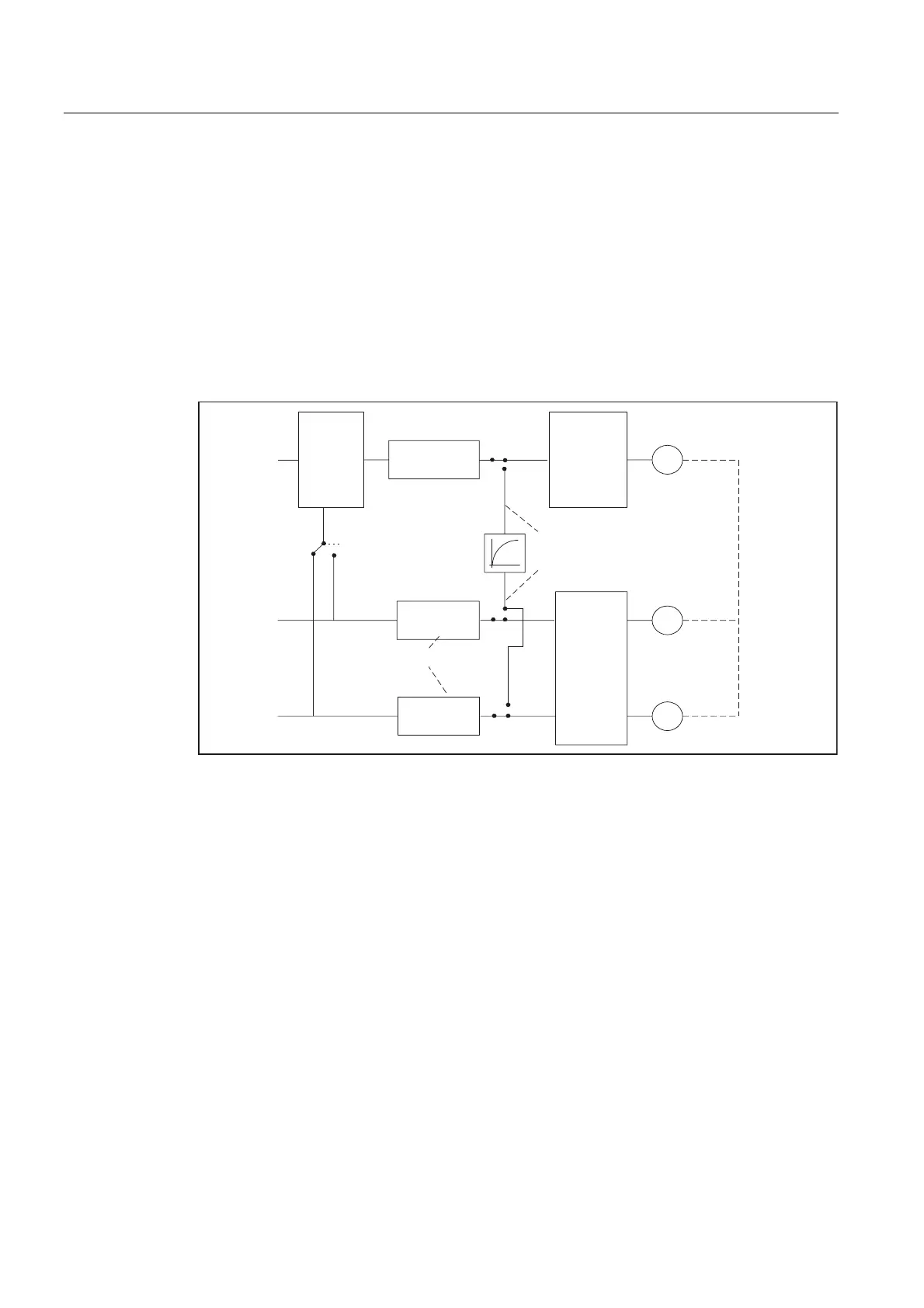

Figure 2-1 Block diagram of a control loop

Setpoint output

A setpoint can be output for each axis/spindle. Setpoints are output digitally to the actuator

on SINUMERIK 840D/810D.
