2.3 Coordinate systems

Basic logic functions: Axes, coordinate systems, frames (K2)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

2.3.5 Basic zero system (BZS)

Basic zero system (BZS)

The basic zero system (BZS) is the basic coordinate system with a basic offset.

;

=

<

;

<

=

%DVLFFRRUGLQDWHV\VWHP%&6

%DVLF]HURV\VWHP%=6

%DVLFRIIVHW

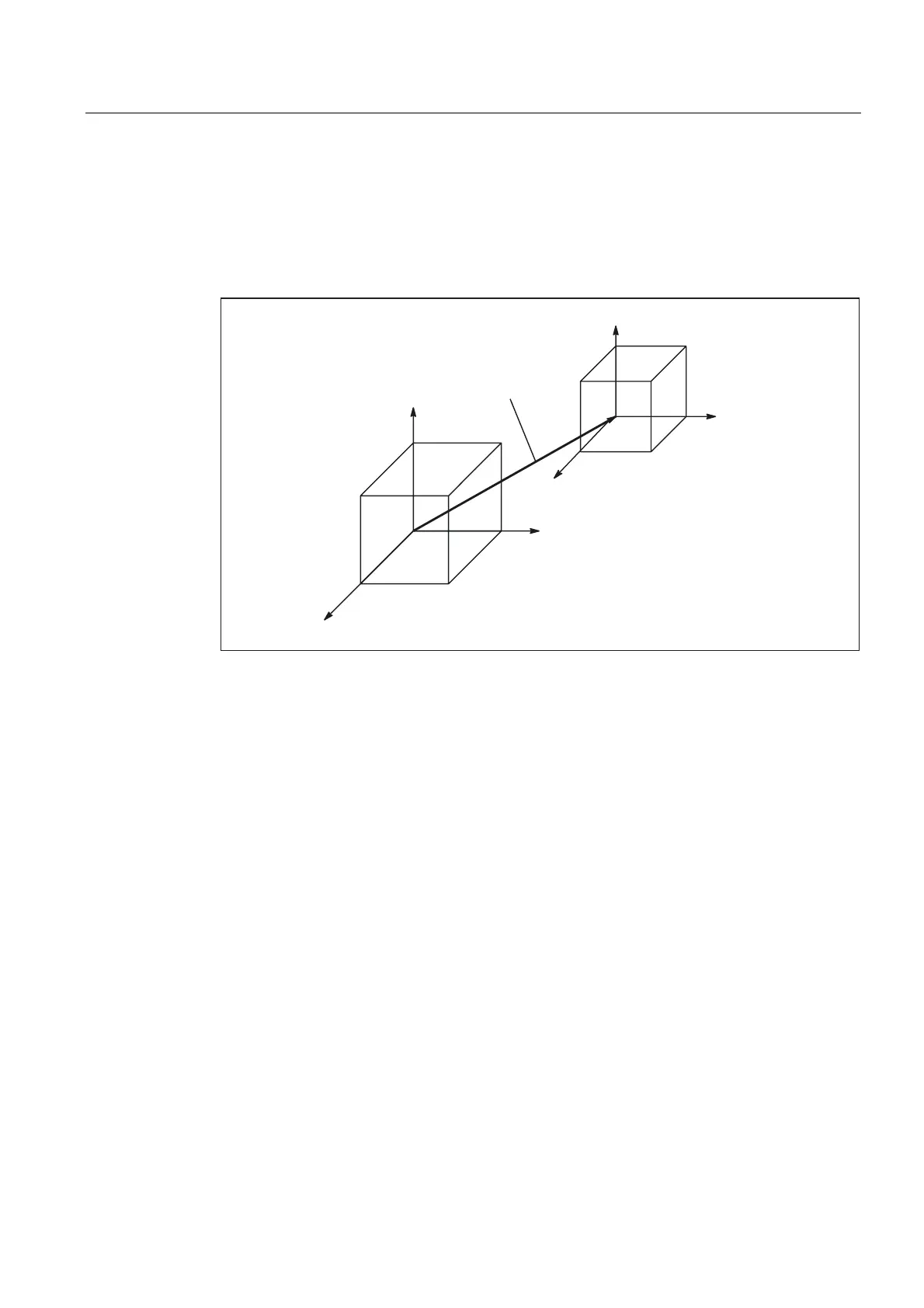

Figure 2-18 Basic offset between BCS and BZS

Basic offset

The basic offset describes the coordinate transformation between BCS and BZS. It can be

used, for example, to define the palette window zero.

The basic offset comprises:

• Zero offset external

• DRF offset

• Superimposed motion

• Chained system frames

• Chained basic frames
