Detailed Description
2.6 Spindle monitoring
Basic logic functions: Spindles (S1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
85
2.6 Spindle monitoring
2.6.1 Speed ranges
Permissible speed ranges for the spindle
The spindle monitoring functions and the currently active functions (G94, G95, G96,
G961, G97, G971, G33, G34, G35, G331, G332, etc.) define the permissible speed
ranges of the spindle.
6SLQGOHVSHHG
0D[LPXPHQFRGHUOLPLWIUHTXHQF\
0D[LPXPVSLQGOHVSHHG
0LQLPXPVSLQGOHVSHHGIRUFXUUHQWJHDUVWHS
,6$[LV6SLQGOHVWDWLRQDU\QQPLQ
6SHHGUDQJHRIVSLQGOH
RUVSLQGOHFKXFN
0D[LPXPVSLQGOHVSHHGIRUFXUUHQWJHDUVWHS
3URJUDPPDEOHVSLQGOHVSHHGOLPLW/,06
3URJUDPPDEOHPLQLPXPVSLQGOHVSHHG*
6SHHGUDQJHRIFXUUHQWJHDUVWHS
6SHHGUDQJHRIFXUUHQWJHDUVWHS
OLPLWHGE\*DQG*
6SHHGUDQJHRIFXUUHQWJHDUVWHSDW
FRQVWDQWFXWWLQJUDWH**DQG*
,6+RPHG6\QFKURQL]HG
6SLQGOHLVVWDWLRQDU\
3URJUDPPDEOHVSLQGOHVSHHGOLPLW*

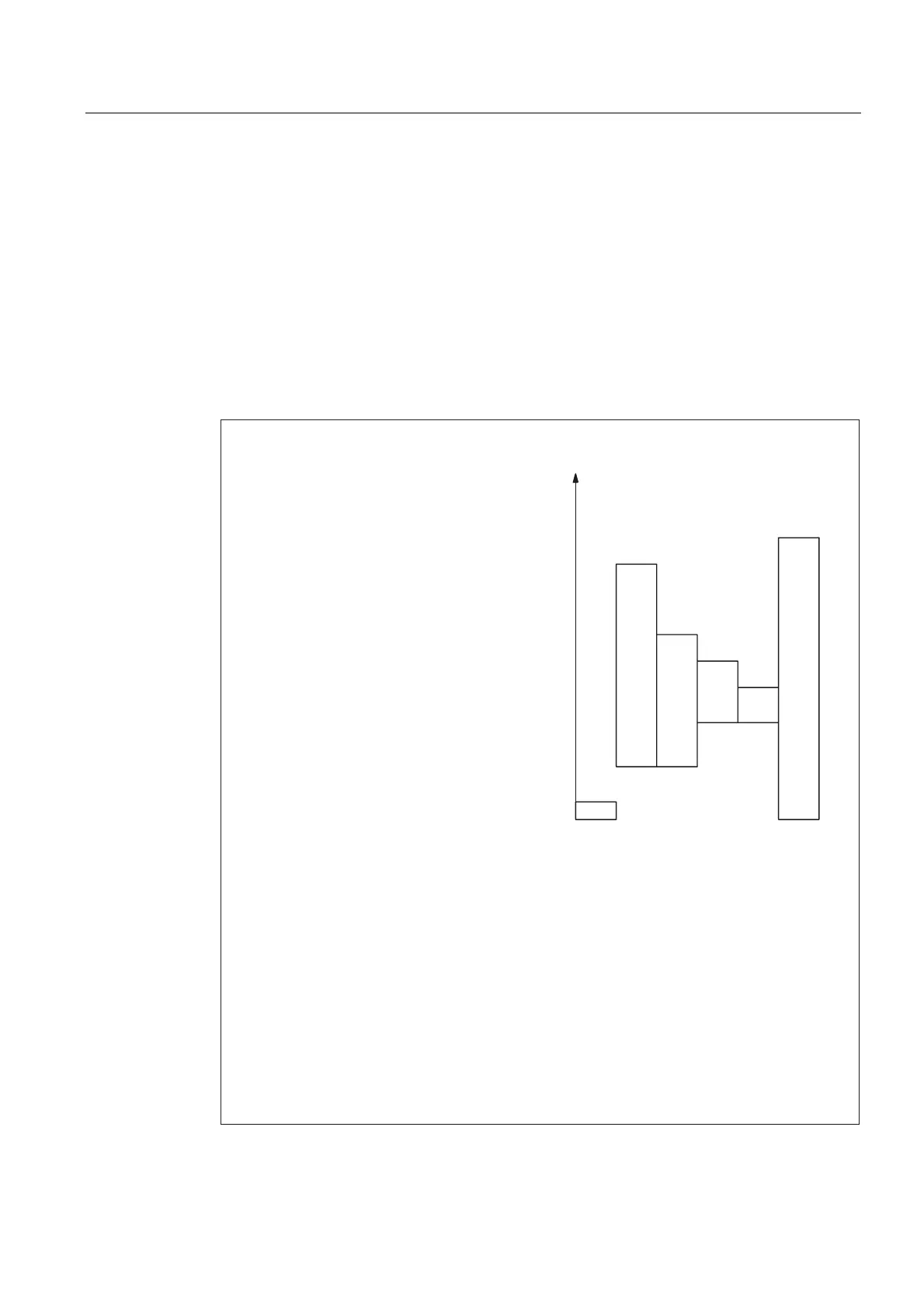

Figure 2-11 Ranges of spindle monitoring functions/speeds
