Brief description

1.3 Frames

Basic logic functions: Axes, coordinate systems, frames (K2)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

1.3 Frames

FRAME

A FRAME is a closed calculation rule that translates one Cartesian coordinate system into

another.

FRAME components

5RXJKRIIVHW

)LQHRIIVHW

5RWDWLRQ

6FDOLQJ

0LUURULQJ

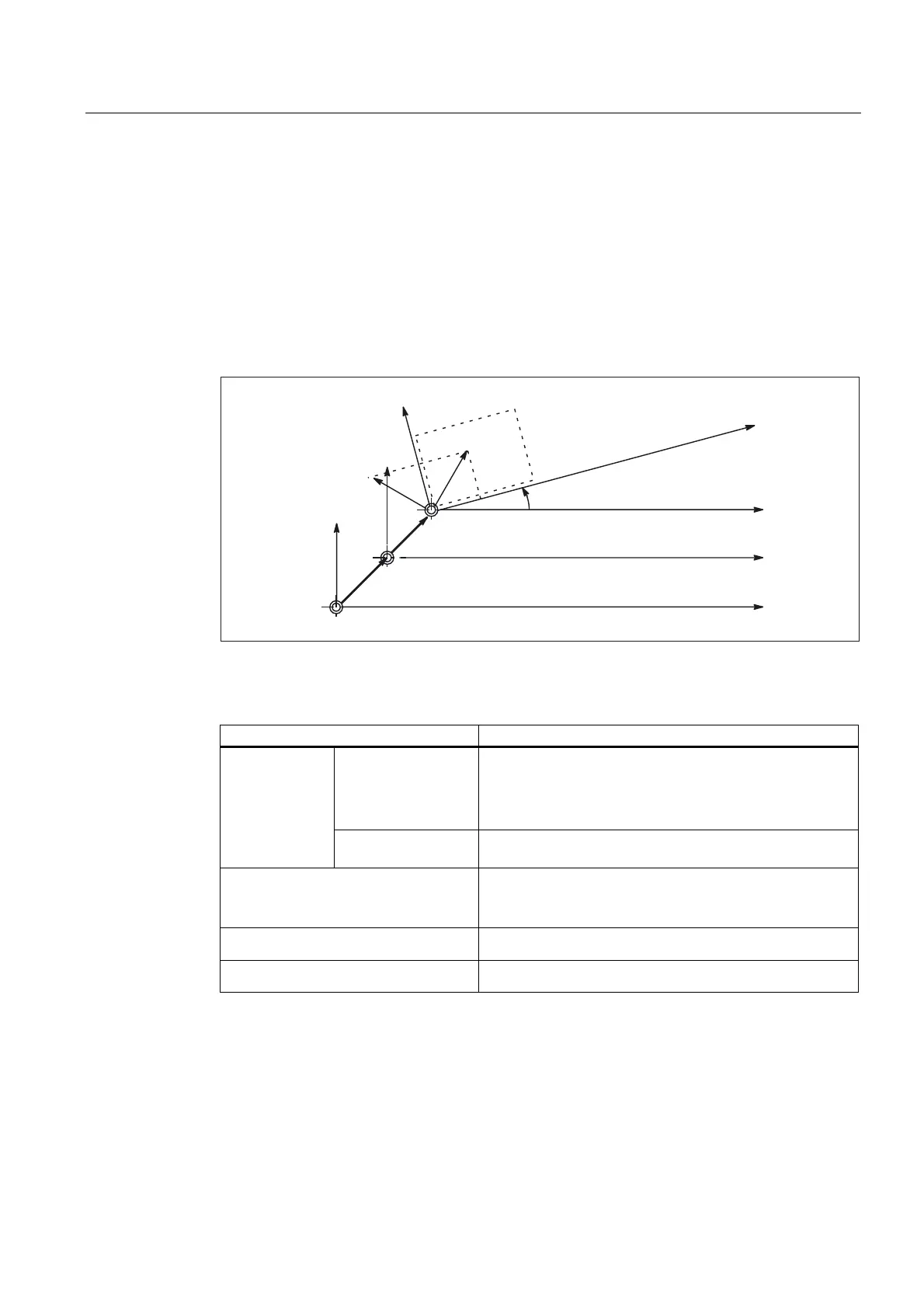

Figure 1-1 FRAME components

A FRAME consists of the following components:

FRAME components Programmable with:

Rough offset

TRANS

ATRANS (additive translation component)

CTRANS (zero offset for multiple axes)

G58 (axial zero offset)

Offset

Fine offset

CFINE

G59 (axial zero offset)

Rotation ROT / ROTS

AROT / AROTS

CROTS

Scaling

SCALE

ASCALE

Mirroring

MIRROR

AMIRROR

Features in relation to axes

The rough and fine offsets, scaling and mirroring can be programmed for geometry and

special axes. A rotation can also be programmed for geometry axes.
