Detailed description
2.4 Frames
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
59

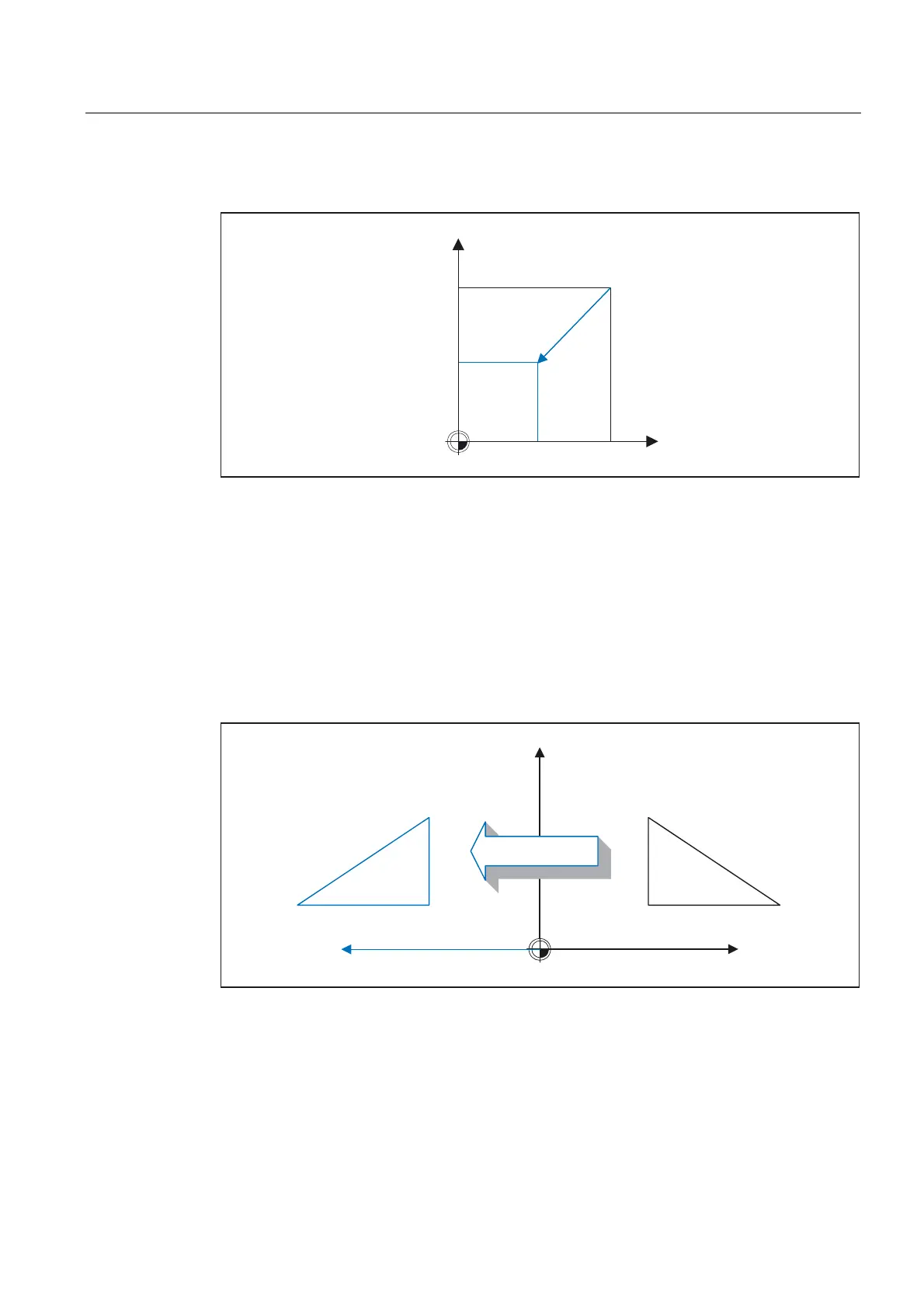

2.4.2.4 Scaling
\
[
6FDOLQJ
Programming
The program commands below are used to program the scaling:
$P_UIFR[1] = CSCALE(x,1,y,1)
SCALE x = 1y = 1
$P_UIFR[1,x,sc] = 1
2.4.2.5 Mirroring
[
\
0LUURULQJ
Programming
The program commands below are used to program a mirroring:
$P_UIFR[1] = CMIRROR(x,1,y,1)
MIRROR x = 1y = 1
$P_UIFR[1,x,mi] = 1
