2.4 Tool radius compensation 2D (TRC)
Basic logic functions: Tool Offset (W1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
79
2.4.7 Compensation at inside corners
Intersection
If two consecutive blocks form an inside corner, an attempt is made to find a point at which
the two equidistant paths intersect. If an intersection is found, the programmed contour is
shortened to the intersection (first block shortened at end, second block shortened at
beginning).
6KRUWHQHG
FRQWRXU
Figure 2-32 Example of a shortened contour
No intersection

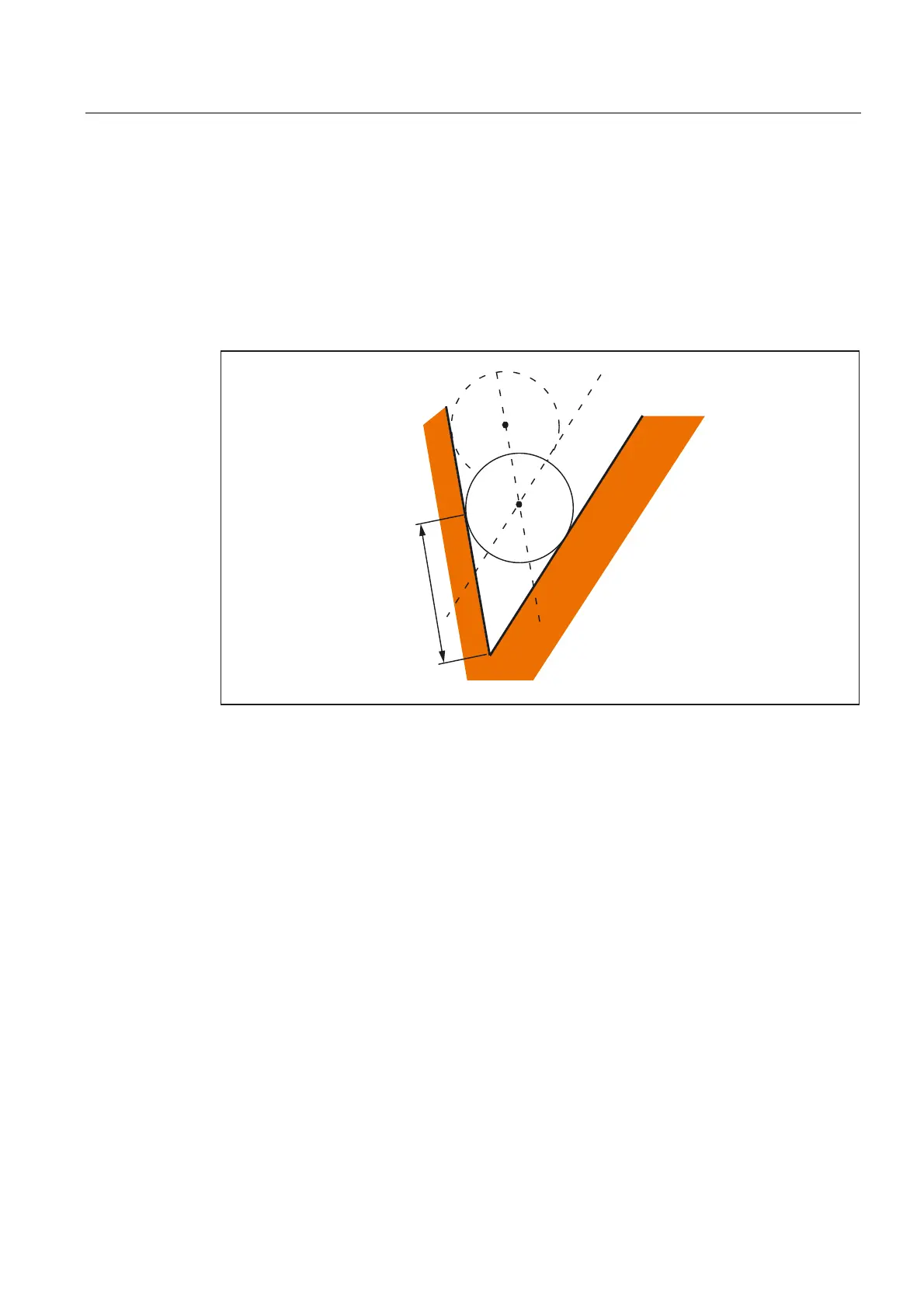

In certain cases, no intersection is found between two consecutive blocks for inside corners
(see figure below).
