Detailed description

2.12 Block descriptions

Basic logic functions: PLC Basic program powerline (P3 pl)

210 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

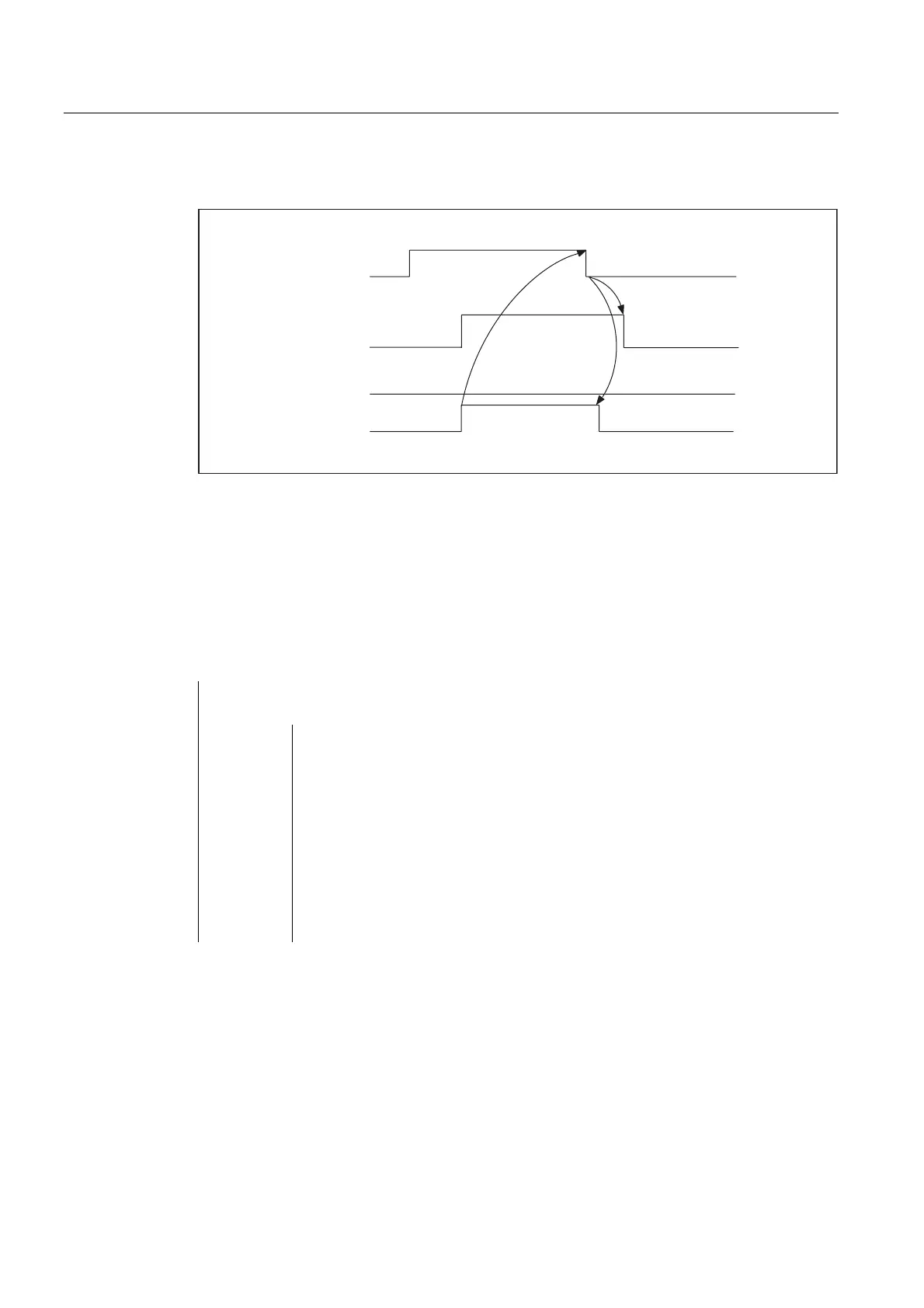

Timing diagram (fault scenario)

6WDUW(UU

(UURU

6WDUW

,Q3RV

$FWLY









(1) Activation of function by means of a positive edge

(2) Negative acknowledgment: Error has occurred

(3) Reset function activation after receipt of acknowledgment

(4) Signal change using FC

Call example

CALL FC 15 (

Start := TRUE,

AxisNo :=

IC :=

#incr, //e.g., local variable

Inch :=

FALSE,

HWheelOv :=

FALSE,

Pos :=

MD160,

FRate :=

MD164,

InPos :=

Q 36.0,

Active :=

Q 36.1,

StartErr :=

Q 36.2,

Error :=

Q 36.3);
