Siemens SINUMERIK 840D Function Manual

Detailed description
2.3 Setpoint /actual-value system
Basic logic functions: Velocities, Setpoint/Actual Value Systems, Closed-Loop Control (G2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
55
Linear axis with rotary encoder on the machine
,6B527B$; 
Q
Q
'5,9(B(1&B5$7,2B180(5$
'5,9(B(1&B5$7,2B'(120
/($'6&5(:B3,7&+
(1&B,6B',5(&7 
(1&B5(62/
(1&B,6B/,1($5 
*
0
1RRIVSLQGOHUHYV
1RRIHQFRGHUUHYV
/RDG
JHDU
6SLQGOH
0HDV
JHDU
%DOOVFUHZ

7DEOH
(QFRGHU

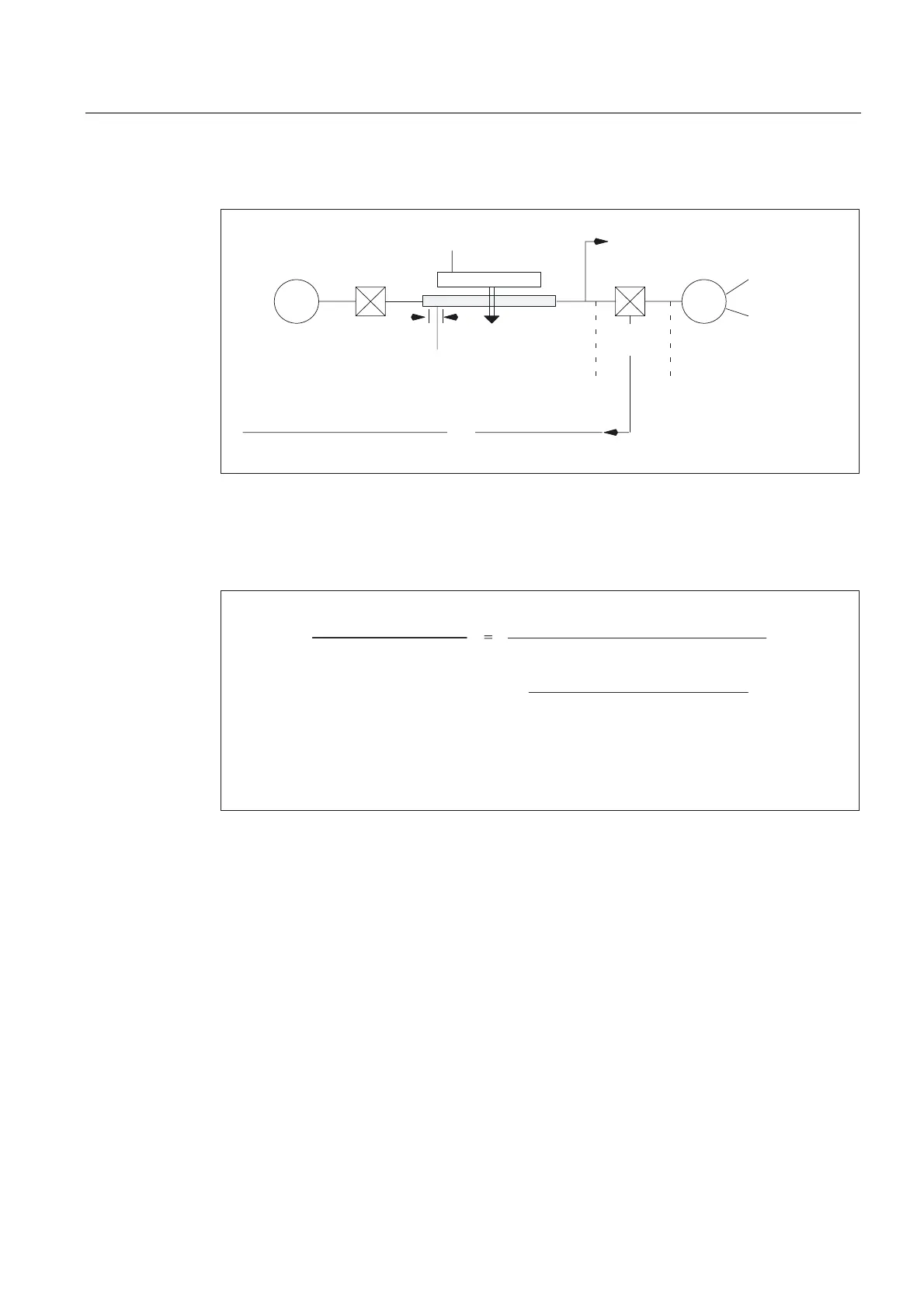

Figure 2-8 Linear axis with rotary encoder on the machine
In order to adapt the actual-value resolution to the calculation resolution, the control
calculates the quotients from the "internal increments/mm" and the "encoder increments/mm"
as follows:

'5,9(B(1&B5$7,2B180(5$>Q@
,17B,1&5B3(5B00
/($'6&5(:B3,7&+


'5,9(B(1&B5$7,2B'(120>Q@

,QWHUQDOLQFUHPHQWVPP
(QFRGHULQFUHPHQWVPP
(1&B5(62/>Q@LQWHUQDOPXOWLSOLFDWLRQ

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
