Detailed description

2.3 Type -specific output behavior

Basic logic functions: Auxiliary Function Output to PLC (H2)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

Example

Output of auxiliary functions with different output behaviors in a part program block with

traverse movement.

Parameterized output behavior

• T function: Output before the motion

MD22220 $MC_AUXFU_T_SYNC_TYPE = 0 (Output time of the T functions)

• M function: Output during the motion

MD22220 $MC_AUXFU_M_SYNC_TYPE = 1 (Output time of the M functions)

• H function: Output at the end of the block

MD22230 $MC_AUXFU_H_SYNC_TYPE = 2 (Output time of the H functions)

Parts program block

N10 G01 X100 M07 H5 T5

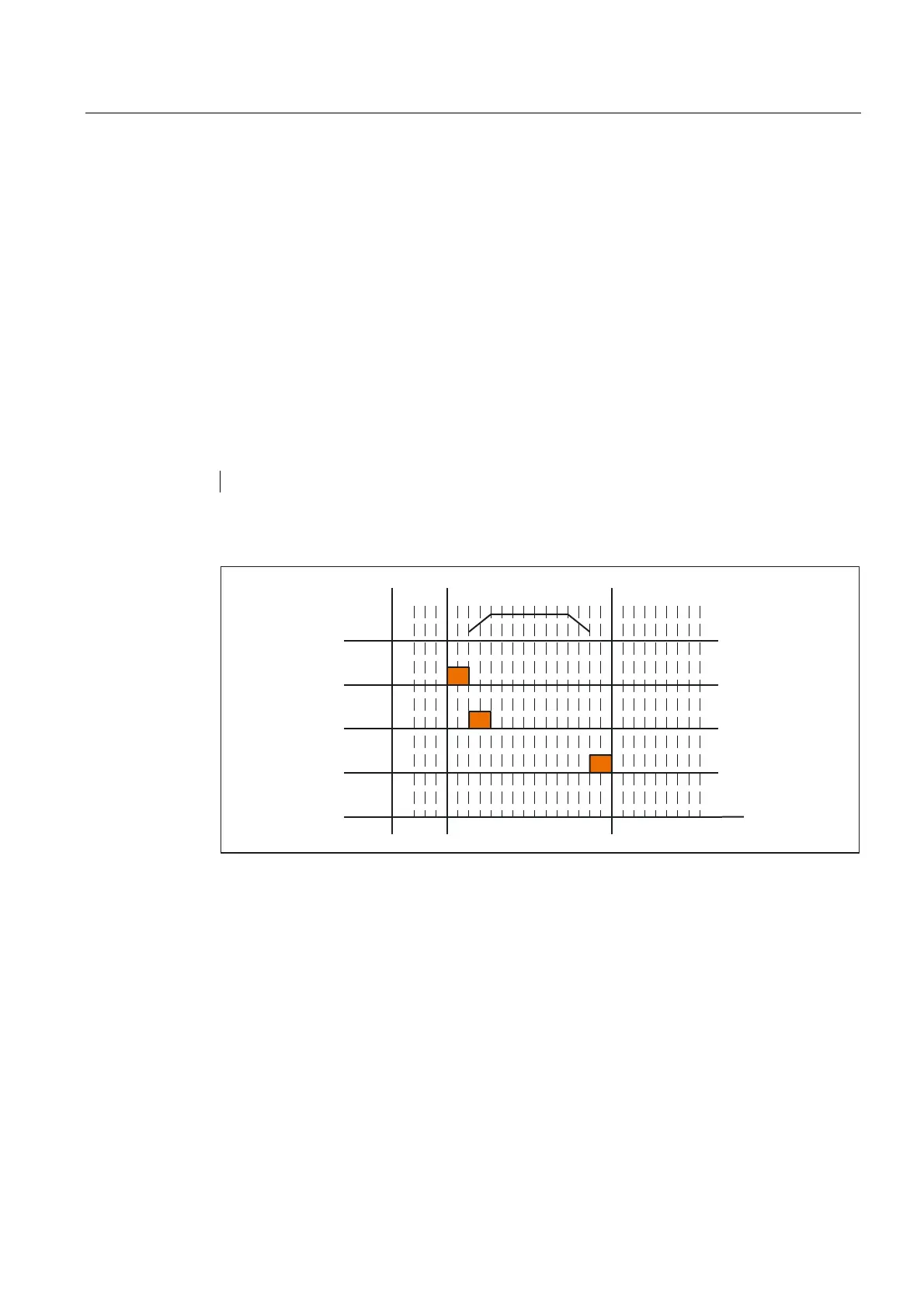

Time sequence for auxiliary function output

!6WDUW1

;

7

0

+

Figure 2-4 Example of auxiliary function output
