Siemens SINUMERIK 840D Function Manual

Detailed description
2.4 Frames
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
67
:.6
(16
3B75$)5$0(3B3)5$0(
3B,62)5$0(
3B&<&)5$0(
0'0&B)5$0(B$&6B6(7 

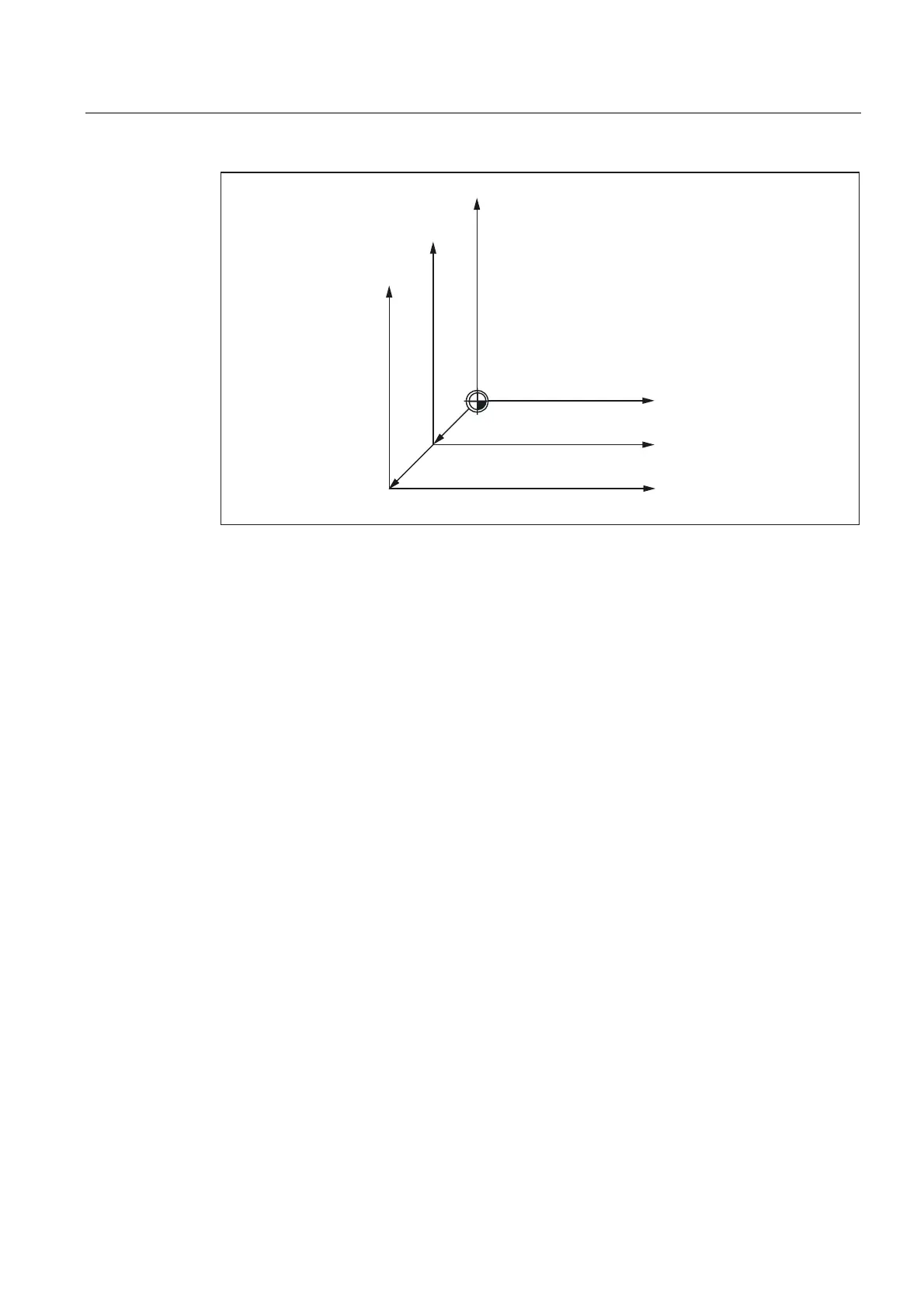

The following machine data can be used to set whether the ENS is with or without the
programmable frame, the transformation frame and $P_ISO4FRAME:
MD24030 $MC_FRAME_ACS_SET (setting of the ENS coordinate system)
As default, the value 1 is set.
Reconfiguring the SZS affects all SZS actual-value displays and the $AA_IEN[axis] system
variables. Traversing geometry axes in JOG mode in the SZS also depends on the
configuration.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
