Examples

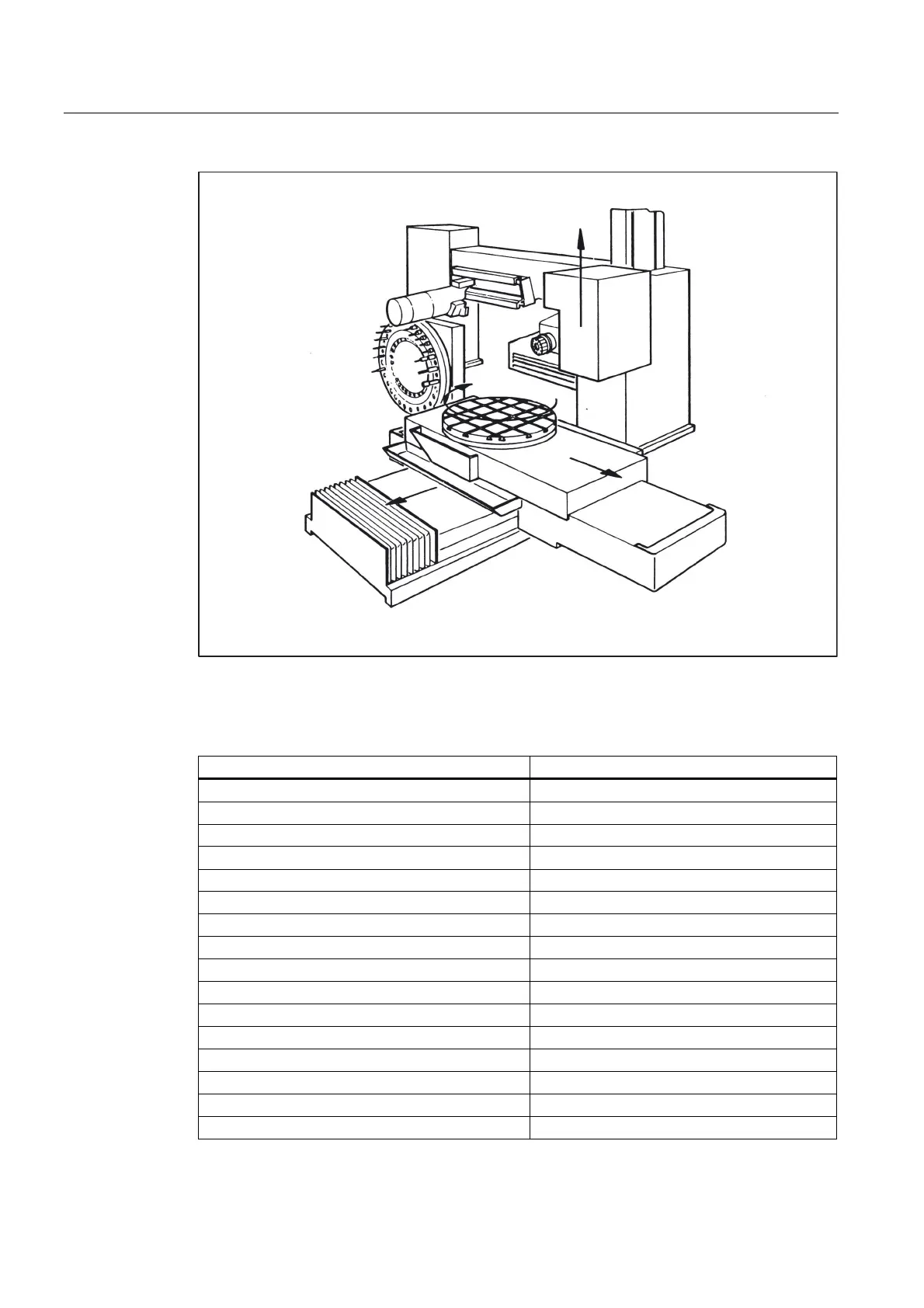

4.1 Axes

Basic logic functions: Axes, coordinate systems, frames (K2)

142 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

:=0

%

<

;

=

Parameterization of the machine data

Machine data Value

MD10000 AXCONF_MACHAX_NAME_TAB[0] = X1

MD10000 AXCONF_MACHAX_NAME_TAB[1] = Y1

MD10000 AXCONF_MACHAX_NAME_TAB[2] = Z1

MD10000 AXCONF_MACHAX_NAME_TAB[3] = B1

MD10000 AXCONF_MACHAX_NAME_TAB[4] = W1

MD10000 AXCONF_MACHAX_NAME_TAB[5] = C1

MD20050 AXCONF_GEOAX_ASSIGN_TAB[0] = 1

MD20050 AXCONF_GEOAX_ASSIGN_TAB[1] = 2

MD20050 AXCONF_GEOAX_ASSIGN_TAB[2] = 3

MD20060 AXCONF_GEOAX_NAME_TAB[0] =X

MD20060 AXCONF_GEOAX_NAME_TAB[1] =Y

MD20060 AXCONF_GEOAX_NAME_TAB[2] =Z

MD20070 AXCONF_MACHAX_USED[0] = 1
