2
10.04 Operation
2.8 Manual mode
2
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 2-103

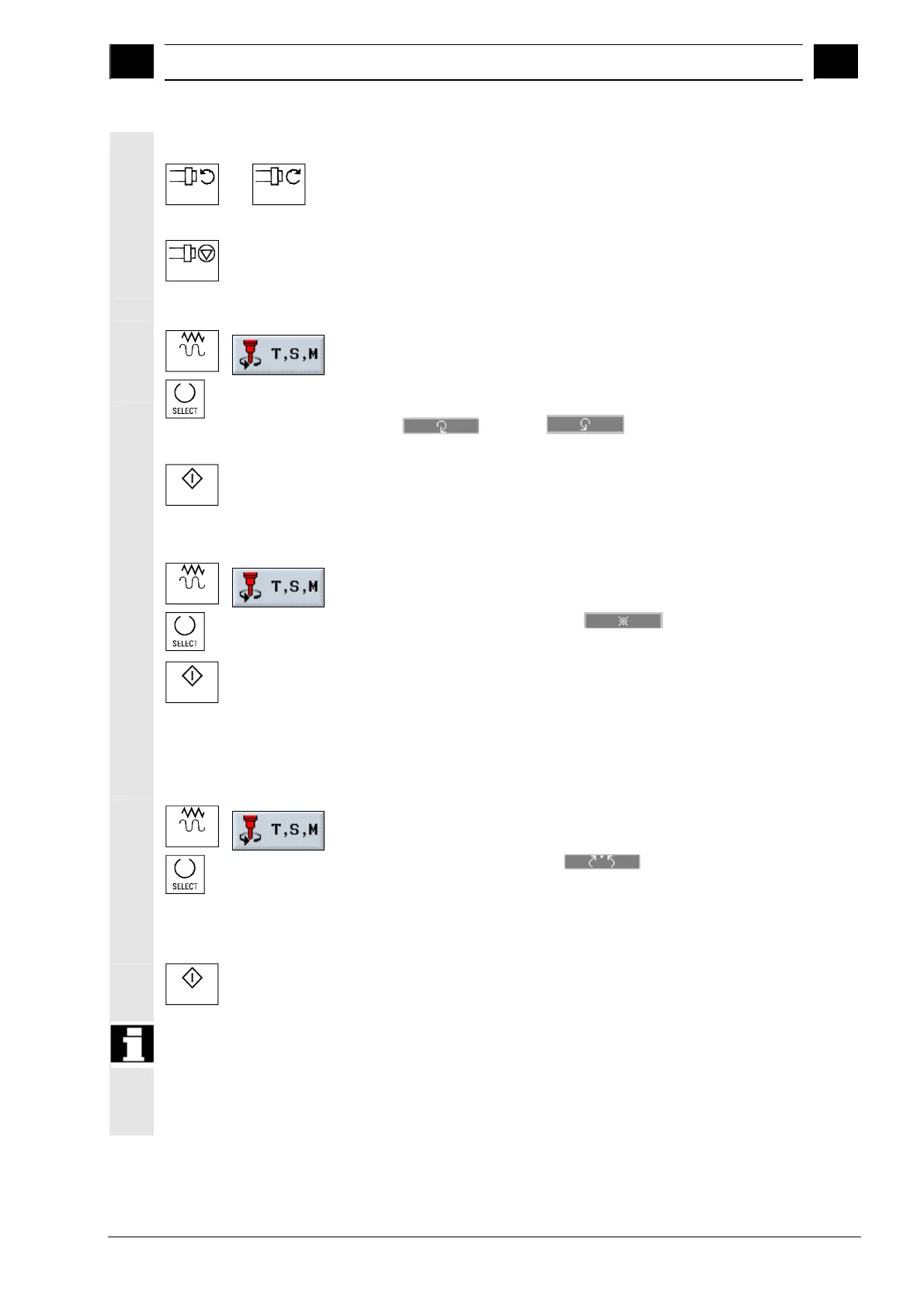

Starting the spindle.
Spindle Left
-or-
Spindle Right
îš¾ Press the "Spindle Left" or "Spindle Right" key.
The spindle is started according to the preselected spindle speed and
the current spindle override weighting.
Spindle Stop
You can stop the spindle again by pressing the "Spindle Stop" key.
- OR -
Jog
îš¾ Select the "T, S, M" softkey in "Machine Manual" mode
îš¾ In "Spindle M Fct.", select spindle direction of rotation
"right" or "left".
Cycle Start
îš¾ Press the "Cycle Start" key.
The spindle rotates.
Stopping the spindle
Jog
îš¾ Select the "T, S, M" softkey in "Machine Manual" mode.
îš¾ In "Spindle M Fct.", select
"Off".
Cycle Start
îš¾ Press the "Cycle Start" key.
The spindle stops.
Positioning the spindle
The spindle position is specified in degrees.
Jog
îš¾ Select the "T, S, M" softkey in "Machine Manual" mode.
îš¾ Select "Spindle M Fct."
"Stop Pos.".
Input field "Stop Pos." appears."
îš¾ Enter the desired spindle stop position.
The spindle position is specified in degrees.
Cycle Start
The spindle is turned to the selected position when you press "Cycle
Start".
You can use this function to position the spindle at a specific angle,
e.g. during a tool change.
• A stationary spindle is positioned via the shortest possible route.
• A rotating spindle is positioned as it continues to turn in the same
direction.
