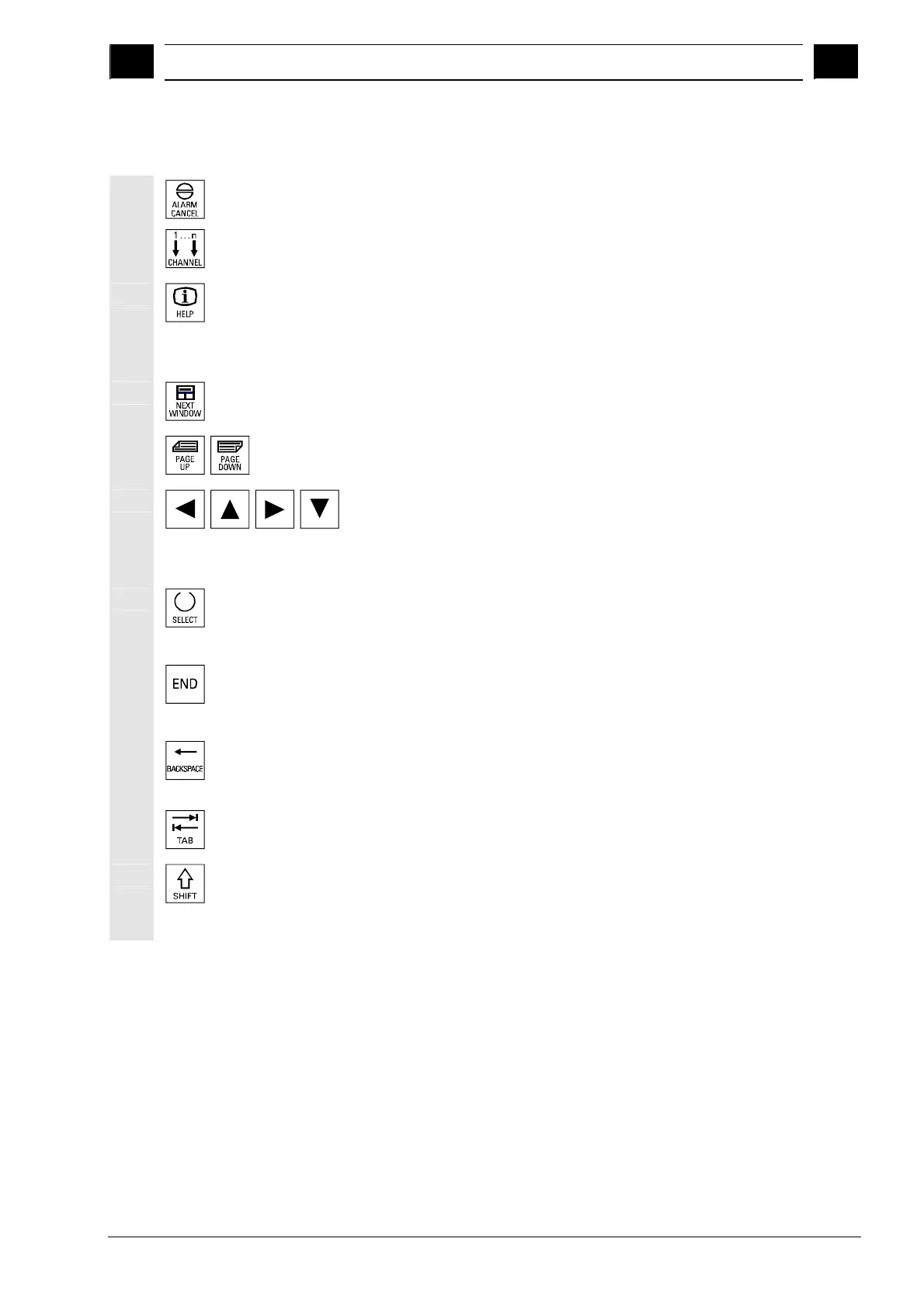

1.2.3 Operator panel keys
Alarm Cancel
Cancels the alarm that is marked with this symbol.
Channel
Irrelevant in ShopMill.
Help
Toggles between the process plan and programming graphics as well
as between the parameterization screen form with programming
graphics and the parameterization screen form with the help display.
Next Window
Irrelevant in ShopMill.
Page Up or Page Down
Page upward or downward in the directory or in the process plan.
Cursor
Navigate between different fields or lines.
Use Cursor right to open a directory or program.
Use Cursor left to switch to the next highest level in the directory tree.
Select
Chooses one of a number of options presented.
This key has the same function as the "Alternat." softkey.
End
Moves the cursor to the last input field in a parameterization screen
form.
Backspace
• Deletes the value in the input field.
• In insertion mode, it deletes the character after the cursor.
Tab
Irrelevant in ShopMill.
Shift
Depress the Shift key to enter the upper character shown on the dual
input keys.
