Siemens SINUMERIK 840D Operation/Programming

2
Operation 10.04
2.11 Trial
p
ro
g
ram run
2
 Siemens AG, 2004. All rights reserved
2-134 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

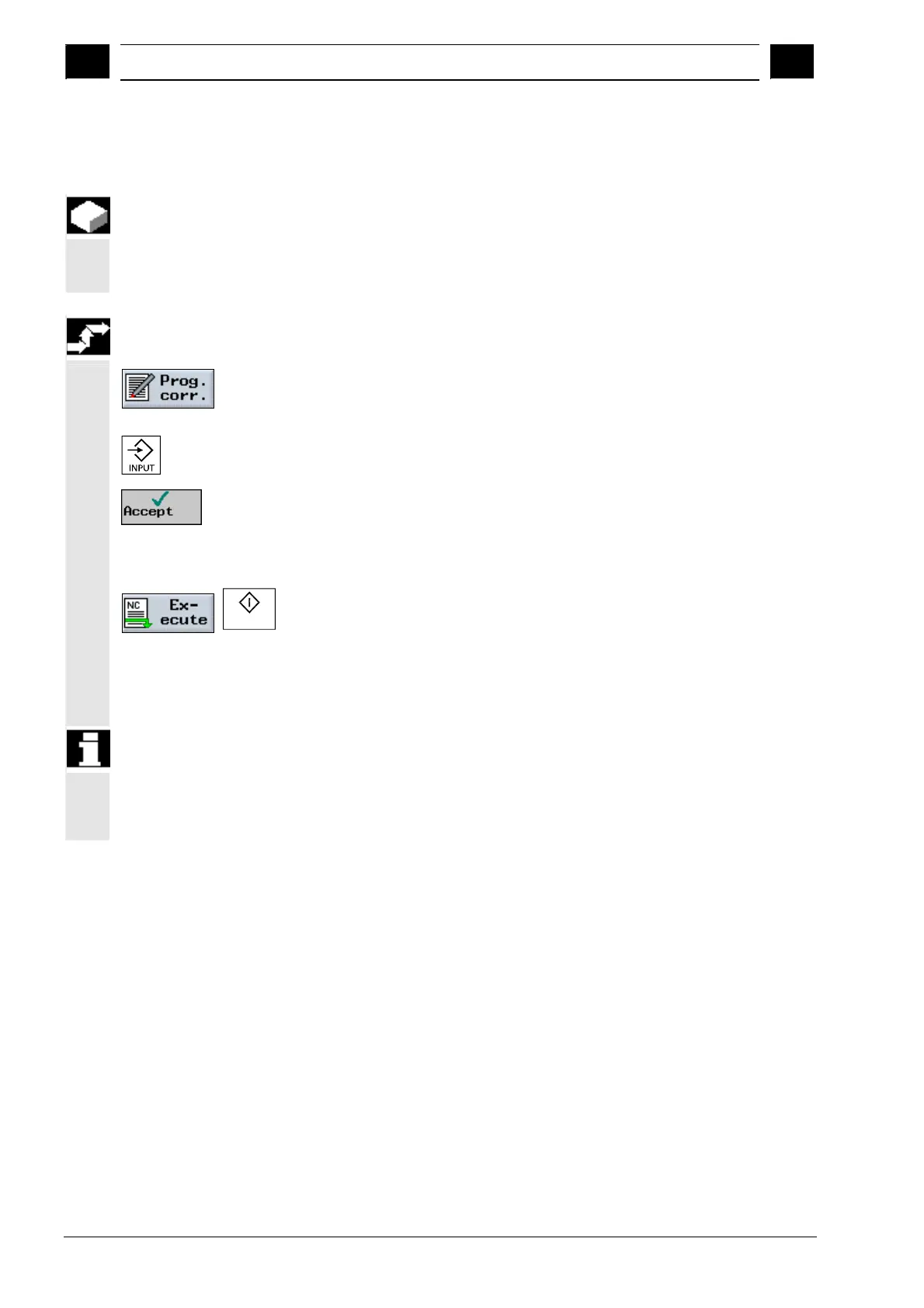

2.11.3 Correcting a program
As soon as the control detects a syntax error in the program, it
interrupts the program and displays the syntax error in the alarm line.
If an error occurs (Stop state), you can edit the program in the
program editor.
 Select a program in "Machine Auto" mode.
The program status must be either "Stopped" or "Reset".
 Press the "Prog. corr." softkey.
The program editor opens.
If an error has occurred, the errored block is marked. Press the "Input"
key and then correct the block.
 Press the "Accept" softkey to transfer the correction to the current
program.
Continuing machining
Cycle Start
 Press the "Execute" softkey followed by the "Cycle Start" key.
Execution of the program is continued.
• Cycle Stop status:
You can only modify blocks that have not yet been executed or
read in by the NC.
• Reset status:
All blocks can be edited.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
