1.3.3 Program views
You can display a sequential control program in various views.

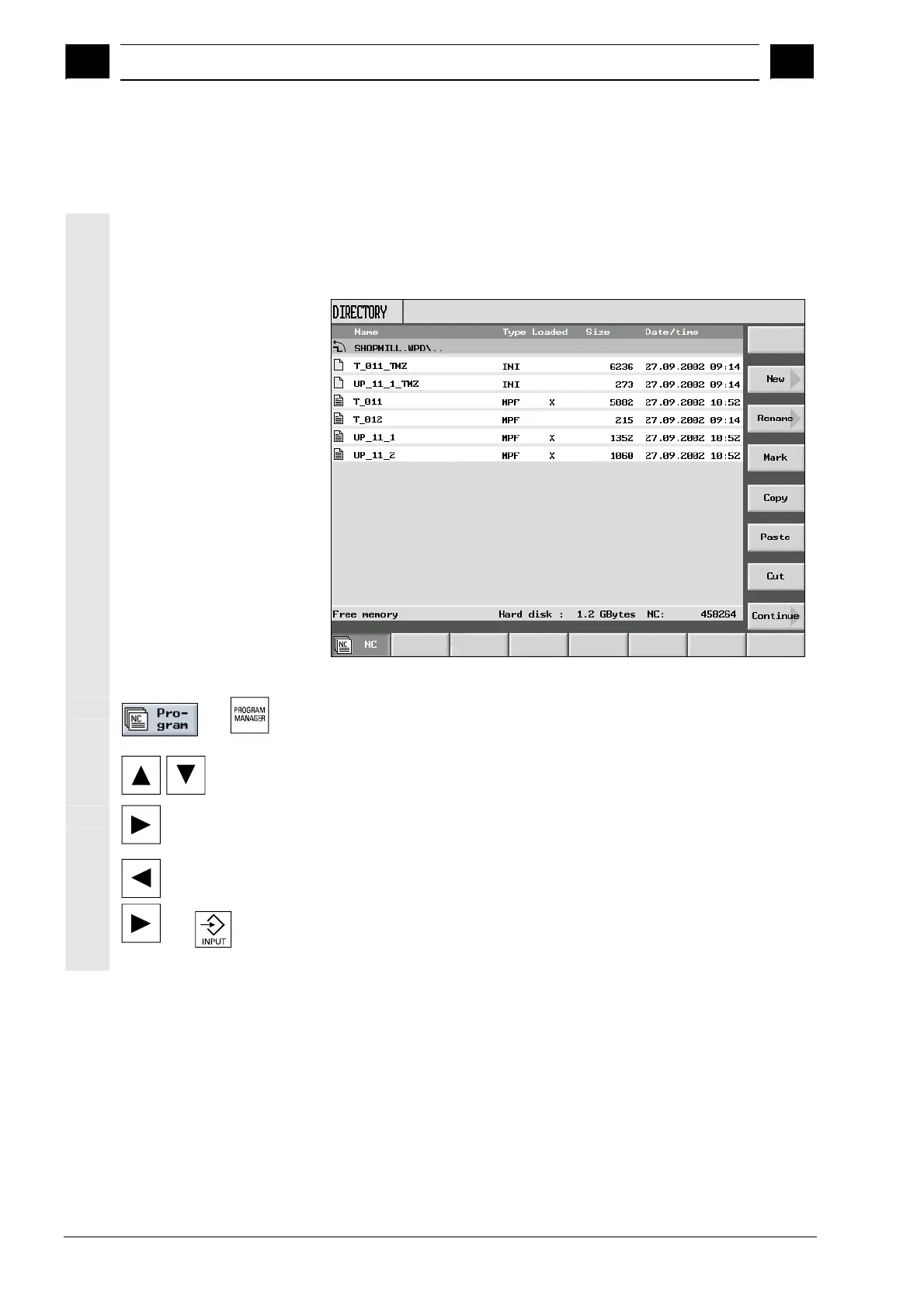

Program manager
In the program manager, you manage all your programs. You can
also select a program here for machining the workpiece.
Program manager
-or-
Select the program manager with the "Program" softkey or "Program
Manager" key.
You can move around within a directory using the "Cursor up" and
"Cursor down" keys.
Use the "Cursor right" key to open a directory.
Use the "Cursor left" key to move up to the next-higher directory level.
-or-
Use the "Cursor right" or "Input" key to open the process plan for a
program.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
