Siemens SINUMERIK 840D Operation/Programming

1
10.04 Introduction
1.3 User interface
1
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 1-43

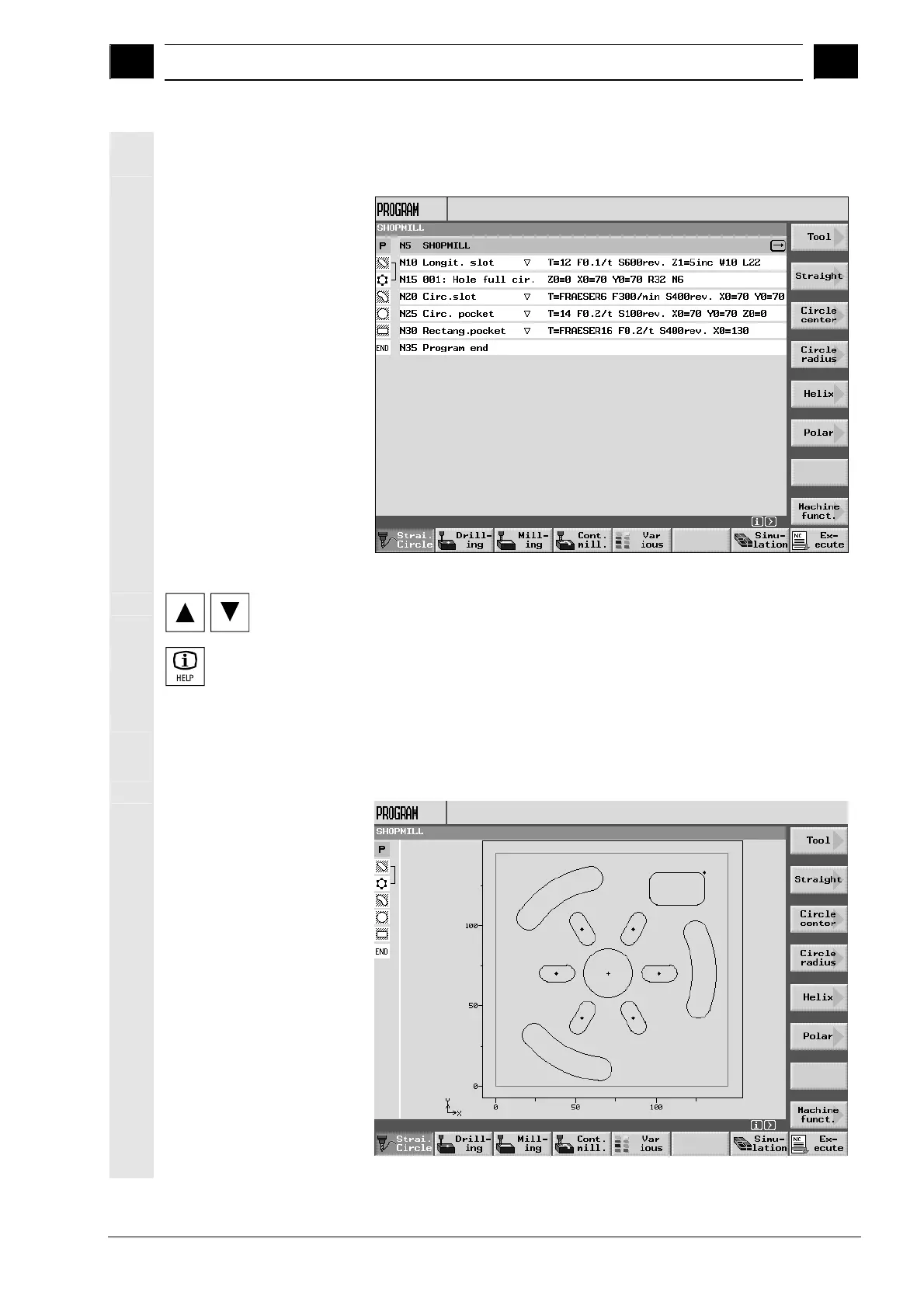

Process plan
The process plan provides an overview of the separate machining
steps of a program.
Process plan
You can move between the program blocks in the process plan using
the "Cursor up" and "Cursor down" keys.
Use the "Help" key to switch between the process plan and the
programming graphics.
Programming graphics
The programming graphics display a dynamic broken-line top view of
the workpiece. The program block selected in the process plan is
color-highlighted in the programming graphics.
Programming graphics

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
