Introduction 10.04
1.3 User interface
1
 Siemens AG, 2004. All rights reserved
1-44 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Use the "Cursor right" key to open a program block in the process
plan. The appropriate parameterization mask complete with
programming graphics is then displayed.

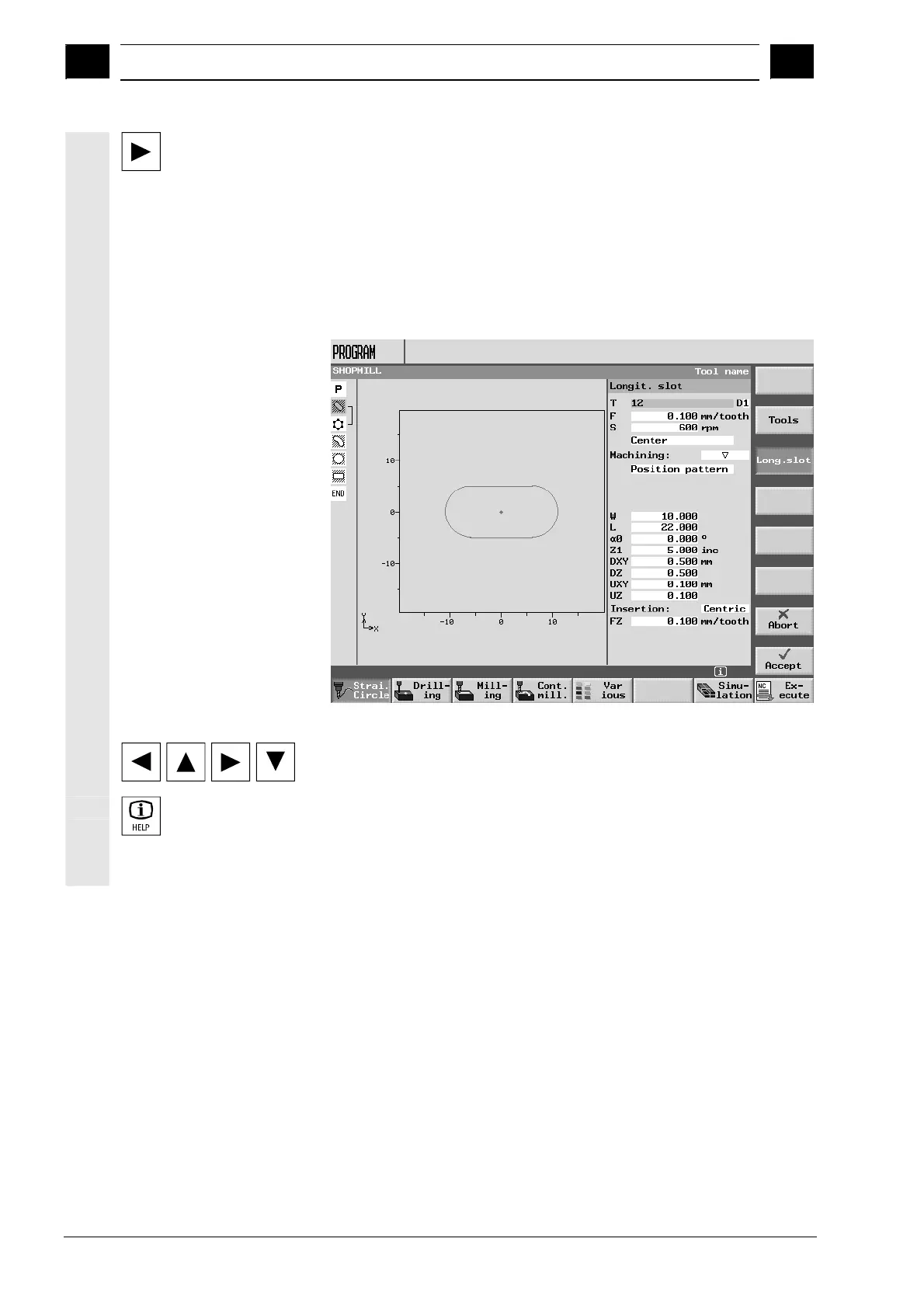

Parameter screen with
programming graphics
The programming graphics in a parameterization screen form show
the contour of the current machining step in broken-line graphics
complete with the parameters.
Parameter screen with programming graphics
Use the cursor keys to move between the input fields within a
parameterization screen form.
Use the "Help" key to switch between the programming graphics and
the help display.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
