5.3 Representation as a plan view
You can display the workpiece as a plan view by pressing this softkey.
A depth display indicates the current depth at which machining is
currently taking place.
The rules for depth display in these graphics is:
"The deeper, the darker".
Display as a plan view
Plan view
 Press the "Plan view" softkey.
A plan view of the current workpiece is displayed.

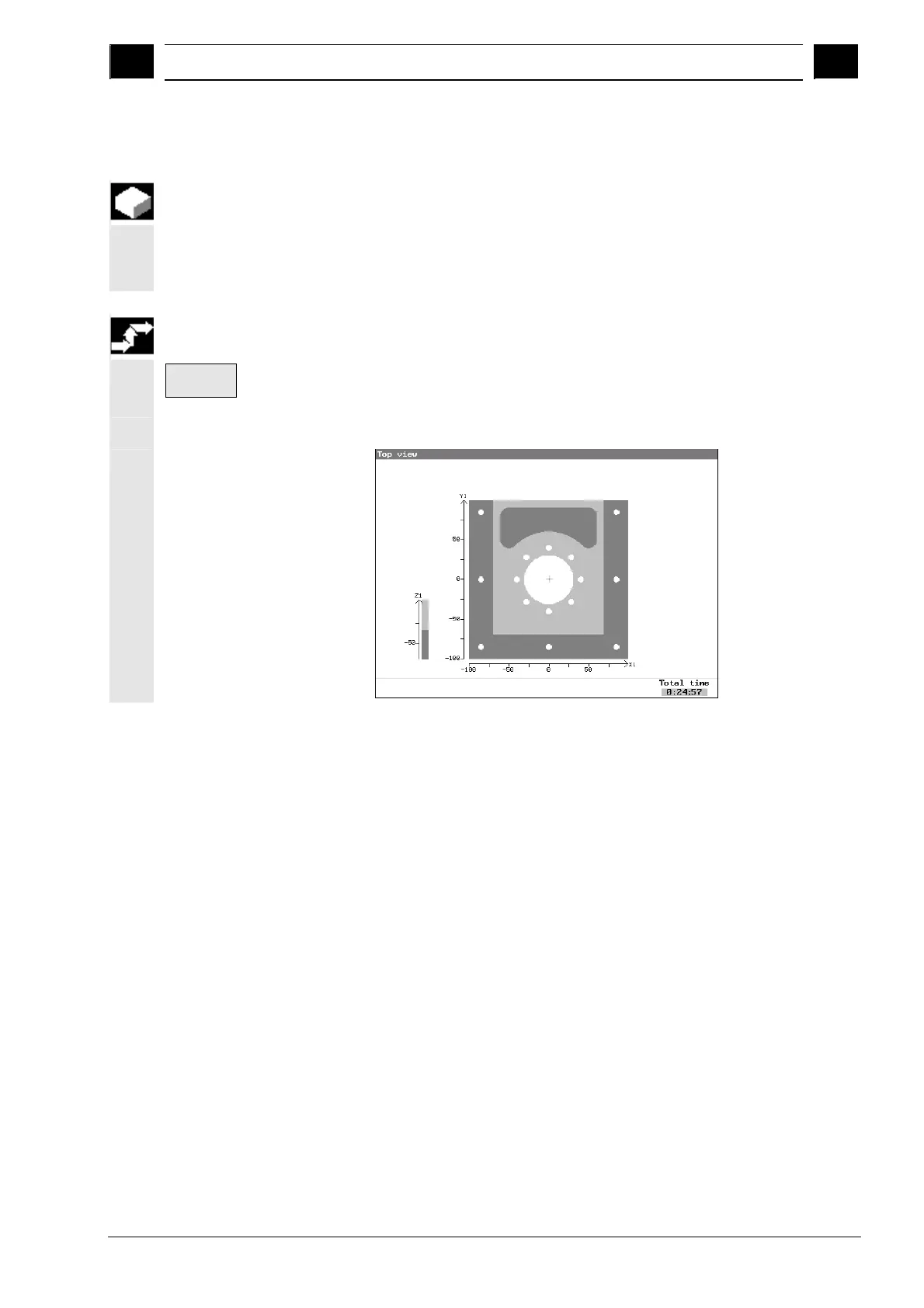

Example of a plan view display of a workpiece:

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
