Siemens SINUMERIK 840D Operation/Programming

2
Operation 10.04
2.13 Tools and tool offsets
2
 Siemens AG, 2004. All rights reserved
2-138 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

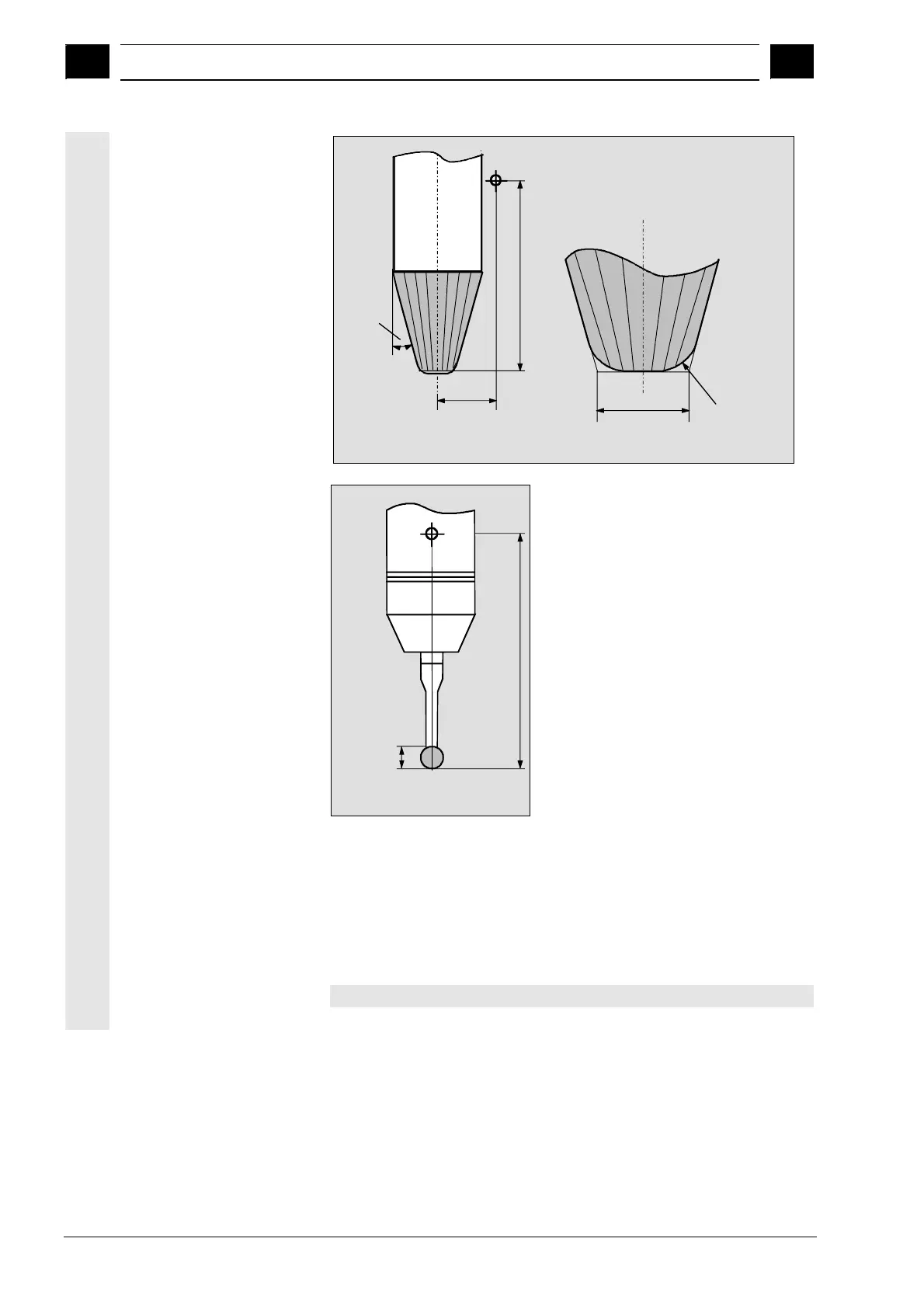

Diameter
Rounding
radius
Length X
Length Z
Angle
for tapered
tools
3D tool
Length
Diameter
3D probe
You can load and unload tools to and from a magazine via the tool
list. When a tool is loaded, it is moved from its storage location to a
magazine location. When it is unloaded, it is removed from the
magazine and taken back to a storage location.
The loading and unloading of tool magazines is defined in a machine
data.
Please refer to the machine manufacturer's instructions.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
