Siemens SINUMERIK 840D Operation/Programming

2
10.04 Operation
2.13 Tools and tool offsets
2
 Siemens AG, 2004. All rights reserved

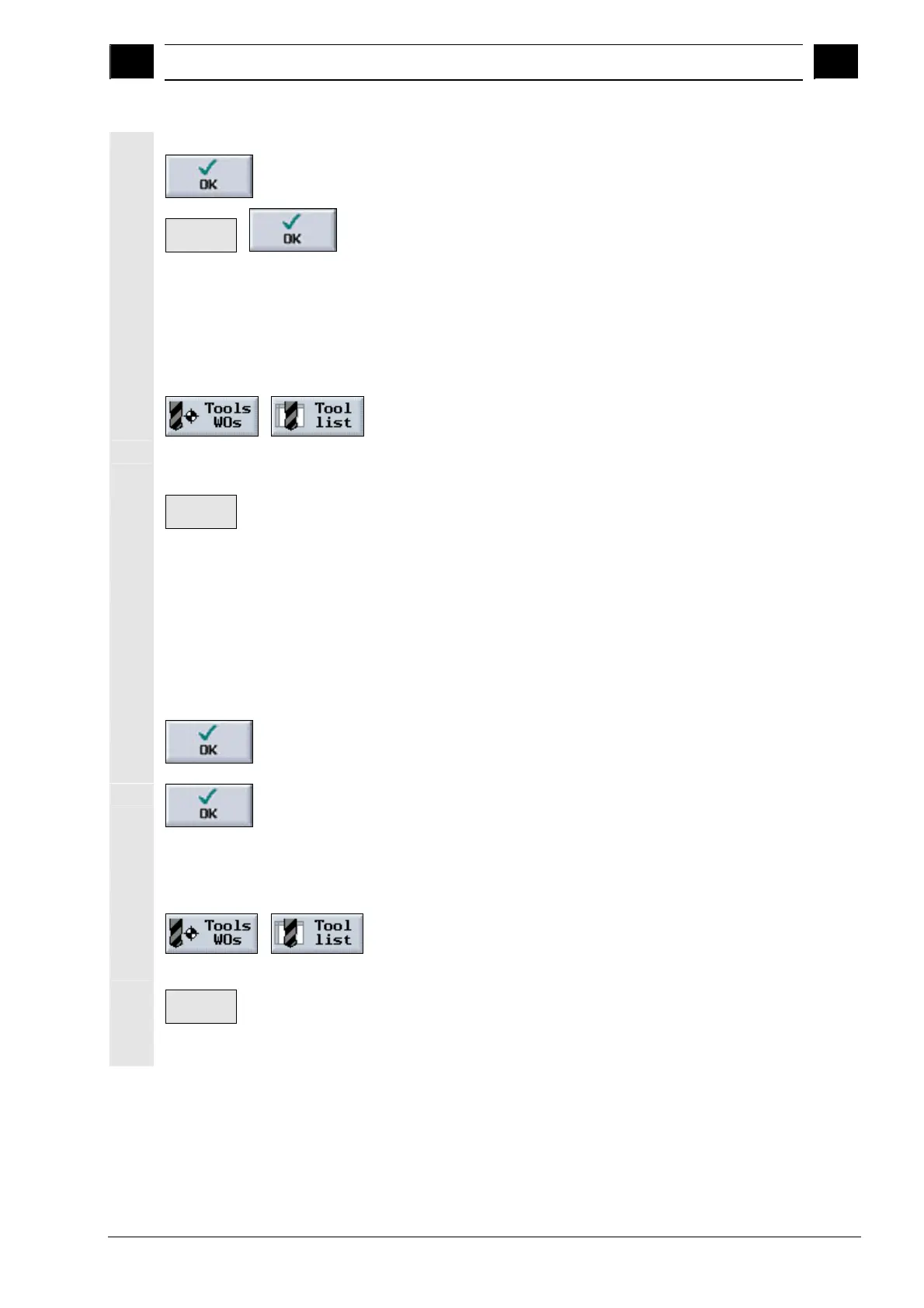

SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 2-157
-or-
 Enter the location number you require and press the "OK" softkey.
-or-
Spindle
 Press the "Spindle" and "OK" softkeys to load a tool into the
spindle.
The tool is loaded into the specified magazine location.
Finding an empty
location in the magazine
and loading the tool
 Select the "Tool list" softkey in the "Tools WOs" operating area.
 Place the cursor on the tool that you want to load into the
magazine.
Load
 Press the "Load" softkey.
The "Empty location" window opens. The "Location" field is initialized
with the number of the first empty magazine location.
 Enter the magazine number and a "0" for the location number if
you wish to search for an empty location in a particular magazine.
-or-
 Enter a "0" for the magazine number and location number if you
wish to search for an empty location in all magazines.
 Press the "OK" softkey.
An empty location is suggested.
 Press the "OK" softkey.
The tool is loaded into the suggested magazine location.
Unloading an individual
tool from the magazine
 Select the "Tool list" softkey in the "Tools WOs" operating area.
 Position the cursor on the tool that you want to unload.
Unload
 Press the "Unload" softkey.
The tool is unloaded from the magazine.
