Siemens SINUMERIK 840D Operation/Programming

3
Programming with ShopMill 10.04
3.3 Creatin
g
a se
q
uential control
p
ro
g
ram
3
 Siemens AG, 2004. All rights reserved
3-180 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
"Alternat." softkey and toggle key:
If the cursor is positioned on an input field with various setting options,
the "Alternat." softkey is automatically displayed on the vertical
softkey bar (see "Alternat." softkey in Sec. "Important softkeys for
operation and programming").
Roughing/finishing:
Every cycle can be programmed with roughing or finishing. If you wish
to rough cut the workpiece first and then finish cut it, you must call the
cycle a second time. The programmed values do not change if you
call the cycle again.
Some cycles offer roughing and finishing as a
complete machining
operation, i.e. you need only call the cycle once.
Approaching a cycle
• Approach the programmed cycles with ShopMill
− Tool is above the retraction plane (RP):
Positioning of the tool is performed at rapid traverse in the X/Y
plane and then in the Z direction to the retraction plane (RP)
X
Z
Safety
clearance (SC)
Return
plane (RP)
Tool change point
Rapid traverse
Machining feedrate

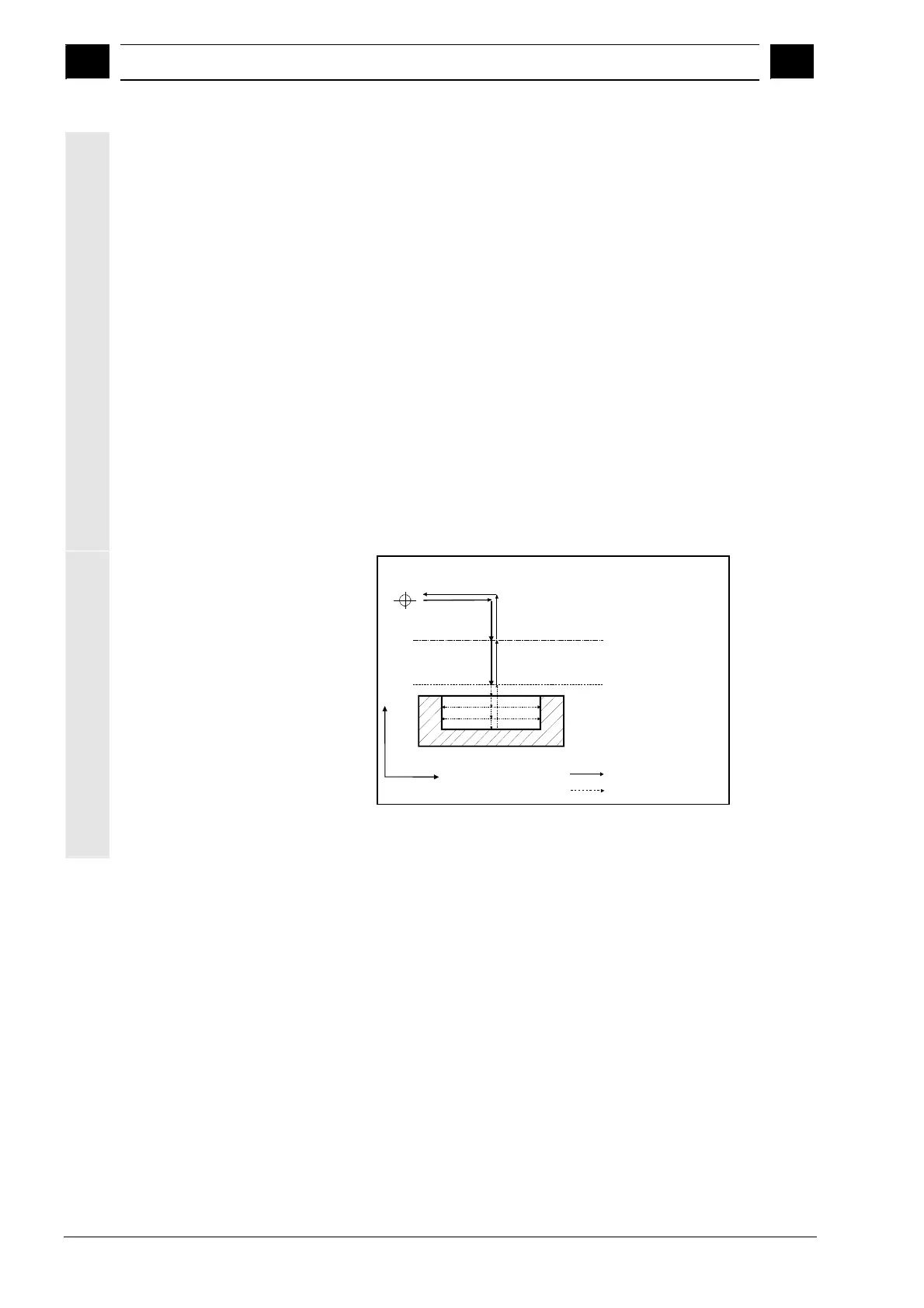

Approach to cycle above the retraction plane
− or tool is below the retraction plane (RP):

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
