Programming with ShopMill 10.04
3.10 Miscellaneous functions
3
 Siemens AG, 2004. All rights reserved
3-304 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

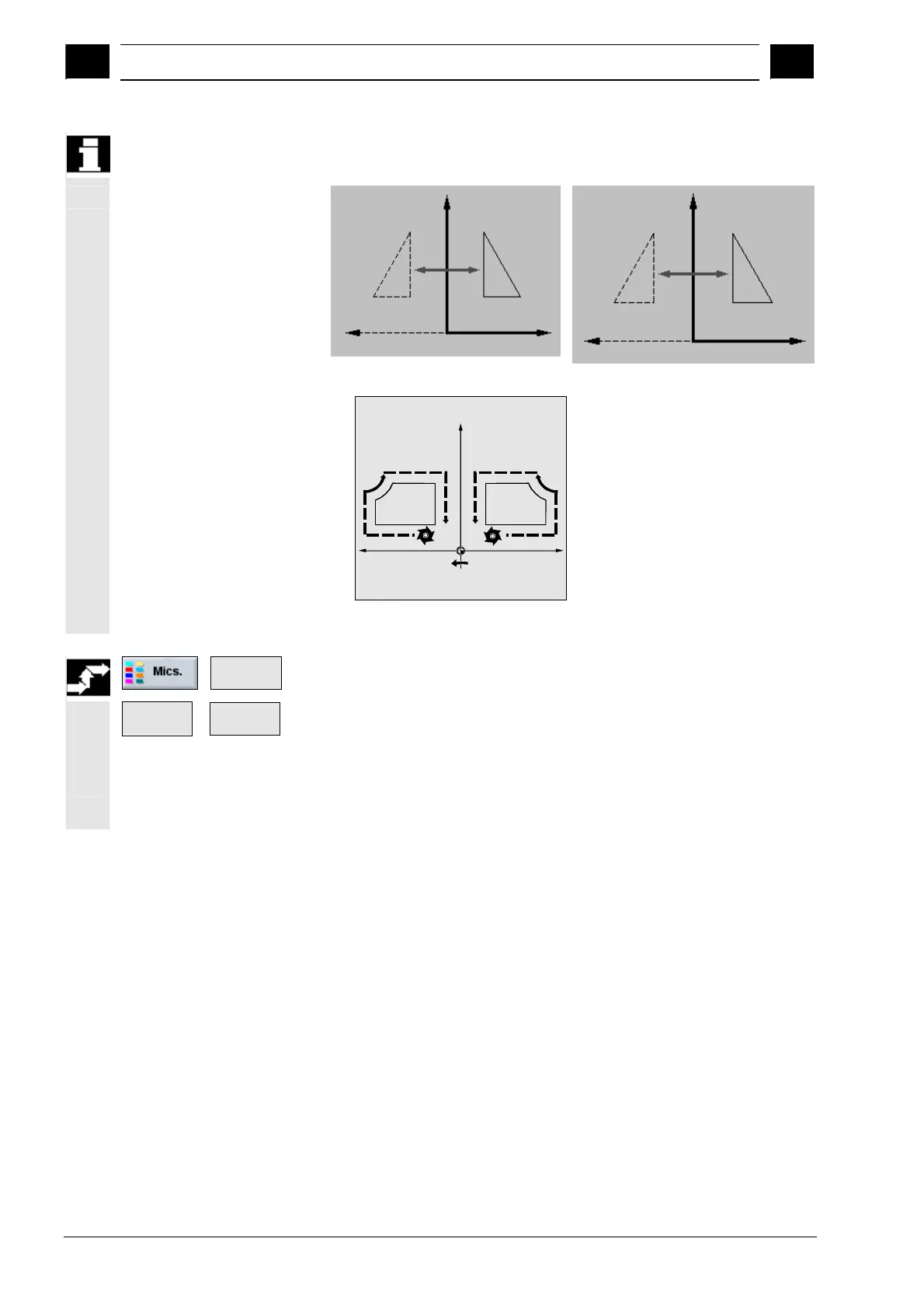

Note that with mirroring, the travel direction of the cutting tool
(conventional/climb) is also mirrored.
New mirroring
Additive mirroring
X
Y
Mirroring on the X axis
Mirroring of the X axis
Transfor-
mation >
 Press the "Misc." and "Transformation" softkeys.
Offset
>
...
Mirroring
>
 Select the coordinate transformation using the softkey.
 Select whether you want to program a new or an additive
coordinate transformation.
 Enter the desired coordinates.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
