Siemens SINUMERIK 840D Operation/Programming

4
Programming with G Code 10.04
4.2 Runnin
g
a G code
p
ro
g
ram
4
 Siemens AG, 2004. All rights reserved
4-322 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

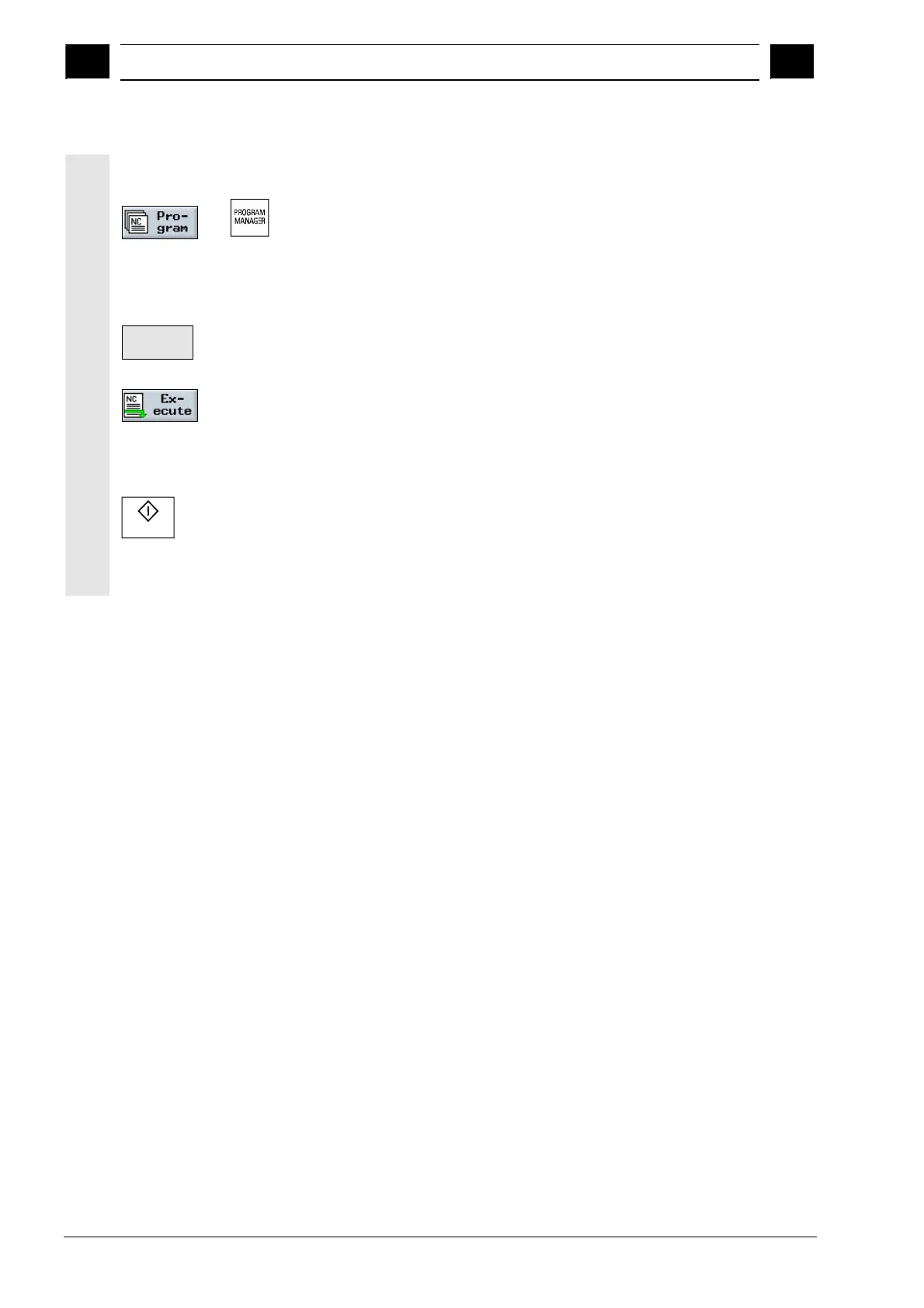

Running a G code
program
-or-
 Press the "Program" softkey or the "Program Manager" key.
-and-
 Position the cursor on the desired G code program.
-and-
Execute
 Press the "Execute" softkey.
-or-
 Press the "Execute" softkey if you are in the "Program" operating
area.
ShopMill automatically changes to "Machine Auto" operating mode
and loads the G code program.
Cycle Start
 Press the "Cycle Start" key.
Execution of the G code program starts on the machine.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
