Siemens SINUMERIK 840D Operation/Programming

7
10.04 Mold Making
7.1 Re
q
uirements
7
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 7-387
NC user memory
(loaded)
Technology program
Zero point 1
Tool 1
Feed 1
Spindle speed 1
High speed settings 1
EXTCALL geometry
program 1
Zero point 2
Tool 2
Feed 2
Spindle speed 2
High speed settings 2
EXTCALL geometry
program 2
Hard disk or
Compact Flash Card
(discharged)
Geometry program 1
(roughing)
X Y Z
X Y Z
...
Geometry program 2
(prefinishing)
X Y Z
X Y Z
...

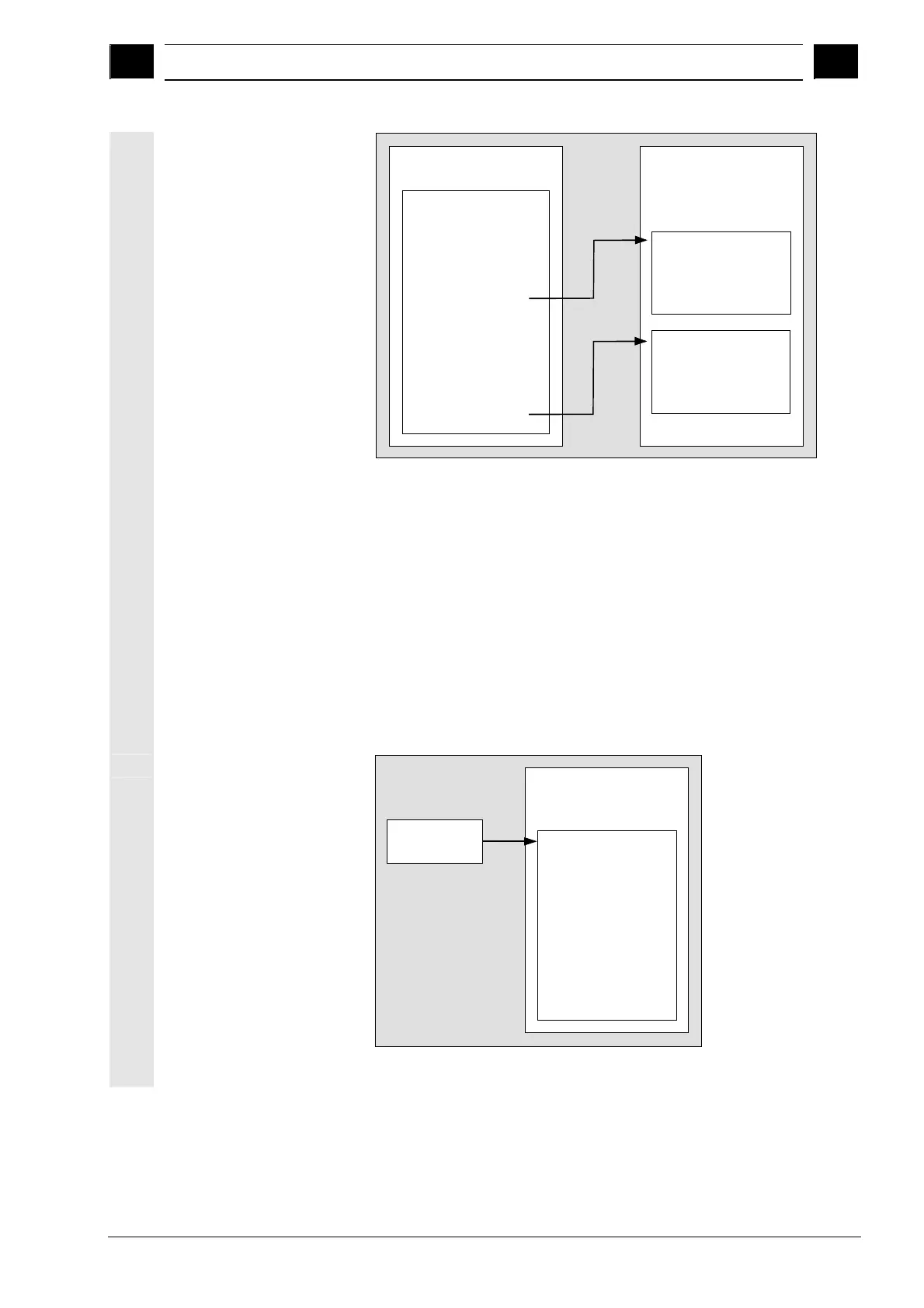

Program structure technology program with geometry programs
• Complete program
Complete programs contain both the basic settings, such as work
offset, tool call, etc. and the geometry values of the free-form
surfaces to be machined. However, programming optimum
velocity control is very complicated in a complete program.
Complete programs are also created on external CAM systems.
Because of their size, the complete programs are stored on the
hard disk of the PCU 50 or on the compact flash card of the
PCU 20.
Storage on a network drive is also only recommended for a point-
to-point connection between the control and server.
Execution from
hard disk
Hard disk or
Compact Flash Card
(discharged)
Complete program
Zero point
Tool
Feed
Spindle speed
High speed settings
X Y Z
X Y Z
Feed
X Y Z
X Y Z
...
Program structure complete program

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
