Siemens SINUMERIK 840D Operation/Programming

9
10.04 Examples
9.3 Exam
p
le 3: C
y
linder surface transformation
9
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 9-431

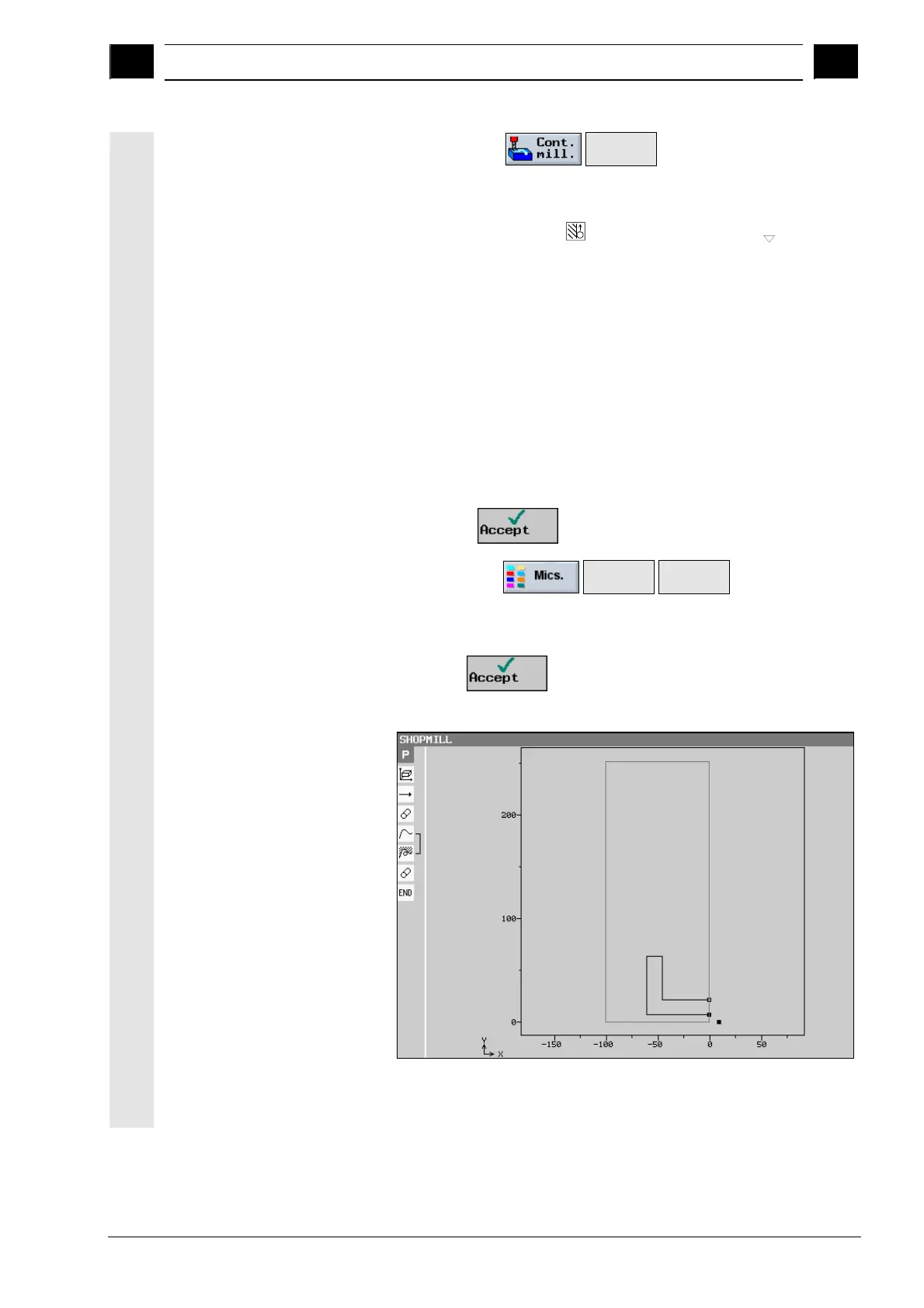

7. Path milling
• Select via the
Path
milling
softkeys
• Enter parameters
T CUTTER8 F 0.2 mm/tooth S 5000 rev/min
Radius compensation Machining
Z0 40 abs Z1 10 inc. DZ 10
UZ0
UXY 0
Approach Straight line
Depth infeed
L1 2
FZ 0.1 mm/tooth
Retract Straight line
Retraction strategy
L2 2
Retraction mode To retraction plane
• Press the
softkey.
8. Deactivate cylinder
surface transformation
• Select via the
Transfor-
mations >
Cylinder
surface >
softkeys
• Enter parameters:
Transformation Off
• Press the
softkey.
9. Result
• Programming graphics
• ShopMill program representation

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
