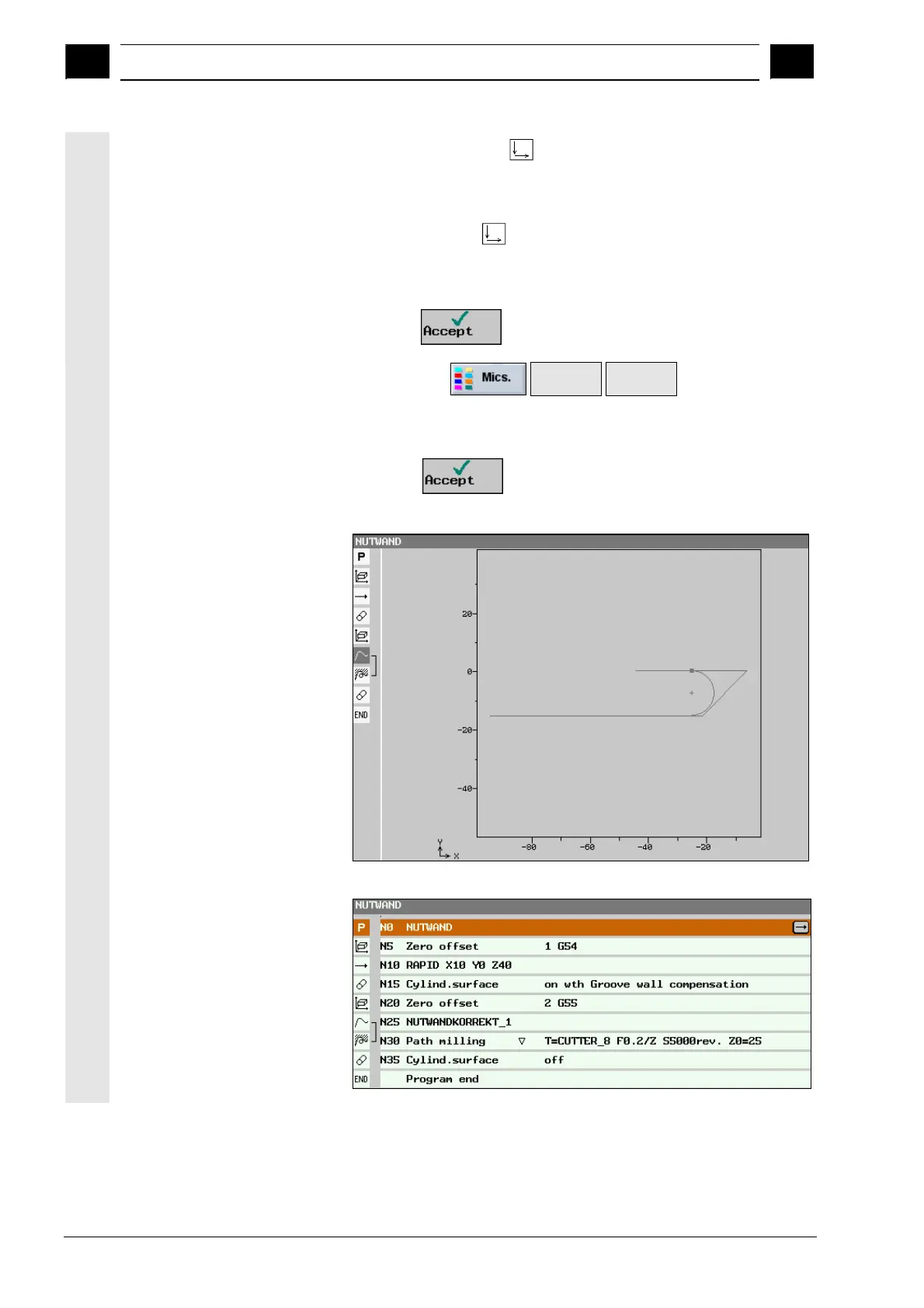

Siemens SINUMERIK 840D Operation/Programming

9
Examples 10.04
9.4 Exam
p
le 4: Slot side com
p
ensation
9
 Siemens AG, 2004. All rights reserved
9-436 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Approach Quadrant
R1 1
FZ 0.1 mm/tooth
Retract Quadrant
R2 1
Retraction mode to retraction plane
• Press the
softkey.
8. Deactivate cylinder
surface transformation
• Select via the
Transfor-
mations >
Cylinder
surface >
softkeys
• Enter parameters:
Transformation Off
• Press the
softkey.
9. Result
• Programming graphics
• ShopMill program representation

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
