2
10.04 Operation
2.6 Measurin
work
iece zero
2
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 2-91
5. Enter the diameter of the hole
Cycle Start
6. Press the "Cycle Start" key.
Calibration starts. First the exact hole center point is determined.
Then the 4 trigger points on the inside wall of the hole are
approached.

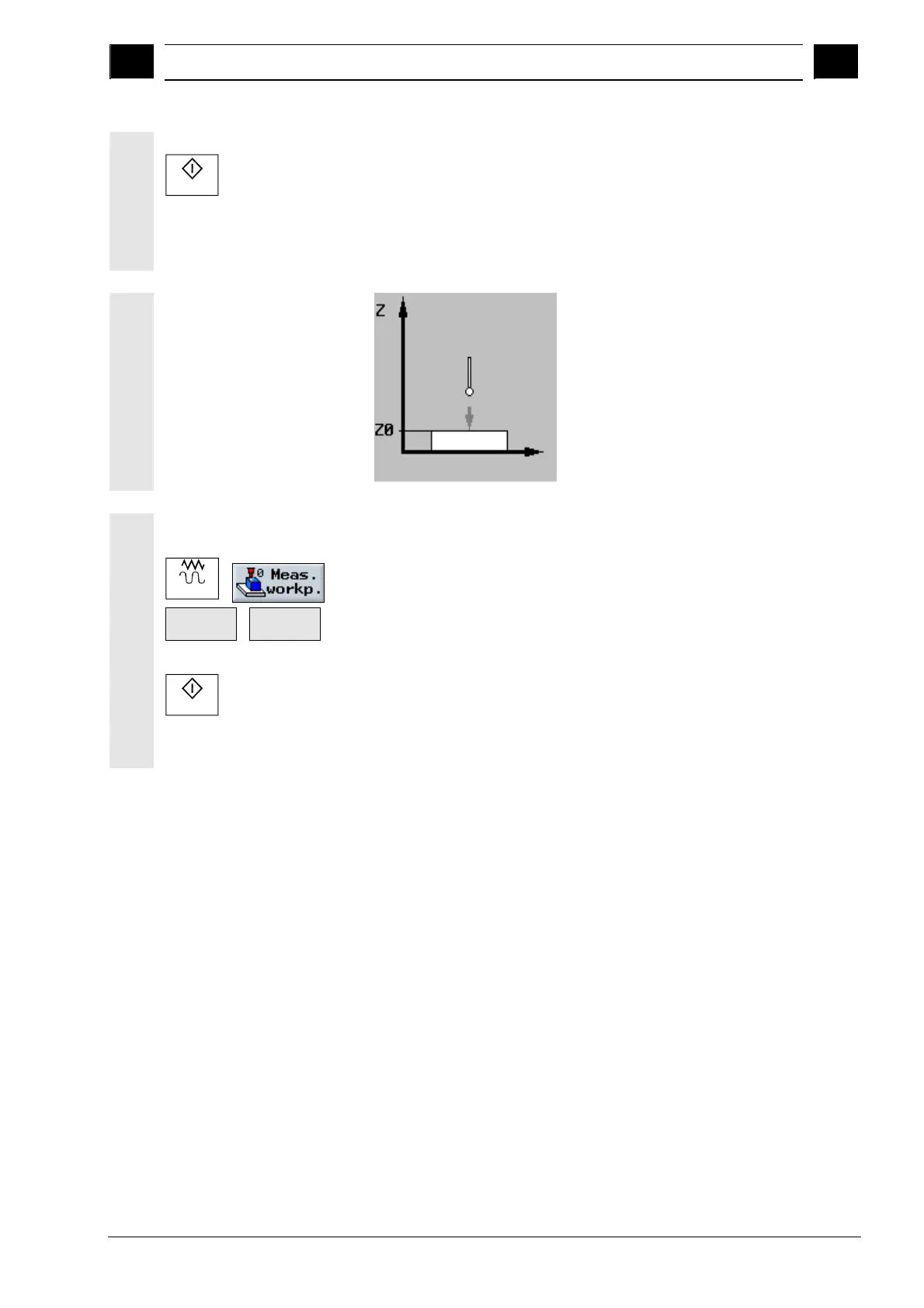

Calibrating a length
1. Attach a 3D probe type tool to the spindle.
2. Position the tool above the surface.
Jog
3. In "Machine Manual" mode, select the "Meas. workp." softkey.
Calibration
probe
Length
4. Press the "Calibration probe" and "Length" softkeys.
5. Specify reference point Z0 of the surface, e.g. of the workpiece or
the machine table.
Cycle Start
6. Press the "Cycle Start" key.
Calibration starts. The length of the measuring tool is calculated and
entered in the tool list.
