Siemens SINUMERIK 840D Operation/Programming

2
Operation 10.04
2.7 Measurin
g
a tool
2
 Siemens AG, 2004. All rights reserved
2-98 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

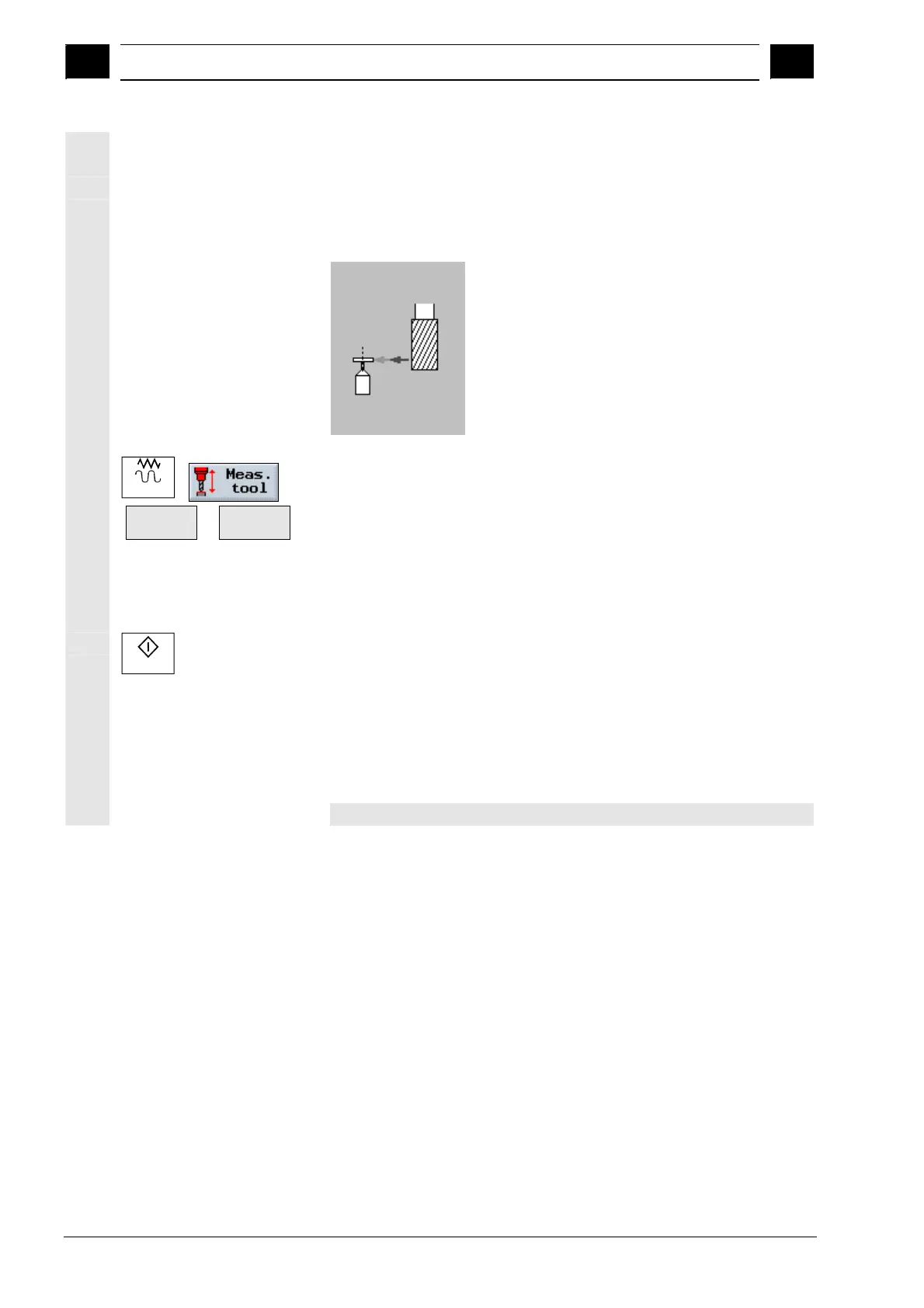

Measuring radius/
diameter
 Attach the tool you want to measure to the spindle.
 Position the tool near the measuring probe so that it can be
approached without collision.
Measuring radius/diameter
Jog
 Select the "Measure tool" softkey in "Machine Manual" mode.
Radius
Auto >
or
Dia.
Auto >
 Then press the softkey "Radius Auto" or "Dia. Auto".
 Select the tool cutting edge D and the duplo number DP for the
tool.
 Enter the longitudinal offset V, if necessary.
Cycle Start
 Press the "Cycle Start" key.
This starts the automatic measuring process. Measurement is
performed with a spindle rotating in the opposite direction.
The tool radius or diameter is calculated automatically and entered in
the tool list.
The measuring process depends on settings made by the machine
manufacturer.
Please refer to the machine manufacturer's instructions.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
