Control During Operation
7-157SA522 Manual
C53000-G1176-C119-2
21 3HUFHQW Operating measured values, in percent of nominal quanti-
ties.
51 8VHU'HILQHG Measured values that are defined by the user during initial
setting of the device (see Section 5.3).
61 6HW3RLQWV Impulse counter generated by the user defined logic CFC
(according to section 5.3).
71 6HWSRLQWV09 Threshold values generated by the user defined logic CFC
(according to section 5.3).
If a measured value is not available, then instead of the measured value, 3 dots ap-
pear. If the value is undefined (e.g., cos ϕ, when no current is flowing), then “–––” ap-
pears (3 horizontal bars). If a measured value overruns, then “
” (3 asterisks) is
displayed.
Use the key to select the measured value group that has the values desired, and
switch to the display of this group with the key. Figure 7-17 shows an example for
the display of operating measured values.

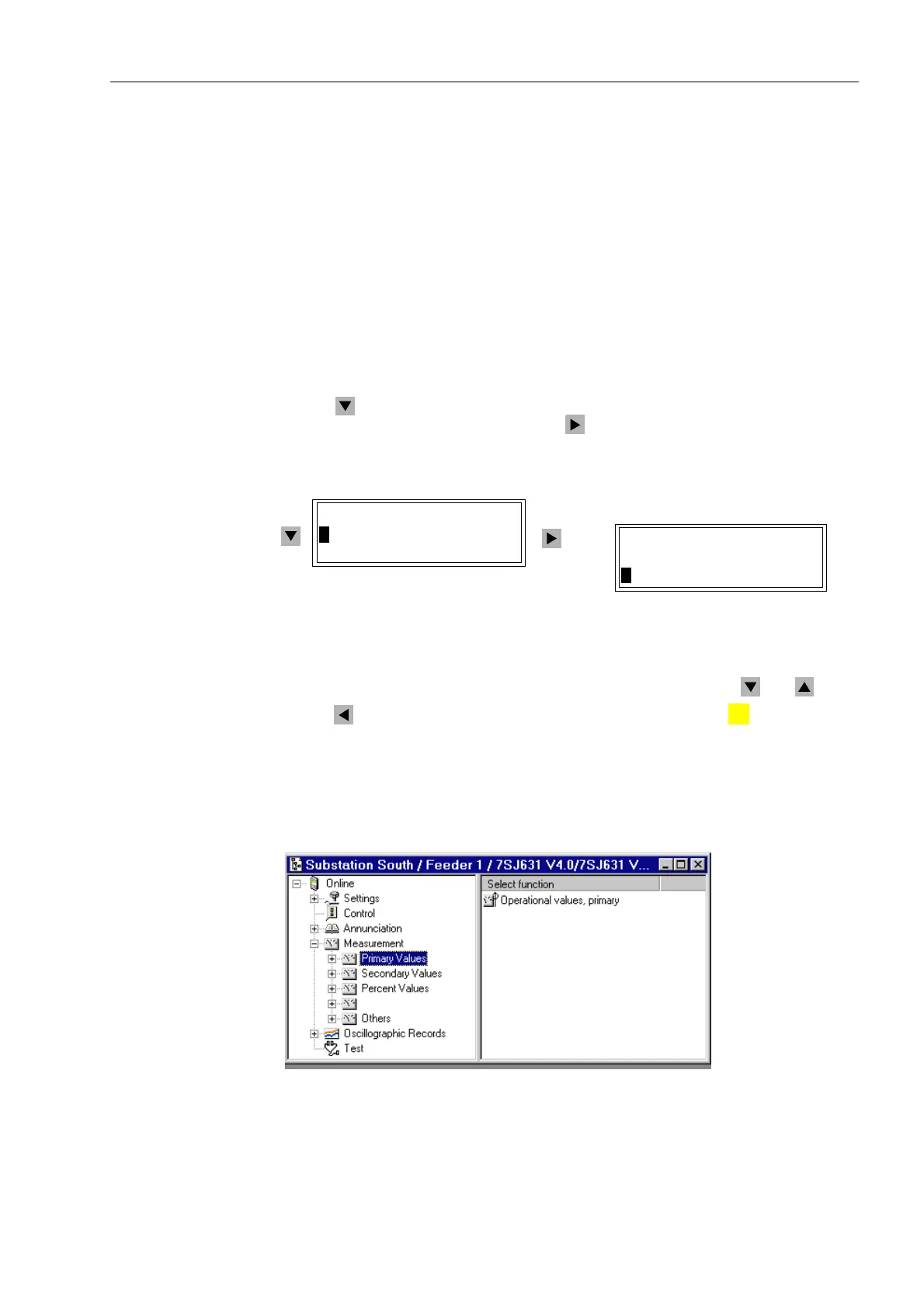

Figure 7-17 Viewing operating measured values on the front display
Move up and down in the table of measured value groups using the and keys.
Use the key to return to the 0($685(0(17 sub-menu. Use the key to return to
the 0$,10(18.
From PC with
DIGSI
®
4
The measured value groups are found under Measurement (Figure 7-2) with a double
click, as shown in Figure 7-18, left.
Figure 7-18 Measurement window in DIGSI
®
4
The measured values are divided into the following groups:
0($685(0(17

!2SHUDWLRQSUL
!2SHUDWLRQVHF
23(5$7,2135,

!,/ $
!,/ $
Etc.
Etc.
