Installation and Commissioning
8-177SA522 Manual
C53000-G1176-C119-2
Checking of the supplied nominal current ratings of the current transducers on the in-
put/output board I/O–2.

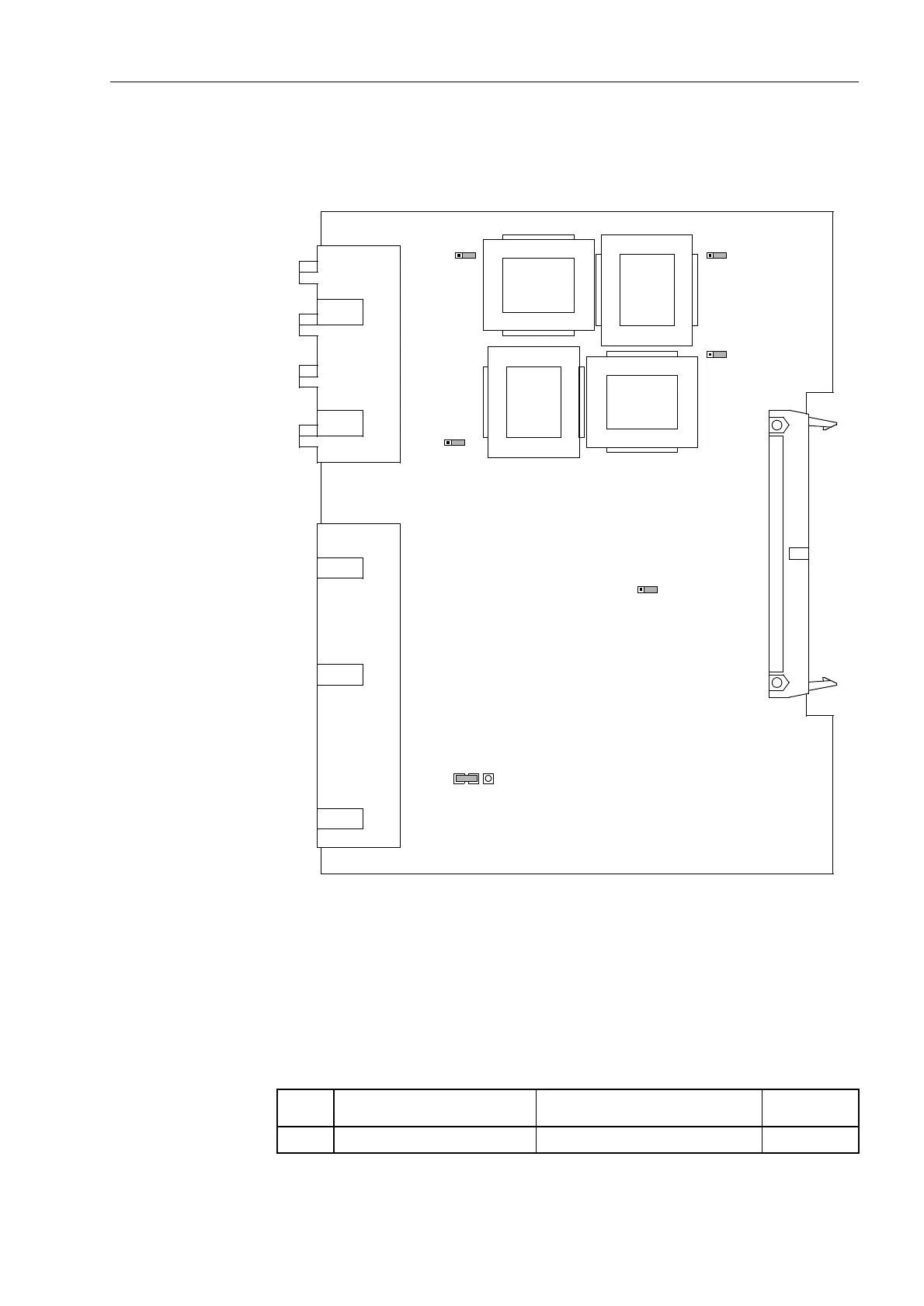

Figure 8-10 Jumpers on the input/output board I/O–2 for the current transducers
For the input/output module I/O–2 it is possible to change the contact of the output
relay R13 from normally open to normally closed (refer to general diagrams in the
Appendix under Section 1.2).
This does only apply for devices from production series /CC.
Table 8-6 Jumper setting for the quiescent state of the output relay R13
Jumper Open in the quiescent state Closed in the quiescent state Presetting
X41 1–2 2–3 1–2
X64
5A 1A
1 2 3
X61
5A 1A
1 2 3
X63
5A 1A
1 2 3
X62
5A 1A
1 2 3
X60
5A 1A
1 2 3
T4
T2
T3
T1
X41
1 3 2
