Control During Operation
214
7SS52 V4 Manual
C53000-G1176-C182-1
Click the desired measurement group e.g., Operational values primary. The next
subgroup is shown.

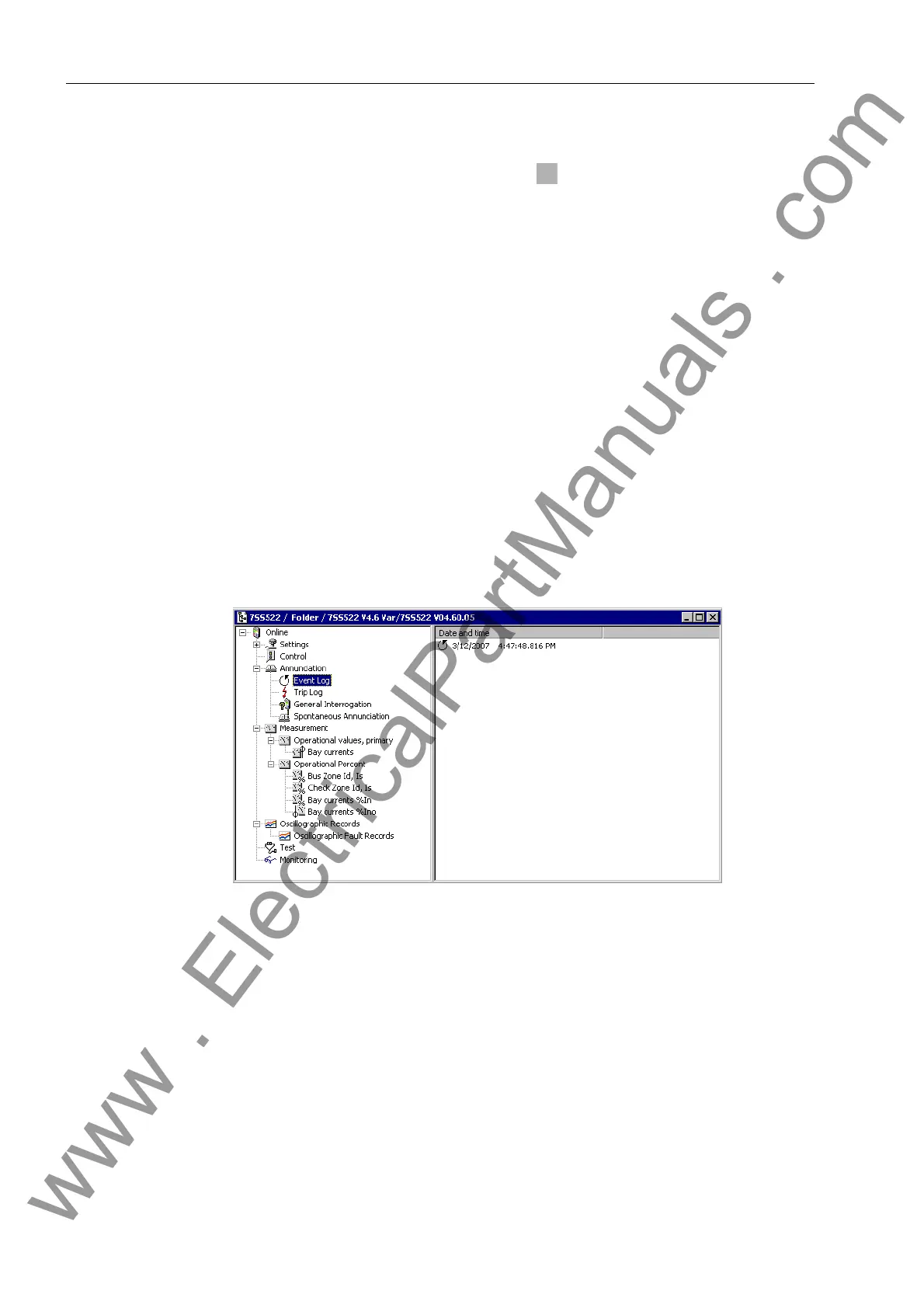

Click the desired subgroup e.g., Bay currents, primary values
(Figure 6-1, page 207).
Double-click an entry in the list view in the right section of the window. The window
with the contents of the corresponding measured value group opens
(Figure 6-8, page 214).

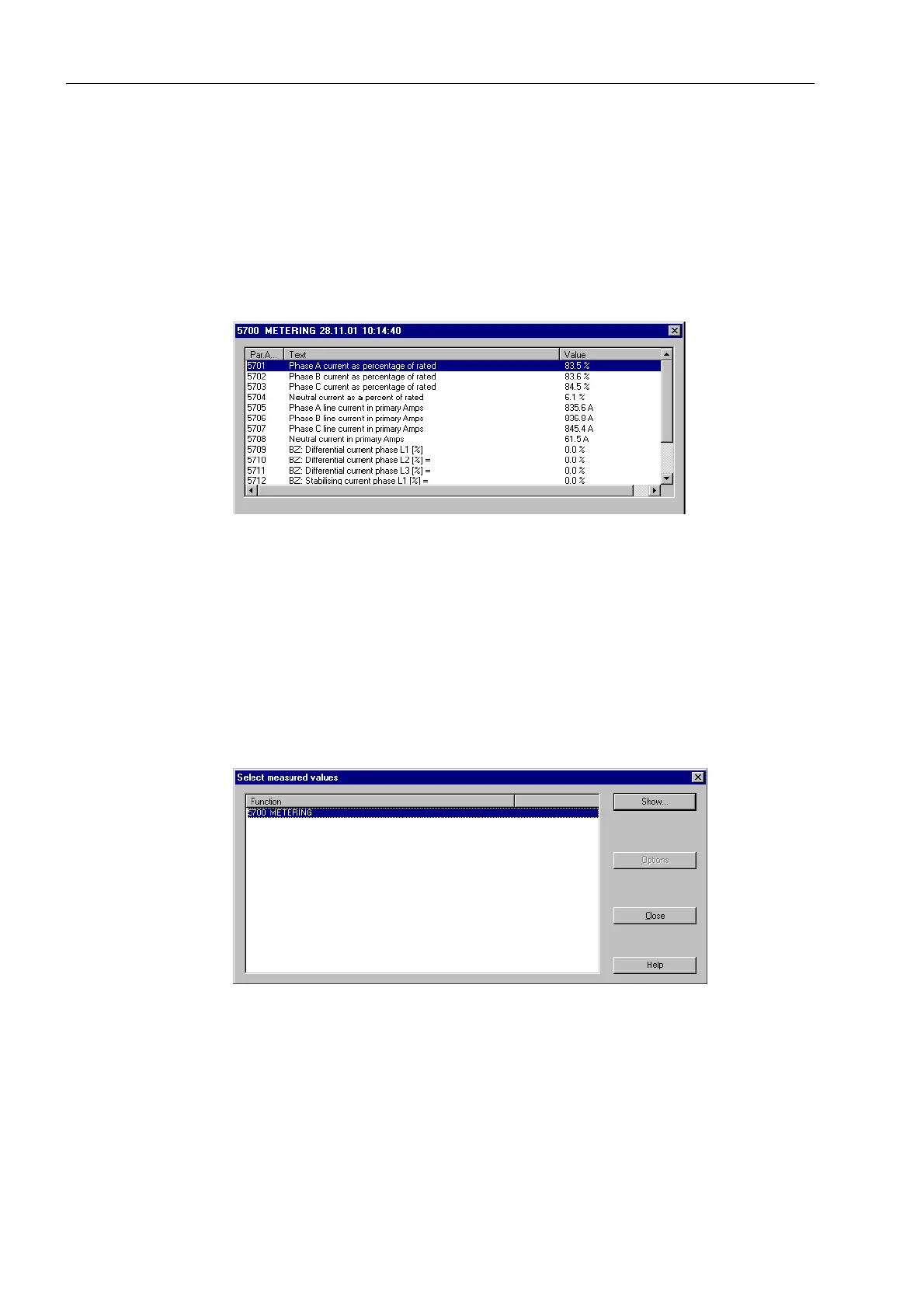

Figure 6-8 Metering window DIGSI − Example
To read out operational measured values of a single bay unit (PC linked to central unit
or bay unit) proceed as follows:
Open the corresponding bay unit in the DIGSI Manager.
Click Annunciations in the navigation window.
Double-click Measurement in the function selection. The Select measured values
window opens (Figure 6-9, page 214).
Click an entry in the list view and then click Show.... Upon that the corresponding
entry is displayed on another window (Figure 6-10, page 215).
Figure 6-9 Select measured values window in DIGSI
