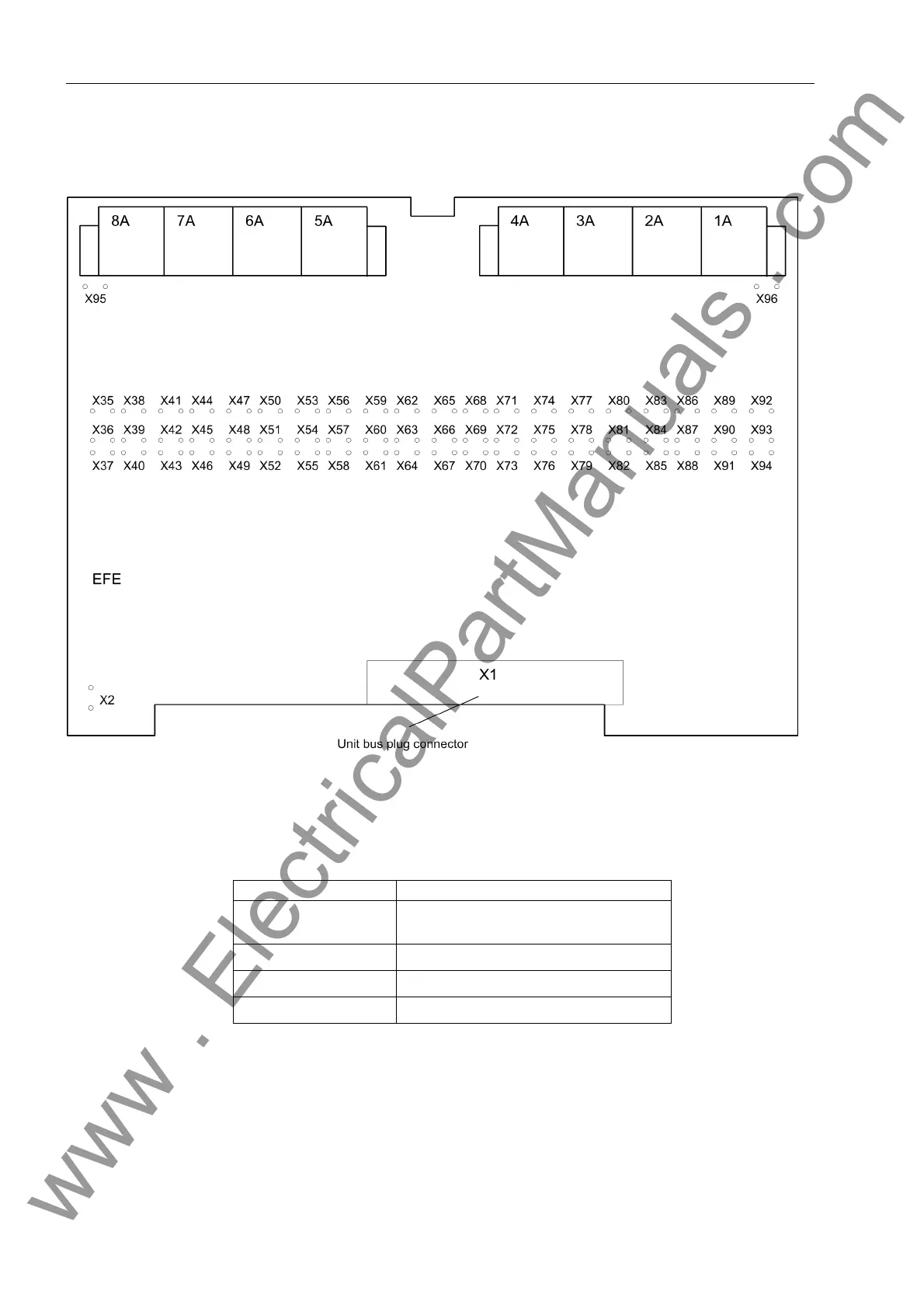

Appendix
360
7SS52 V4 Manual
C53000-G1176-C182-1
7120 OPER.1st L. Integrated Opera-
tion
IL1, IL2, IL3, IE
I-DIFF. L1, I-DIFF. L2,
I-DIFF. L3
I-RESTR. L1, I-RESTR.
L2, I-RESTR. L3
IL1 Display of measured values in the
1st line of the quiescent-state indi-
cation in 4-line mode
7121 OPER.1st L. Integrated Opera-
tion
PRIMARY
SECONDARY
NORMALISED
SECONDARY Display of measured values in the
1st line as primary or secondary
(percent) values
7122 OPER.2nd L. Integrated Opera-
tion
IL1, IL2, IL3, IE
I-DIFF. L1, I-DIFF. L2,
I-DIFF. L3
I-RESTR. L1, I-RESTR.
L2, I-RESTR. L3
IL2 Display of measured values in the
2nd line of the quiescent-state indi-
cation in 4-line mode
7123 OPER.2nd L. Integrated Opera-
tion
PRIMARY
SECONDARY
NORMALISED
SECONDARY Display of measured values in the
2nd line as primary or secondary
(percent) values
7124 OPER.3rd L. Integrated Opera-
tion
IL1, IL2, IL3, IE
I-DIFF. L1, I-DIFF. L2,
I-DIFF. L3
I-RESTR. L1, I-RESTR.
L2, I-RESTR. L3
IL3 Display of measured values in the
3rd line of the quiescent-state indi-
cation in 4-line mode
7125 OPER.3rd L. Integrated Opera-
tiong
PRIMARY
SECONDARY
NORMALISED
SECONDARY Display of measured values in the
3rd line as primary or secondary
(percent) values
7126 OPER.4th L. Integrated Opera-
tion
IL1, IL2, IL3, IE
I-DIFF. L1, I-DIFF. L2,
I-DIFF. L3
I-RESTR. L1, I-RESTR.
L2, I-RESTR. L3
IE Display of measured values in the
4th line of the quiescent-state indi-
cation in 4-line mode
7127 OPER.4th L. Integrated Opera-
tion
PRIMARY
SECONDARY
NORMALISED
SECONDARY Display of measured values in the
4th line as primary or secondary
(percent) values
7201 DEVICE ADD. PC/System Inter-
faces
1..254 Device address
7202 FEEDER ADD. PC/System Inter-
faces
1..254 Feeder address
7203 SUBST. ADD. PC/System Inter-
faces
1..254 Substation address
7208 FUNCT. TYPE PC/System Inter-
faces
1..254 160 Function type in accordance with
VDEW/ZVEI
7209 DEVICE TYPE PC/System Inter-
faces
0..255 194 Device type
7211 PC INTERF. PC/System Inter-
faces
DIGSI V3
ASCII
DIGSI V3 Data format for PC-interface
7215 PC BAUDRATE PC/System Inter-
faces
1200 BAUD
2400 BAUD
4800 BAUD
9600 BAUD
19200 BAUD
9600 BAUD Transmission baud rate for PC-in-
terface
7216 PC PARITY PC/System Inter-
faces
DIGSI V3
NO 2 STOP
NO 1 STOP
DIGSI V3 Parity and stop-bits for PC-interface
7221 SYS INTERF. PC/System Inter-
faces
VDEW COMPATIBLE
VDEW EXTENDED
DIGSI V3
DIGSI V3 Data format for system-interface
7222 SYS MEASUR. PC/System Inter-
faces
VDEW COMPATIBLE
VDEW EXTENDED
VDEW COMPATIBLE Measurement format for system-in-
terface
7227 SYS-SWITCH PC/System Inter-
faces
NO
YES
NO Online-switch VDEW-DIGSI ena-
bled
7235 SYS-PARAMET PC/System Inter-
faces
NO
YES
NO Parameterizing via system-inter-
face
