Getting started
32
Siemens Building Technologies
Fire Safety & Security Products 01.2008
1 Shows the current time and date
2 LEDs indicating the status of the alarm outputs
(see
Tab. 2)
3 Various status displays
(see
Tab. 3)
4 Indication of the free hard disk capacity
(see
Fig. 11)
Tab. 1 Sections of the SISTORE MX system information

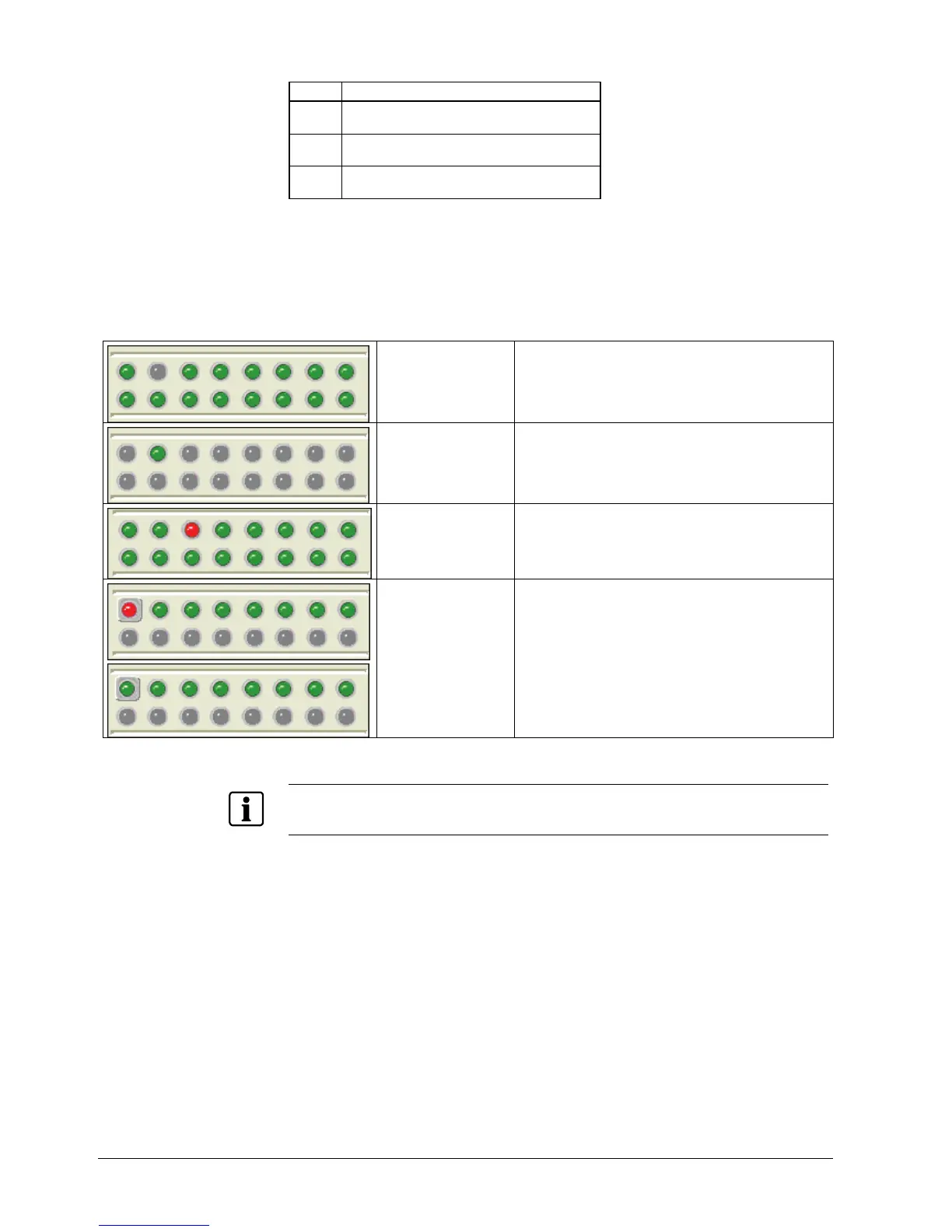

LEDs indicating the status of the alarm outputs
There is one status LED for each of the 16 alarm outputs. The meaning of the
status LEDs is as follows:
Grey
(top row, 2nd from left)
The alarm output is not configured and is not being used.
Green
(top row, 2nd from left)
The alarm output is inactive.
Red
(top row, 3rd from left)
The alarm output is active.
Red/Green surrounded
by a rectangular field
(top row, 1st from left):
This alarm output can be activated or deactivated by the
user manually.
Red means that the alarm output is currently active.
Green indicates inactive status.
Tab. 2 Meaning of the LEDs indicating the status of the alarm outputs
NOTE
For information on the configuration of the alarm outputs please refer to the SISTORE MX
Configuration Manual.
If the mouse indicator rests on a status LED, a popup Quickinfo shows the name of
the alarm output.
