Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019

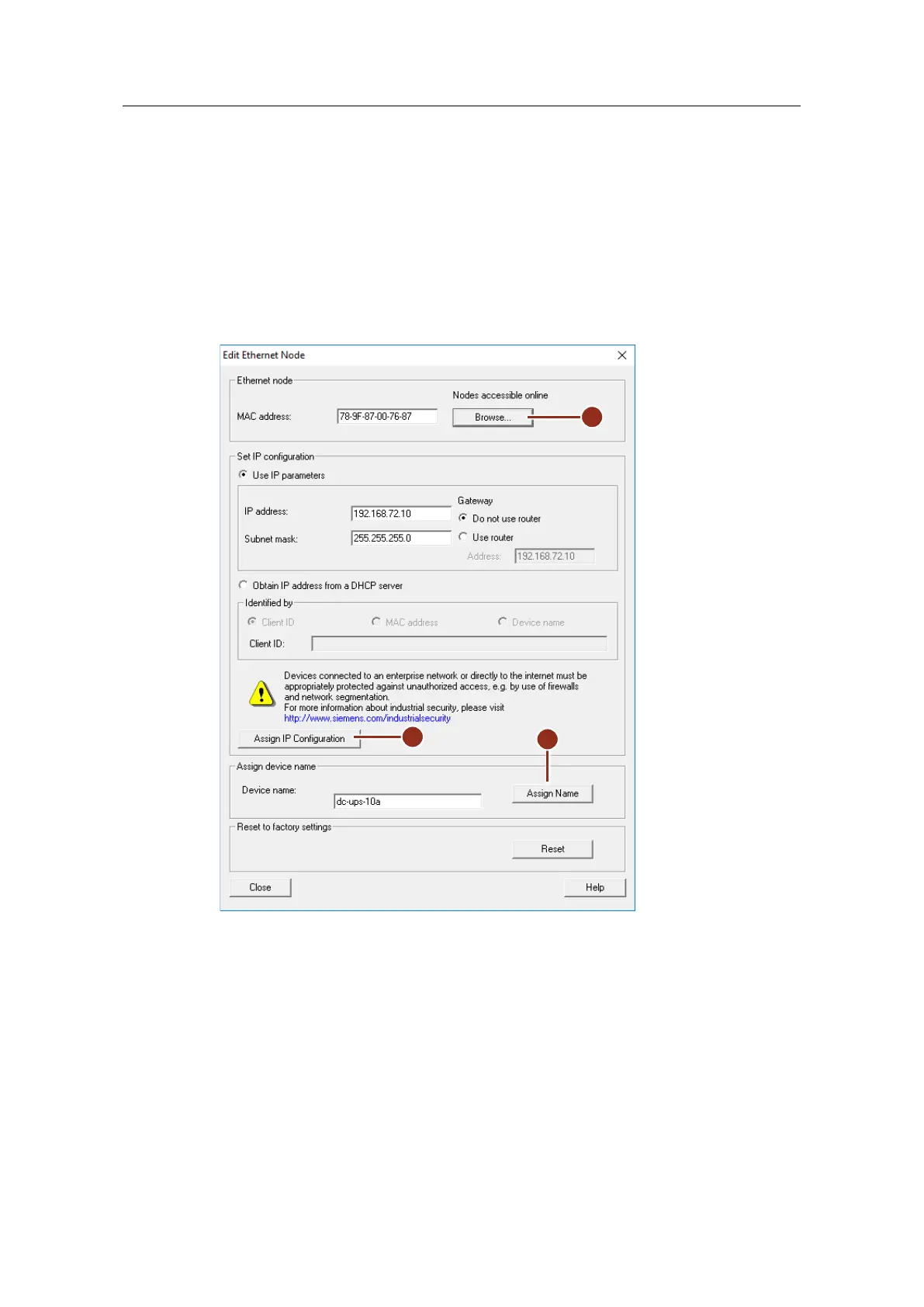

3. In the "Edit Ethernet Node" dialog, click on the "Browse" pushbutton (1) in the
"Ethernet Node" area.
4. In the "Browse Network" dialog, choose the UPS1600 from the list of nodes
and click on "OK" to confirm your selection.
5. Edit the IP address to match your network configuration and click on the
"Assign IP Configuration" pushbutton (2).
6. Edit the device name and click on the "Assign Name" pushbutton (3).
7. Close the dialog again.
Figure 5-2
