Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
Setting the SITOP UPS1600 parameters
You can set the hardware parameters of the UPS1600 in the HW configuration too.
You can find more detailed information on the different parameters in the manual
entitled SITOP UPS1600 / UPS1100.
Proceed as follows:
1. Select the DC UPS (1) in the hardware configuration.
2. Open the properties of the "UPS1600 xxA PN" module (2) on slot 0.1 by
double-clicking.
3. Switch to the "Parameters" tab.
4. Set the parameters (3) as required here.
5. Compile and load the hardware configuration.

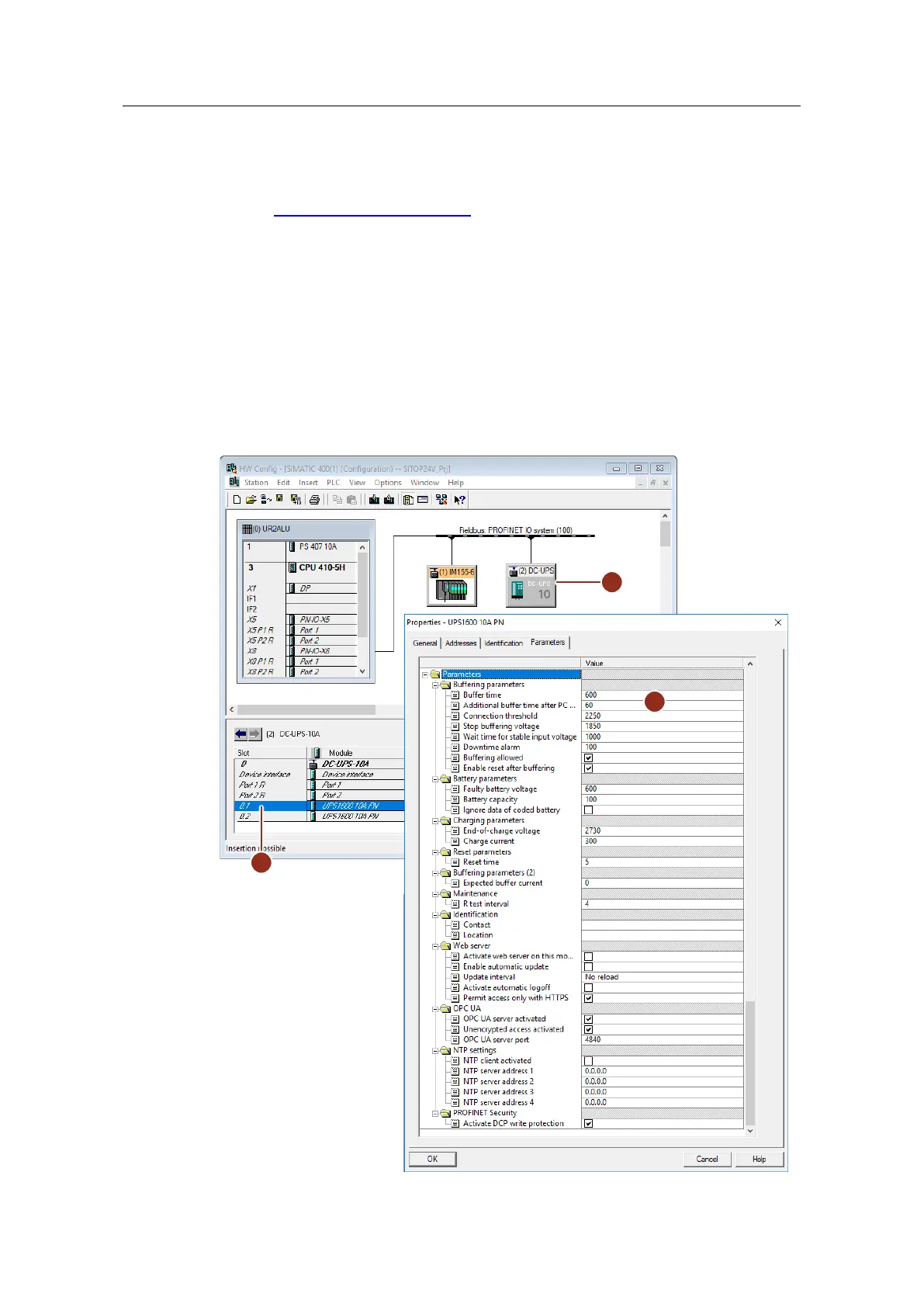

Figure 5-4
