■ Dimensional drawings

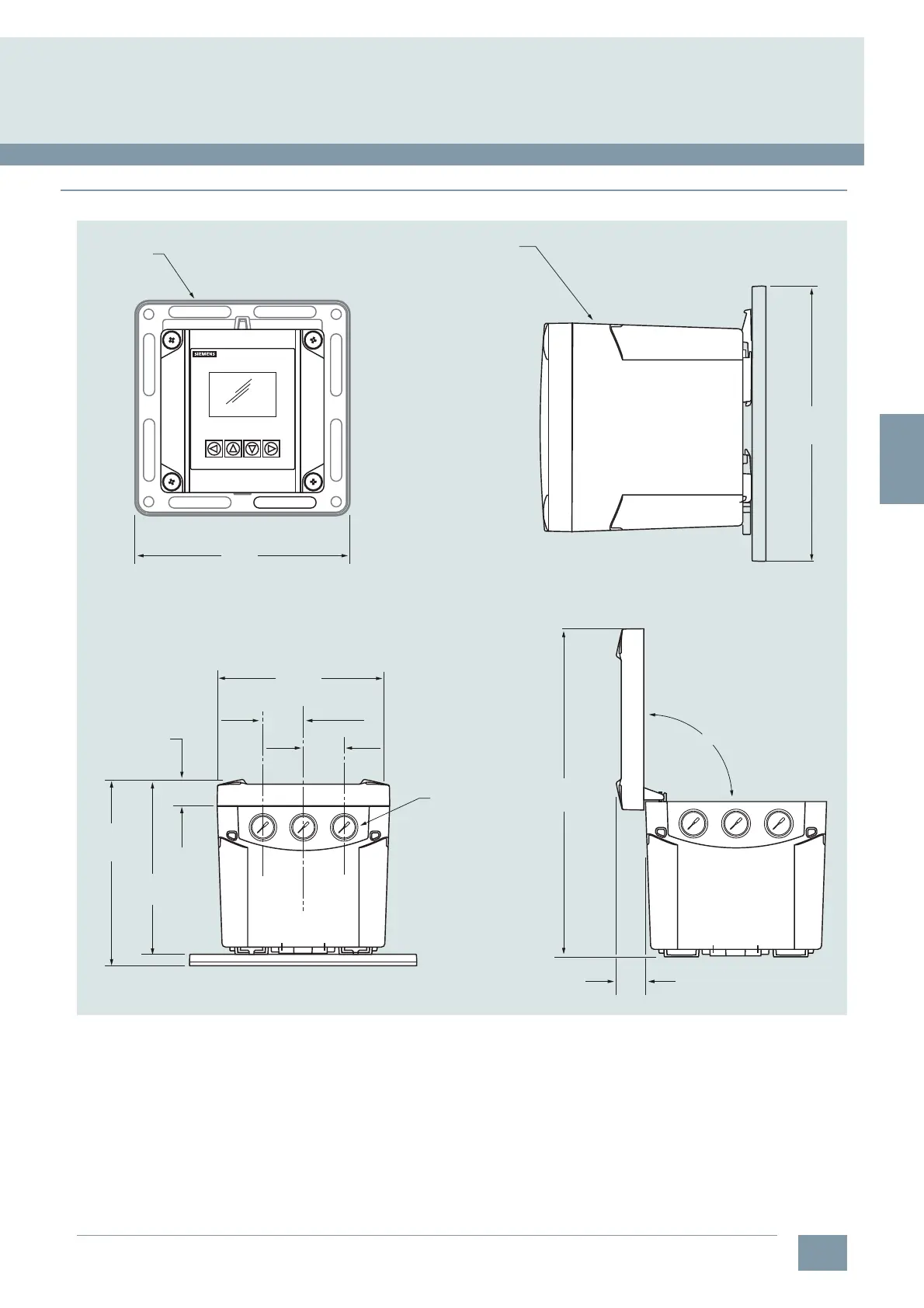

SITRANS LUT400, dimensions in mm (inch)
SITRANS LUT400
Back
mount
bracket
Enclosure
Cable entry
(3 places)
190
(7.5)
198
(7.8)
98°
259
(10.2)
45
(1.2)
144
(5.7)
34
(1.34)
33
(1.34)
22
(0.87)
155
(6.10)
146
(5.75)
