Simplex 4002 User Manual

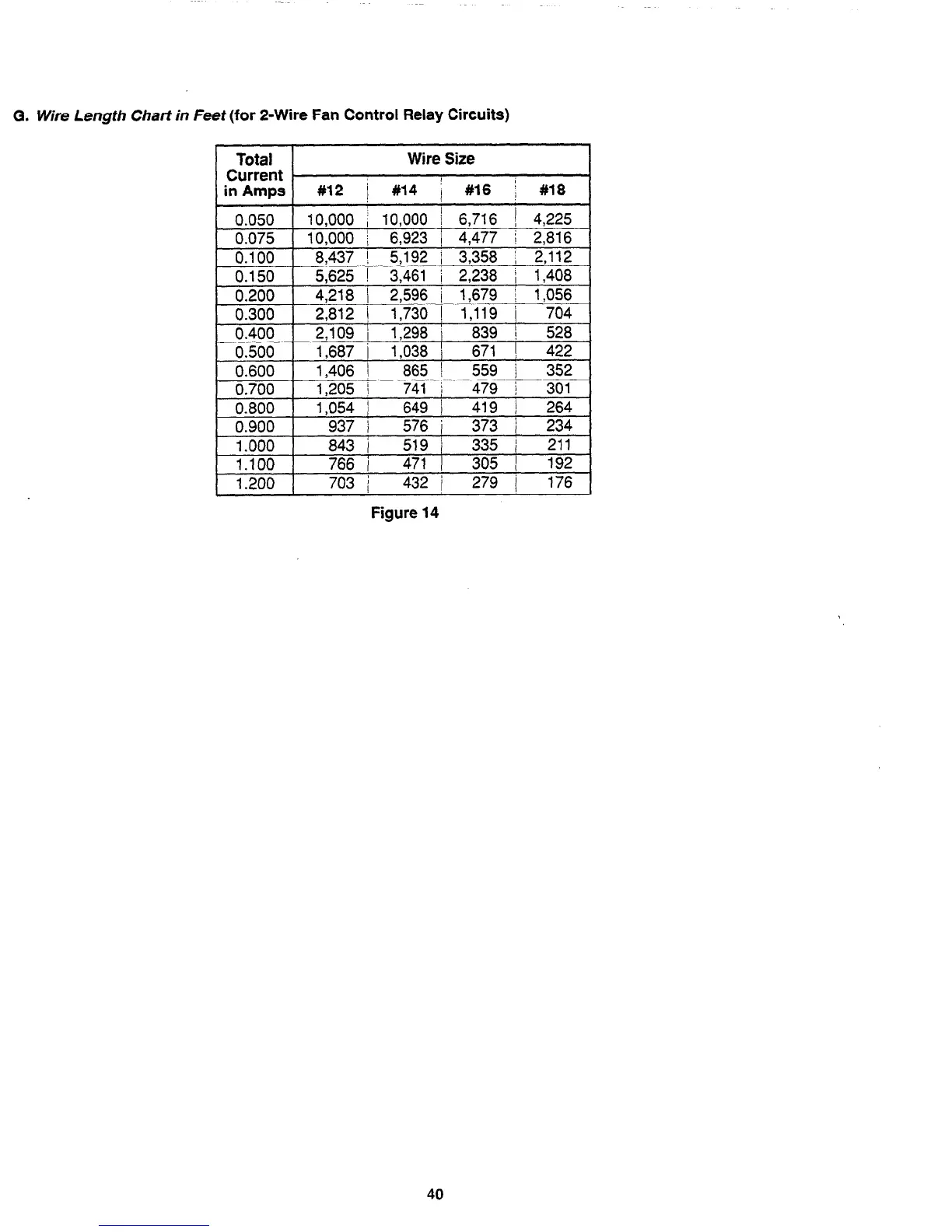

G. Wire Length Chart in Feet (for a-Wire Fan Control Relay Circuits)
Total
Wire Size
Current .
in Amps
#12 i
#I4
/ #16 ; #18
0.050 10,000 i 10,000
j 6,716 / 4,225
0.075 10,000 j 6,923
! 4,477 i 2,816
0.100 8,437 ! 5,192
/ 3,358 : 2,112
0.150 5,625 ! 3,461
; 2,238 i 1,408
0.200 4,218 / 2,596
j 1,679 : 1,056
0.300 2,812 ! 1,730
! 1,119 j 704
0.400 2,109 / 1,298
i 839 j 528
0.500 1,687 i 1,038
; 671 1 422
0.600 1.406 (
865 \ 559 i 352
0.700 11205 i
741 j 479 j 301
0.800 1,054 /
649 1 419 j 264
0.900 937 /
576 i 373 / 234
1.000 843 /
519 / 335 j 211
1.100 766 i
471 I 305 I 192
1.200 703 1
432 i 279 i 176
I
I
Figure 14
40
Technical Manuals Online! - http://www.tech-man.com

Simplex 4002 Specifications

General

Voltage	24 VDC
Temperature Range	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Interconnect Capability	Yes
Compliance	UL
