1. The current allowance per device on the loop is 0.5mA with the LED off, 2mA with
the LED on. A maximum of 20 LEDs will be turned on at any time by the IDNet
Card, e.g. in alarm.
2. The minimum voltage allowed at the furthest device to guarantee operation is
24.9Vdc. The IDNet boosts its output voltage from 30V to 35V during alarm.
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 25 50 75 100 125 150 175 200 225 250
Number of Devices on Loop
Maximum Cable Distance (metres)
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0.75 sq.mm
1.0 sq.mm
1.5 s
q
.mm
2.5 sq.mm
4.0 sq.mm

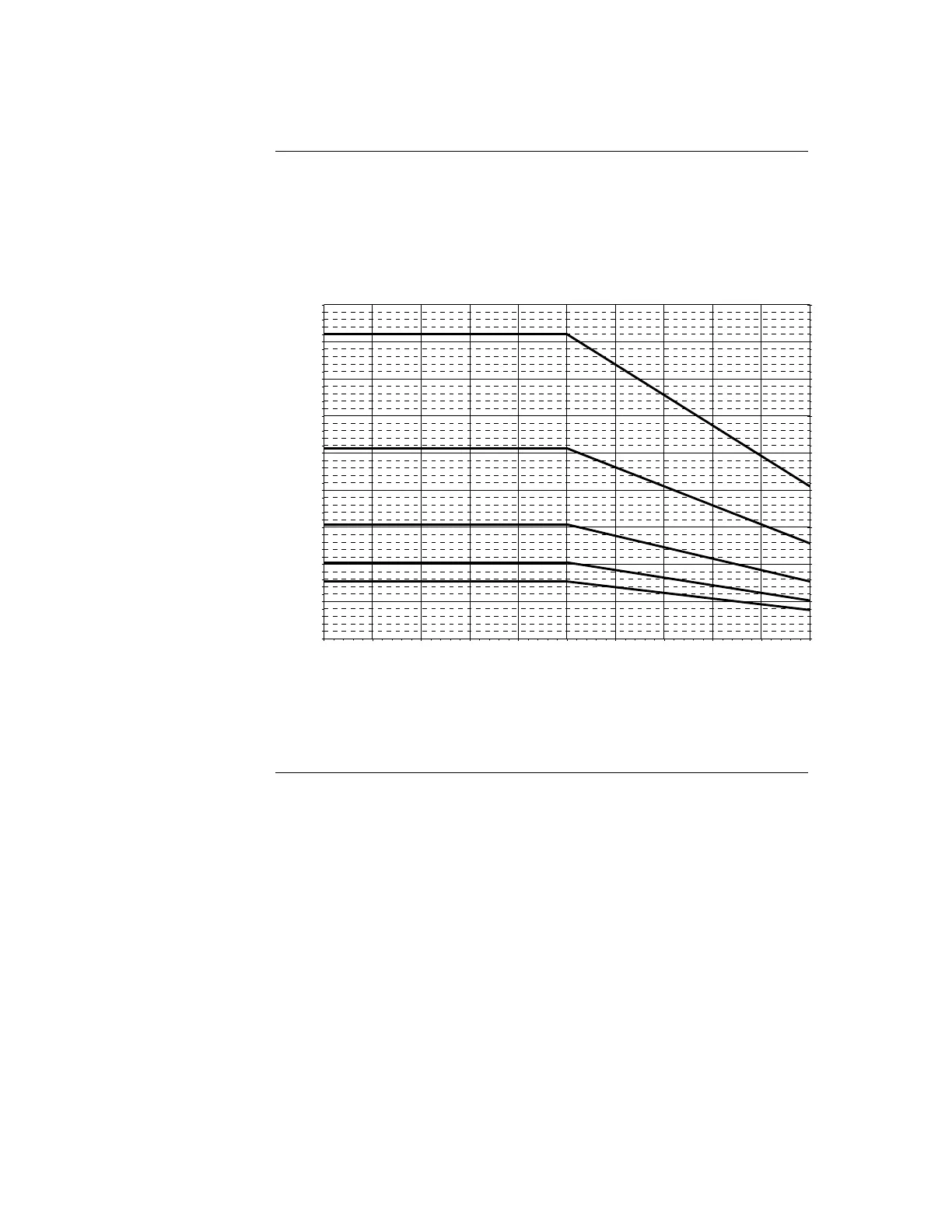

Figure 7-2. Cable Distance & Device Limits for Common Cable Sizes
Note: Cable distance refers to the full distance around the loop (Class A), or the distance
from the panel to the furthest end of the cable run (Class B).
Continued on next page
Wiring to IDNet Devices, Continued
Notes

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
