The CPU Card (see Figure 2-2) mounts onto the master motherboard. The CPU card

contains an Ethernet service port, an LCD user interface connection, and a serial port for a

service modem.

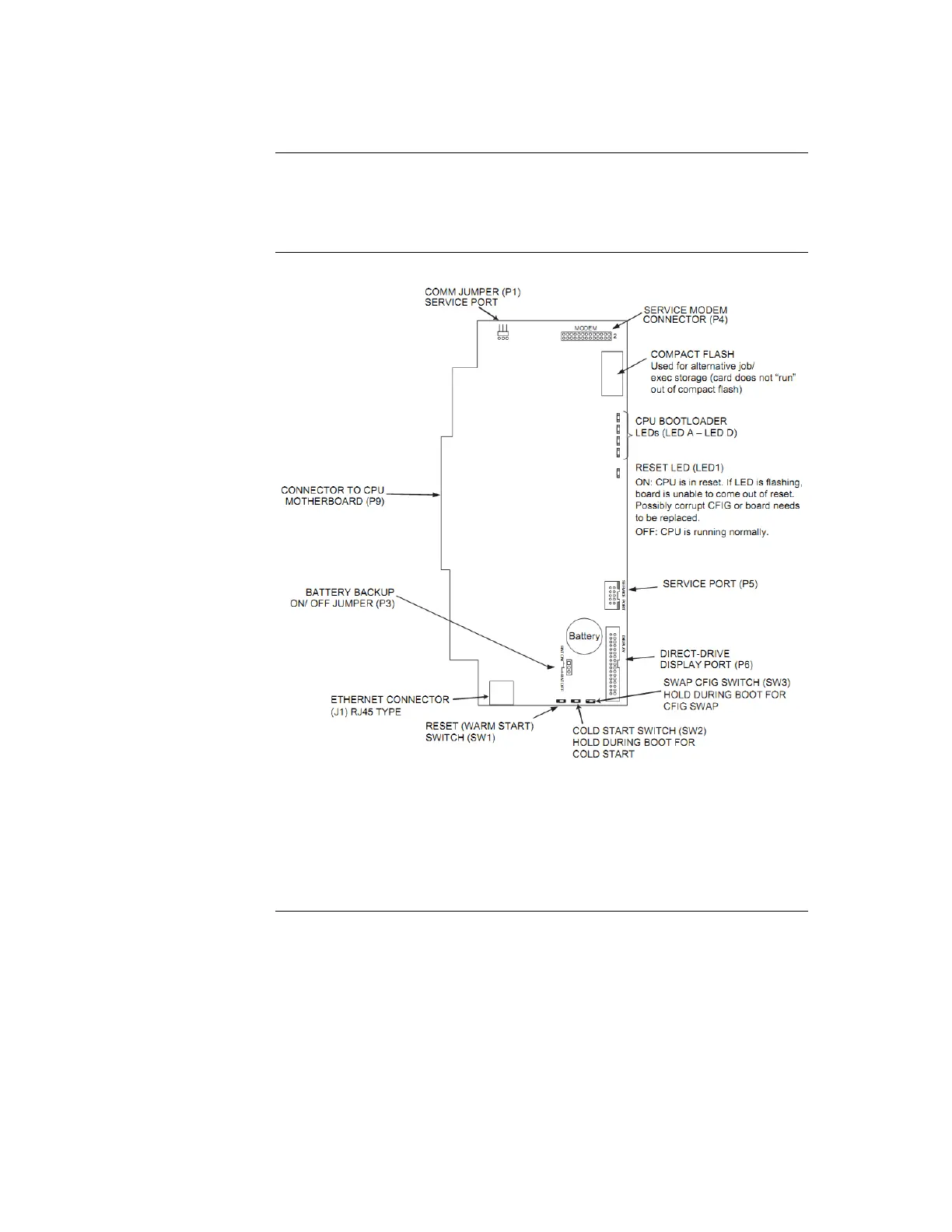

Figure 2-2. CPU Card (566-719)

The master motherboard is also commonly used to mount the Network Interface Card

(NIC), for 4100 networking operations. The NIC can be installed with the 4100-6056

Wired Media Card and/or the 4100-6057 Fiber Media Card.

Continued on next page

Introduction to FIPs (4100ES), Continued

CPU Card

Additional Modules

Other manuals for Simplex 4100ES

Questions and Answers:

Need help?

Do you have a question about the Simplex 4100ES and is the answer not in the manual?

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
