Simplex 4100ES Installation & Maintenance

2-3
The 4100ES Master motherboard (see Figure 2-1) that mounts the CPU card is central to
the 4100ES system.
{xe "CPU motherboard: about"}{xe "4100U: CPU motherboard"}

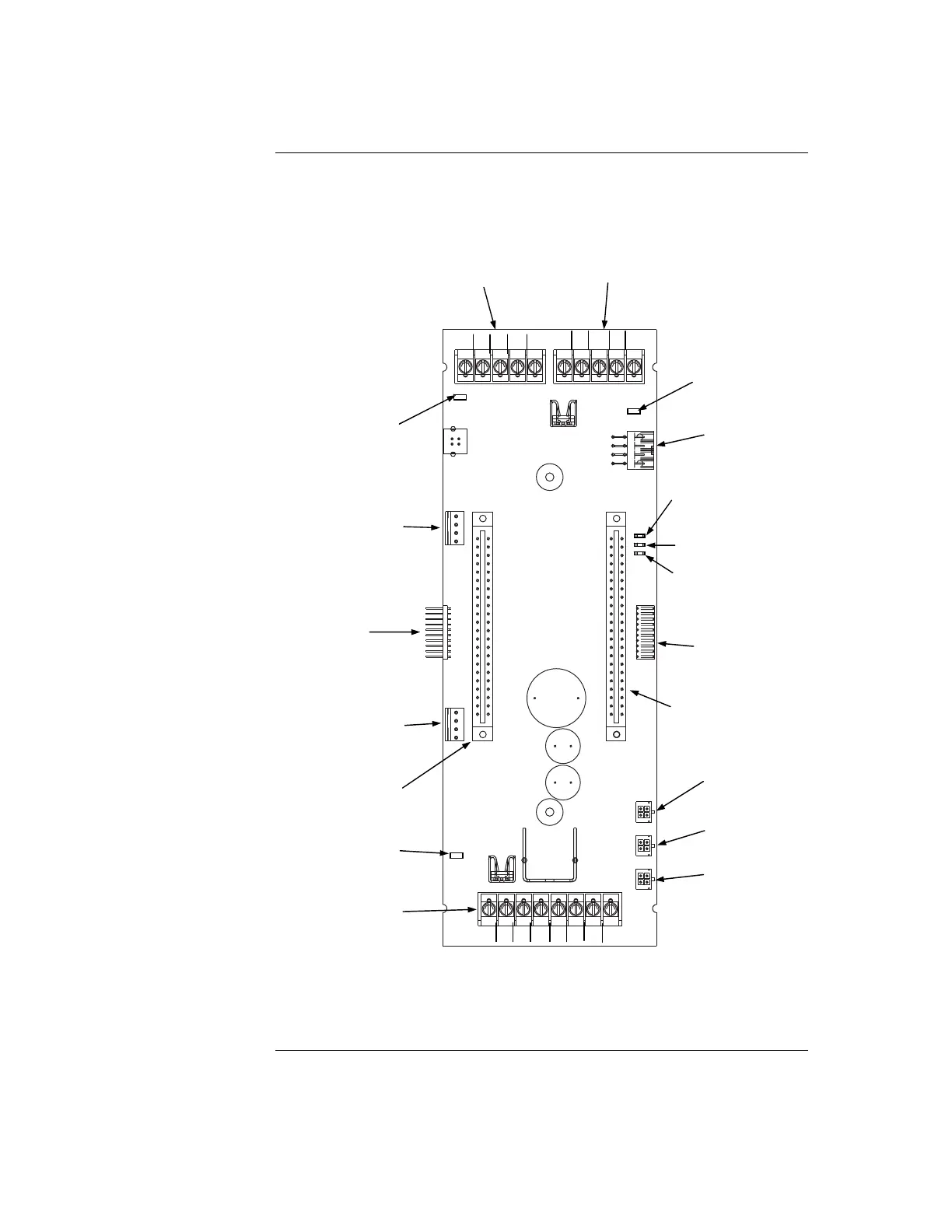

Figure 2-1. Master Motherboard (566-227)
Continued on next page
Introduction to FIPs (4100ES), Continued
Master Motherboard
RUI TERMINAL BLOCK (TB2)
NETWORK WIRED MEDIA/ RS-232
TERMINAL BLOCK (TB3)
POWER/COMM TO
SYSTEM POWER
SUPPLY (P1)
RUI CLASS A
TROUBLE (LED1)
RUI PRIMARY SHORT
TROUBLE (LED2)
RUI SECONDARY
SHORT TROUBLE
(LED3)
BUS CONNECTOR
(J1) (Reserved for
future use)
POWER/COMMS TO
ADJACENT BAY (P4)
POWER/COMMS TO
ADJACENT BAY (P5)
POWER/COMMS TO
ADJACENT BAY (P6)
NETWORK WIRED MEDIA/ RS-232
TERMINAL BLOCK (TB1)
HEADER CONNECTOR TO
OPTION MOTHERBOARD
(P3)
CPU DAUGHTER CARD
CONNECTOR (J3)
POWER CONNECTOR TO
OPTION MOTHERBOARD
(P7)
COMMS CONNECTOR TO
OPTION MOTHERBOARD
(P8)
NETWORK DAUGHTER CARD
CONNECTOR
(J2)
RUI COMM
EARTH SHIELD
JUMPER (P9)
RS-232/NETWORK
CARD PORT 1
JUMPER (P10)
RS-232/NETWORK
CARD PORT 2
JUMPER (P11)
XMIT RTS RCV CTS GND
RUI RUI SHLD RUI RUI
B+ B-
A
+
A
-
1
1
5 5
XMIT RTS RCV CTS GND 24C RSRVD
PIEZO
1
8

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
